Discontinued | Non-Grounding Combination Switches | Sub 696G

  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 275ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

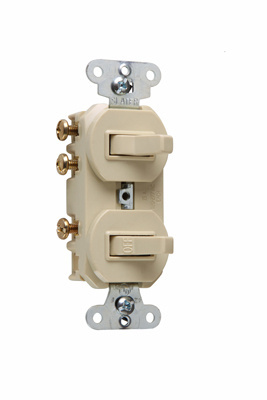

Single Pole, Three-way Combination Switch, 15 amps, 120/277 volts, Ivory.
Color Brown
WHERE TO BUY

Features

  • Easily accessible break-off separate or common feed.
  • Long-life red neon lamp in pilot light rated 1/25 Watt, 125V.
  • Side wire #12 and #14 AWG.
  • Two devices fit into the space of one.
  • Grounding combination devices meet NEC Requirements.
  • Tamper-resistant version features dual mechanical shutter system to help prevent insertion of foreign objects.
  • For covering patents, see www.legrand.us/patents.

Specifications

General Info
Color Brown
UPC Number 785007696004
Country Of Origin Mexico
Product Line Pass & Seymour
Application Sector Residential/Commercial
Standard UL20
Listing Agencies / 3rd Party Agencies
cULus Listed  Yes
cULus ListingNumber  140597
Technical Information
Voltage 0.43321299639 V
Actuator Toggle
Contact Configuration N-O
Connection Side wire, non-grounding
Contact Rating 15 Amp, 120/277 VAC
Action (1) SP & (1) 3W
Environmental Conditions Flammability: UL94 V2
Operating Cycles 30000

Resources

Reviews

  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 80ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

Questions & Answers

Can the 3-way switch be wired to function like a single pole switch?

Asked by: Johneo69
Yes, you only connect the LOAD wire to one brass terminal and leave the other traveler wire terminal blank.
Answered by: Legrand Technical Support
Date published: 2019-11-01
