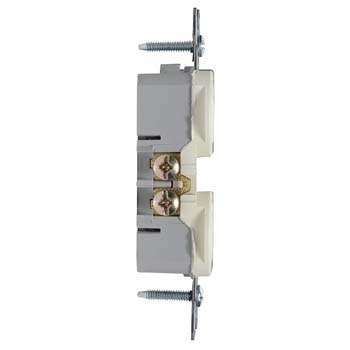

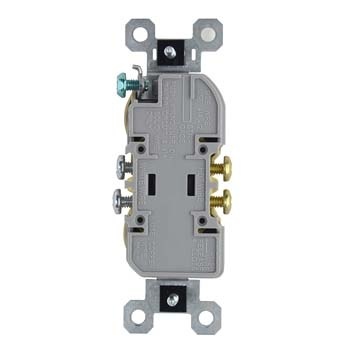

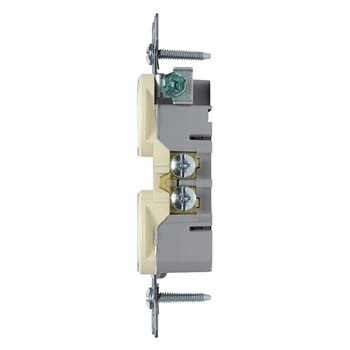

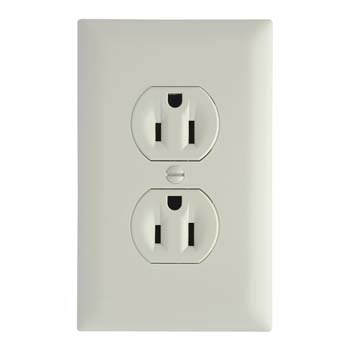

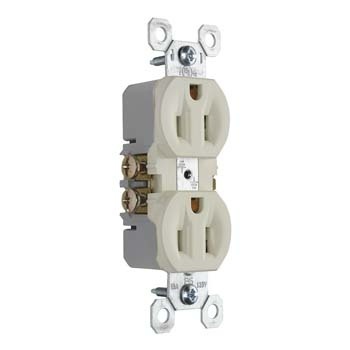

15A/125V Trademaster® Duplex Receptacle, Light Almond

  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 27ms
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

Our Pass and Seymour Trademaster® receptacles combine a traditional look with reliable, time-tested operation for any residential application.

Color Light Almond


  • Durable, high-quality contruction
  • Rated 15 amperes
  • 125-volt outlet


General Info
Product Line Pass & Seymour
UPC Number 785007323221
Country Of Origin China
Application Sector Residential/Commercial
Standard UL 498
Additional Information
Product Environmental Profile Yes
Listing Agencies / 3rd Party Agencies
cULus ListingNumber  140596
cULus Listed  Yes
Technical Information
Connection Grounding
Number of Wires 3
Number of Poles Double Pole
Wire Size #12 to #14 AWG (solid wire)
Voltage 125 V


  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 13ms
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

Questions & Answers

Our your receptacles tested to withstand higher than nominal voltage ratings? If so, is there a particular standard and what is the max withstand rating for a 125V receptacle. Thanks.

Asked by: Andrew
All receptacles listed to UL 498 are required to withstand a voltage application higher than the rated voltage. This is called a dielectric test. The voltage level that a receptacle must withstand for one minute are shown below. 2000V for devices rated 300V or less. 3000V for devices rated greater than 300V. Please note this does not mean that a receptacle can be continuously operated at these voltages. A receptacle should never be connected to a voltage source with a voltage greater than the marked rating.
Answered by: Legrand Technical Support
Date published: 2020-01-09
