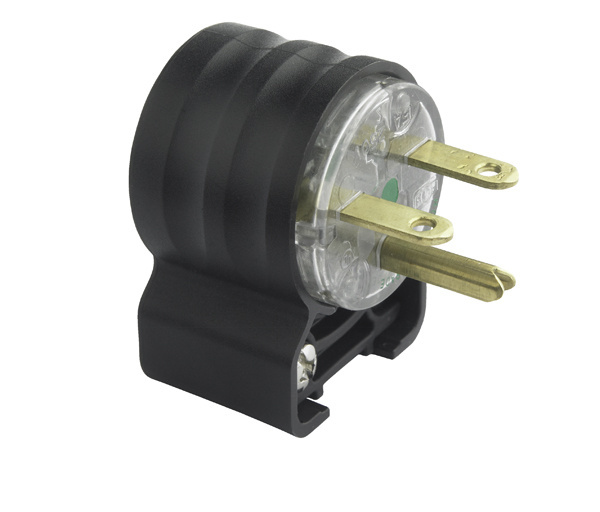

20A, 250V Extra-Hard Use Hospital-Grade Angled Plug, Black & Clear

PS5466HGAN Pass & Seymour
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 141ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

STR BLD ANGLE PLUG 3W 20A 250V HG
Color Black

Features

  • Angle plugs and adapters both allow for 4-position face rotation.
  • Tri-drive assembly and cord-grip screws are standard on all angle adapters.
  • Angle adapter (sold separately as catalog number EHU15AN) will accommodate all Pass & Seymour EHU-style Straight Blade plugs and connectors on a retrofit basis. Simply remove the straight handle body from the plug or connector face assembly, and replace with the angle adapter.
  • For covering patents, see www.legrand.us/patents.

Specifications

General Info
Color Black
UPC Number 785007236828
Countries Of Origin Mexico
Product Line Pass & Seymour
Application Sector Commercial
Type Straight Blade
Standard UL 498
Listing Agencies / 3rd Party Agencies
cULus Listed  Yes
cULus ListingNumber  146159
Technical Information
Number of Poles Double Pole
Voltage 250 V
Wire Size 10-18Awg
Number of Wires 3
