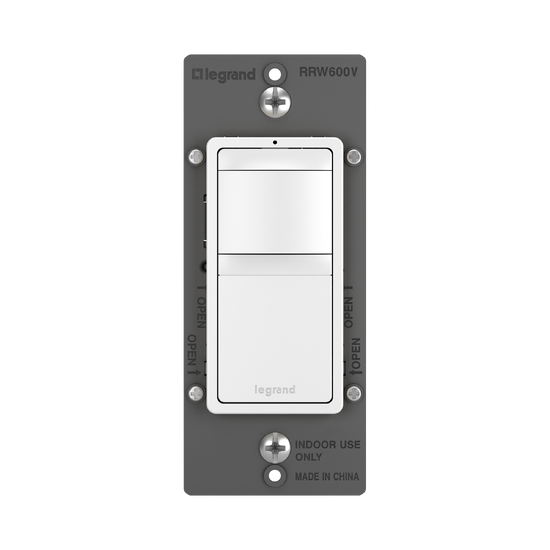

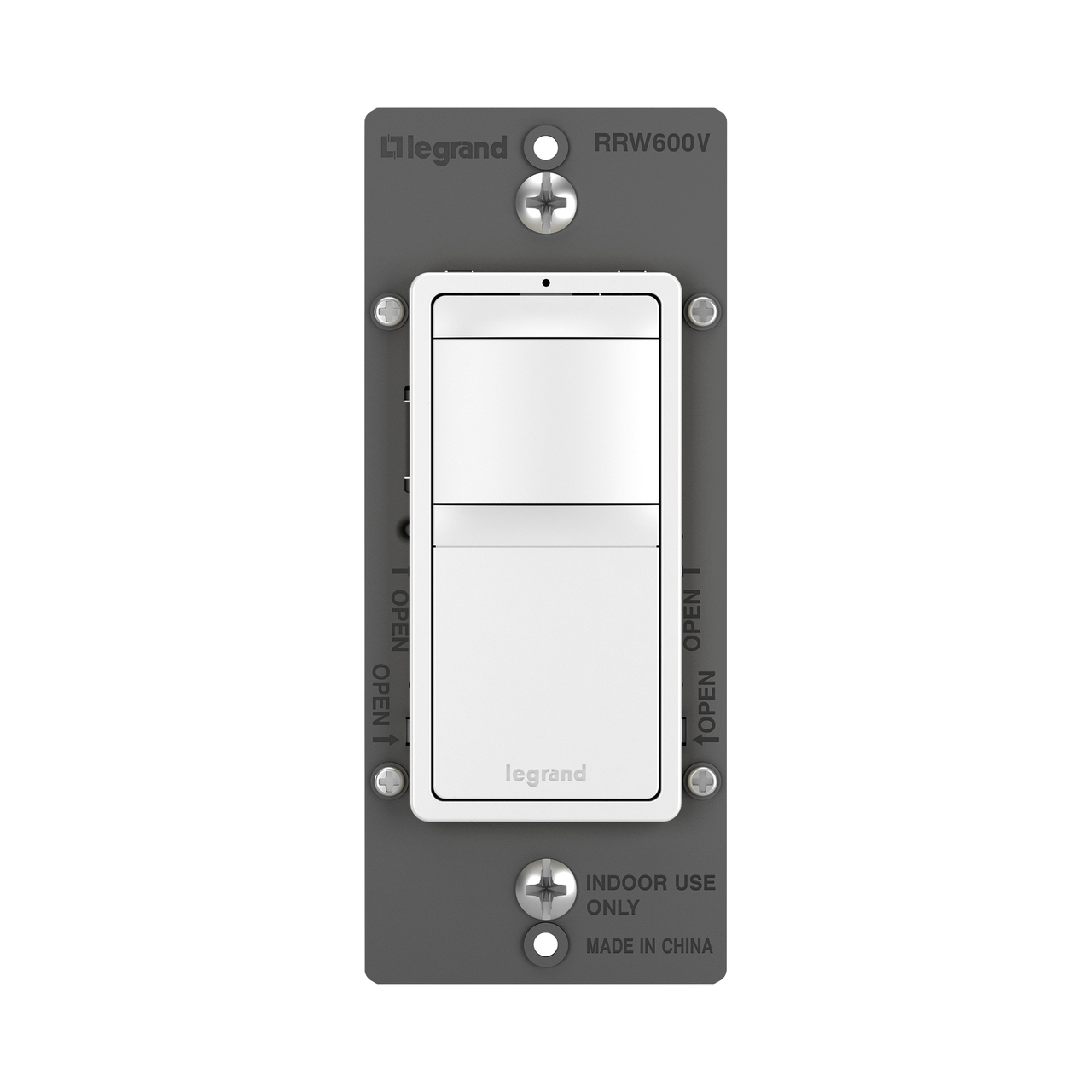

radiant® Single-Pole 3-Way Vacancy Sensor, White
RRW600VW
radiant Collection
Bazaarvoice SAP Hybris Integration Version 2.8.1
Never worry about leaving the lights on, with the radiant® Vacancy Sensor. It automatically shuts off when a room is empty, and includes an adjustable delay setting of up to 20 minutes to match your needs. Designed for ease and style, it features a built-in locator light, and the sleek, clean lines of radiant® for a sophisticated touch. Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.
- Send
- Save as PDF
-
Added to Favorites Go to favoritesRemove from favorites?Something went wrong. Please try again later.
Features
- Passive infrared (PIR) sensor switch technology with 180° coverage up to 600 sq. ft. Rated for up to 600W (5A) of LED lighting.
- Works with virtually any bulb/fixture, including: LED, incandescent, fluorescent, compact fluorescent (CFL), magnetic low-voltage (MLV) and electronic low-voltage (ELV), 1/6 hp.
- Turn the light on when you enter, and let it turn itself off automatically after you leave for true convenience. Perfect for bathrooms, hallways, closets, garages, and more.
- Locator light illuminates when switch is off, emitting a soft glow to help you find it in the dark.
- Features an adjustable time delay to off after no motion is detected. Delay settings range from 30 seconds to 20 minutes after the room is vacated (default 20 minute delay).
- Manual ON/Auto OFF functionality. Meets California Title 24 requirements for automatic off lighting control.
- Replace any basic light or fan switch in 15 minutes or less. Supports single pole and multi-location installs. No neutral required.
- Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.
- More color options available to fit any style, including finishes to match current hardware and lighting trends.
Specifications
General Info
| Product Line | Pass & Seymour | ||
| Color | White | ||
| UPC Number | 785007445794 | ||
| Country Of Origin | China | ||
| Features | Motion Sensor | ||
| Switch Type | Motion Sensor | ||
| Application Sector | Residential |
Dimensions
| Product Width US | 1.69 in | ||
| Product Depth US | 1.88 in | ||
| Product Height US | 2.63 in |
Listing Agencies / 3rd Party Agencies
| cULus Listed | Yes |
Technical Information
| Target Size | 180 deg | ||
| Sensor Type | Occupancy | ||
| Amperage | 5 A | ||
| Number of Poles | Single Pole | ||
| Wattage | 600 W | ||
| Mounting Type | Box | ||
| Sensitivity | 60Hz | ||
| Load | 120VAC |
Resources
Supporting Document
Installation Instructions
Guide Form Specifications
Sell Sheet
Brochure
