How Innovative Wiring Devices Help Reduce Over-Torquing and Drill Slippage
On every electrical job, success depends on worker safety and quality connection points. However, relying on power tools can lead to unnecessary risks. For instance, a common mistake is drill slippage, where the fast-spinning bit pops out. It can cause painful cuts and punctures or damage finished surfaces like drywall. Another concern is over-torquing, which occurs when excessive force is applied to a terminal screw, causing the device to break, strip or develop stressed connections.
These mechanical failures have major consequences. For contracting firms, hand injuries from a drill slipping can result in increased workers' compensation claims and significant project delays. Over-torqued connections can fail later and lead to expensive rework and liability concerns. In addition, regulatory mandates like NEC 110.14(D) require contractors to prove they use calibrated tools to tighten connections correctly, which can avoid errors that shift focus away from the job.

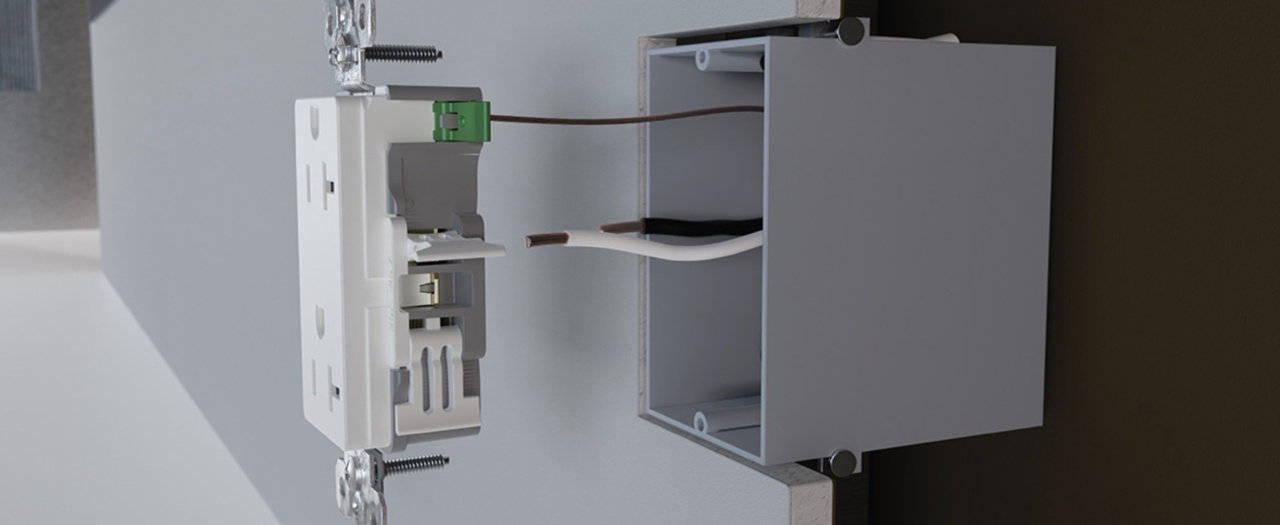

This is where innovative products like the Legrand PowerHold™ Receptacle Device come in to help. PowerHold addresses the growing demand for faster and more efficient electrical installations for light commercial, hospitality, multi-dwelling unit and prefabrication environments. Let’s discuss how PowerHold can help contractors.
Increased Efficiency
Traditional wiring methods require expensive, specialized tools that must be regularly sent out for calibration — a process that often takes tools off the job site and costs money. Tool-free devices rely on a built-in design instead of a calibrated tool.
When a contractor secures the wire using only their hands, the force applied is limited to a safe level instead of high pressure that drills can cause. The PowerHold product makes an audible snap when the connection is fully closed. This instant feedback immediately tells the contractor that the wire is secure — no guessing is needed.
This precision is critical because over-tightening can cause the device to fail. If contractors tighten the connection too much, the wire's soft metal gets squeezed out of the clamping area when it heats up. Once the wire cools down, that material doesn't go back, making the connection weak and loose. Loose connections can be dangerous because they emit too much heat.
Zero-Risk Connections
Choosing products built for hand control eliminates the danger of a fast-spinning drill slipping and causing injury. The PowerHold design makes the process easy and safe. It features large, flared levers that are simple to grab and move, so contractors need less effort to close the connection. These larger levers are designed for easy operation even while wearing protective gloves.
Eliminating the repetitive twisting motion associated with screwdrivers reduces the risk of repetitive strain injuries or musculoskeletal disorders in the wrist and forearm, helping improve the long-term health and retention of skilled labor. Picture a crew installing hundreds of receptacles in a high-rise residential unit. For a mid-sized firm, eliminating two serious hand injuries a year due to drill slippage could save tens of thousands of dollars in direct medical and legal costs, plus the costs of maintaining a strong safety record1.
Maximum Efficiency and Reduced Cost
Beyond improving safety, eliminating the need for multiple tools is a big efficiency gain. It removes the mechanical variables that slow contractors down, like the need to stop and calibrate a tool. This simple adjustment is a game-changer.
The PowerHold device is significantly faster than conventional methods, allowing contractors to create secure connections in 10 seconds or less. Imagine if a contract firm is working on wiring 5,000 devices for a multi-family dwelling. A conventional screw terminal takes roughly 60 seconds to correctly terminate. But using a PowerHold device, the crew could save 50 seconds per device, which translates roughly to more than 69 hours of pure labor time saved on that project.
Easy To Use in Challenging Environments
Eliminating the need for multiple tools simplifies the entire wiring process, especially for installations in tight spots. For example, in the fast-paced prefabrication environment, the color-coded levers act as an immediate visual check, cutting down the time spent verifying wire placement. The compact design of PowerHold is especially useful when dealing with shallow outlet boxes common in older buildings or when managing the large bundle of thick wires (like 10 or 12 gauge) required for multiple devices in one box, preventing the frustration of jamming wires that normally doubles the installation time in tight spaces.
To properly align every connection, strip guides are also built right into the receptacle device. This ensures that the wire is inserted correctly every time, boosting reliability and creating cleaner connections by stopping stray pieces of coating from fouling the contact points.
By removing the need for power tools, these innovative wiring devices can have big benefits to those working in the electrical industry: fewer injuries and consistently higher-quality work.
1Source: Understanding the Multilayered Cost of Workplace Injuries - JobSiteCare accessed November 4, 2025 https://jobsitecare.com/blog/cost-of-workplace-injuries/#:~:text=a%20Workplace%20Injury-,Direct%20Costs,injured%20worker%20or%20their%20family
