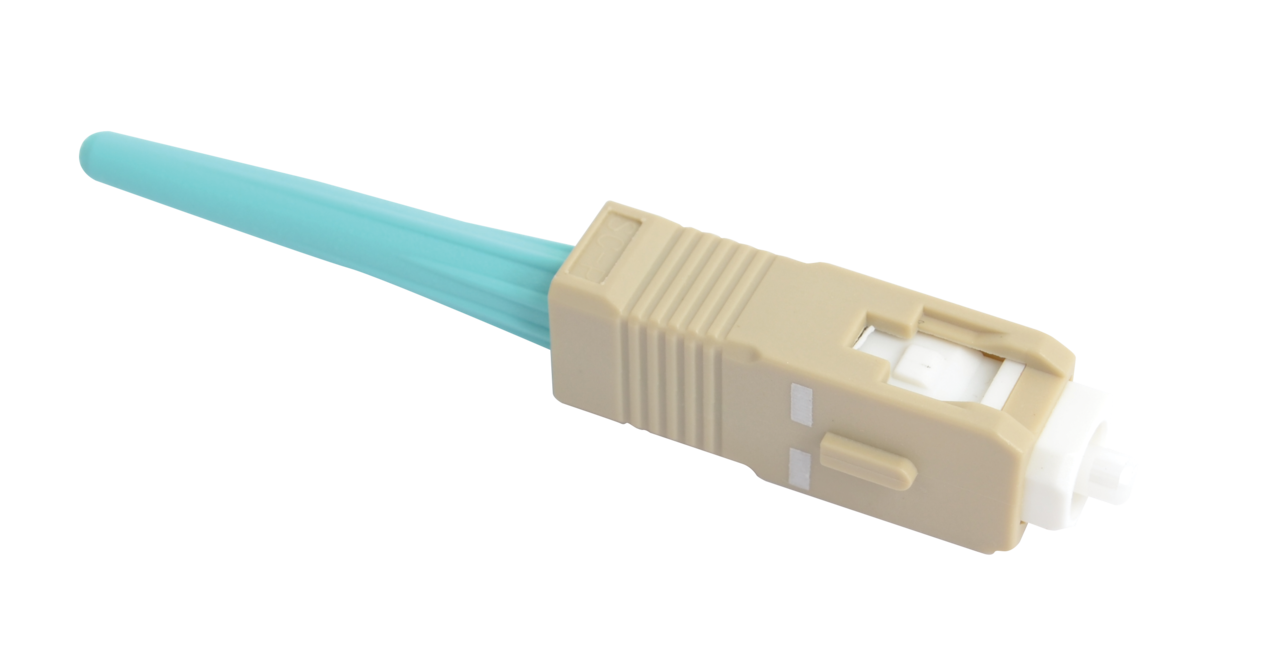

Fusion Splice-On Connector, SC, OM3, aqua 900 micron boot, 6 pk

205KNF9FA-50T Ortronics
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 20ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

''

Splice-On Connector SC PC OM3

Cable Type 900 micron
  • 900 micron
Connector Type SC
Fiber Type OM3
Where To Buy
  • Send
  • Save as PDF
  • Add to favorites Remove from favorites
Features

Features

  • Better Insertion Loss & Return Loss Performance: Support high-bandwidth/high-speed transmission to 25G, 40G and 100G applications
  • Factory-cleaved, pre-polished 900-micron fiber stub: Provides a quicker termination
  • Available in LC, SC and ST, Single-Mode or Multimode: Multiple connector types available
  • 900-micron boot conceals and protects the splice: Enables better cable management
  • UV Cure Protection Sleeves: Strain relief boot protects the splice point
  • 3mm Version: 3mm boot protects splice for easy cable management
  • 3mm Version: Brass crimp to protect splice
  • 3mm Version: Tubing insert to accommodate 1.6/2.0/3.0 cordage
Specifications

Specifications

General Info
Color Beige
Type Connector
Application Sector Commercial, Data Center
Product Line Ortronics
Country Of Origin China
Boot Color Aqua
Connector Color Beige
UPC Number 662875849070
Dimensions
Product Depth US 2.46 in
Product Height US 0.4 in
Product Width US 2.46 in
Technical Information
Connector Type SC
Connectivity Footprint Infinium
Fiber Optic Cable Type OM3
Fiber Size 50/125
Ferrule Diameter 2.5 mm
Maximum Insertion Loss 0.4 dB
Typical Insertion Loss 0.25 dB
Return Loss 35 dB
Service Life 500 matings, < 0.2dB typical change
Splice Type Fusion
Temperature Rating -40° - 85° C
