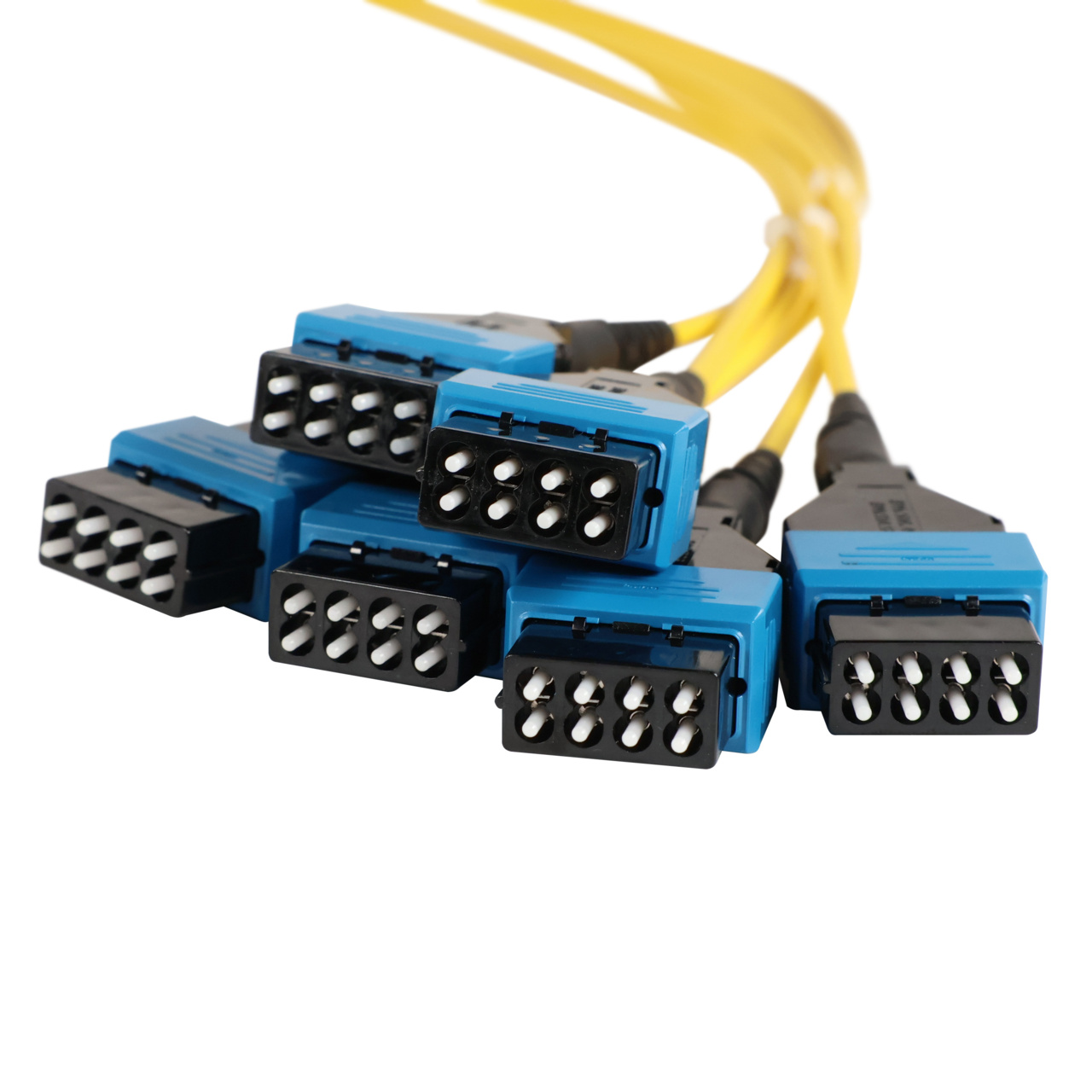

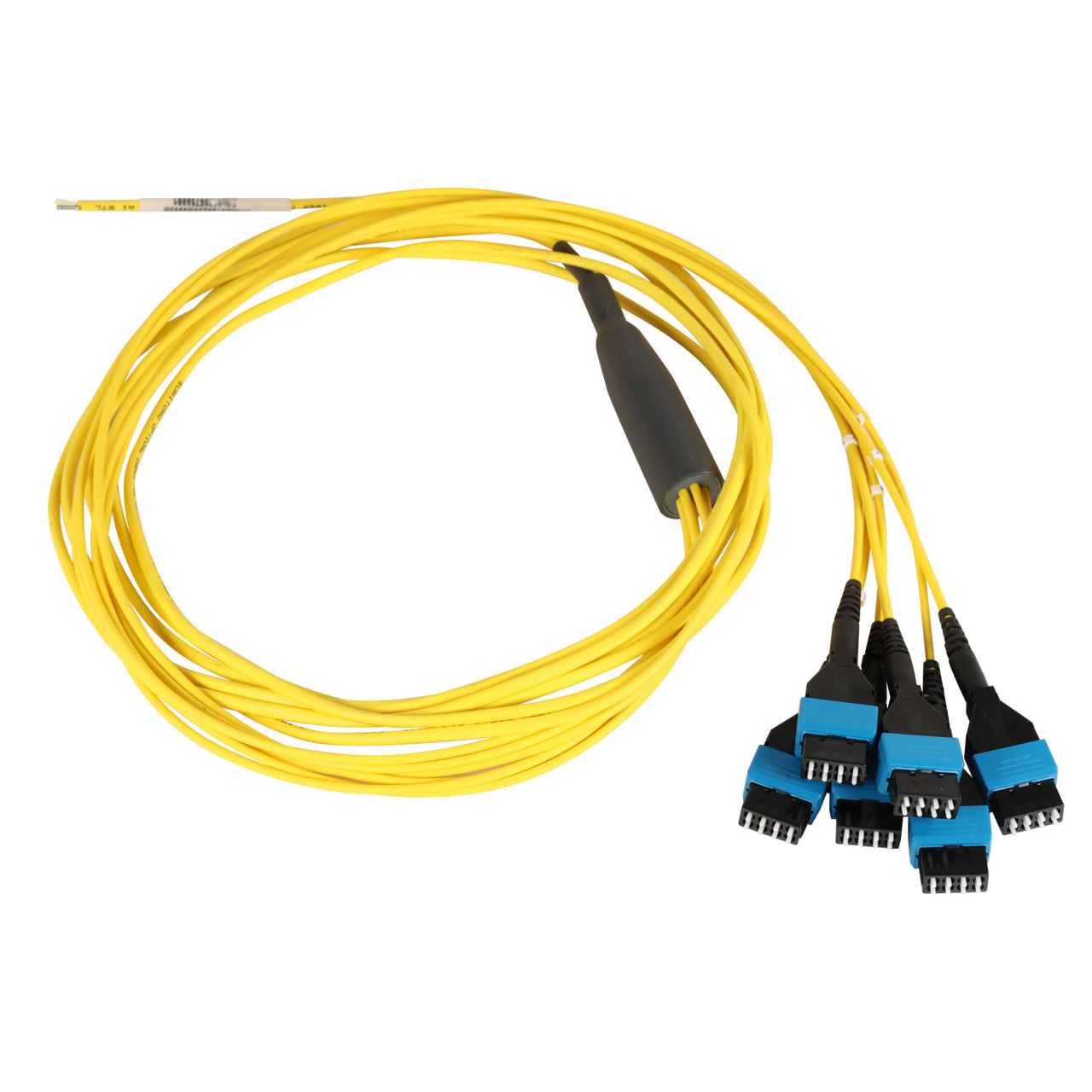

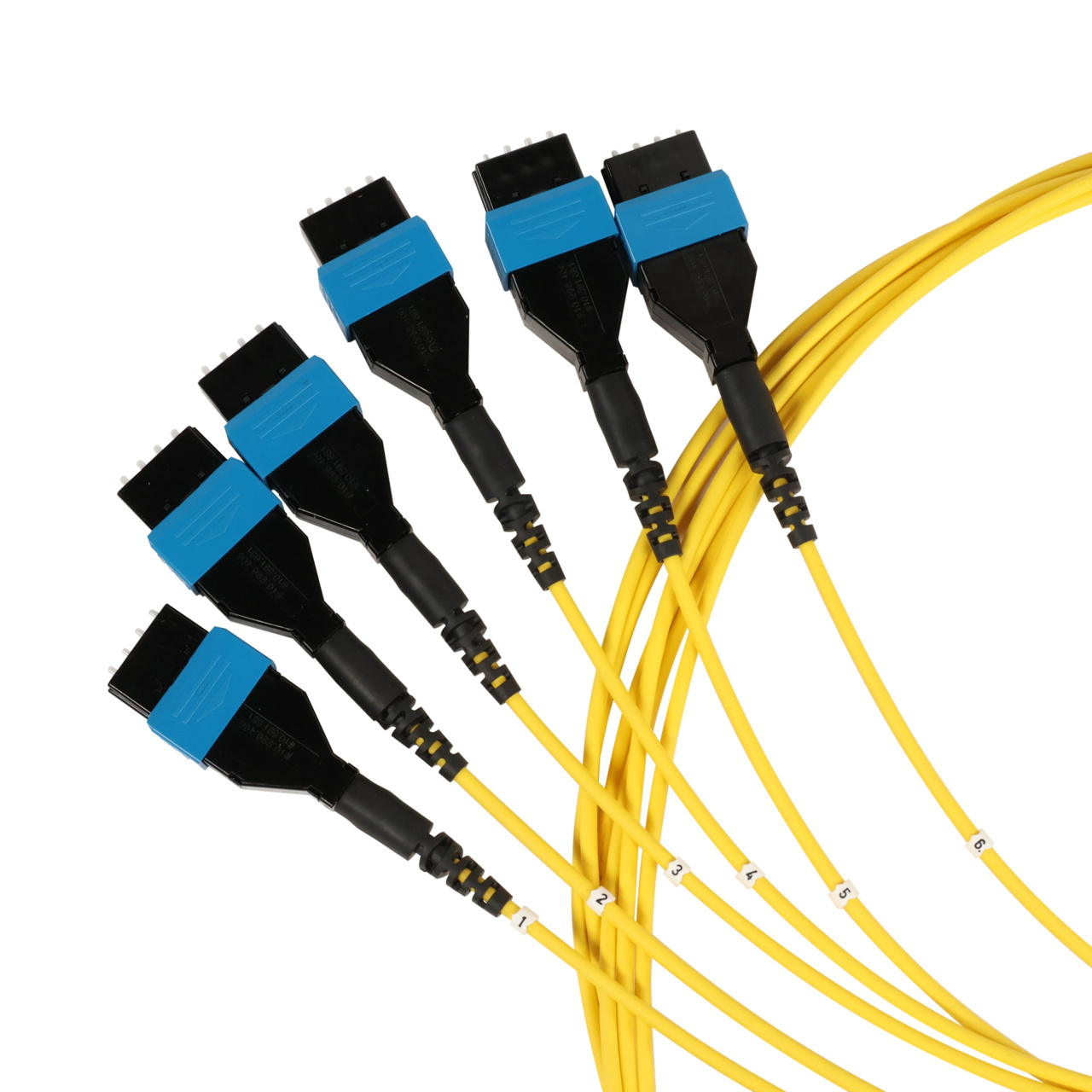

Rollable Ribbon, acclAIM, OS2 Single-Mode, 48 Fiber, Pigtail, Plenum Rated, Yellow - 5 Meter
Bazaarvoice SAP Hybris Integration Version 2.8.1
This single-mode pigtail features a 48-fiber rollable ribbon design in a micro-distribution format, providing a compact, high-density cabling solution for modern data center and enterprise networks. Designed for seamless integration with Legrand's acclAIM pre-terminated system, it enables quick, toolless connectivity and simplified routing through tight pathways. The plenum-rated yellow jacket ensures compliance with strict fire safety codes while allowing for easy cable identification. Ideal for environments where space savings and fast deployment are critical, this pigtail offers excellent bend performance, reduced cable bulk, and enhanced airflow. It supports scalable network growth while minimizes downtime during installation or upgrades.
- Send
- Save as PDF
-
Added to Favorites Go to favoritesRemove from favorites?Something went wrong. Please try again later.
Features
- acclAIM Connectivity – Provides direct terminations without the need for a cassette, simplifying installation while maintaining cassette functionality, design, and administration.
- Rollable Ribbon Construction – Flexible ribbon design allows for easier fiber management, routing, and handling while maintaining compatibility with mass fusion splicing.
- Space and Cable Management Efficiency – Rollable ribbon reduces overall cable bulk, easing congestion in trays and enclosures while maximizing available space.
- Plenum-Rated Jacket – Meets fire safety requirements for deployment in plenum spaces, ensuring compliance with building codes.
- Customizable Length: Available in tailored lengths to meet specific installation requirements, reducing slack, improving cable management, and optimizing space in high-density environments.
Specifications
Color | Yellow | ||
Type | Pigtail | ||
Application Sector | Commercial, Data Center, Industrial | ||
Product Line | Ortronics | ||
Country Of Origin | Mexico | ||
Construction | Rollable Ribbon | ||
Boot Color | Blue | ||
Features | Reversible Gender, Reversible Polarity, Uni-boot | ||
Connector Color | Blue | ||
Warranty Type | 5-Year |
Product Length US | 5.0 m |
REACH Compliant | Yes |
Energy Savings | No | ||
RoHS Compliant | Yes | This product meets the material restrictions of Article 4 of the RoHS Directive (2011/65/EU), including Commission Delegated Directive 2015/863. |
Cable Diameter | 3.8 mm | ||
Bend Radius | 38 mm | ||
Connector 1 | acclAIM | ||

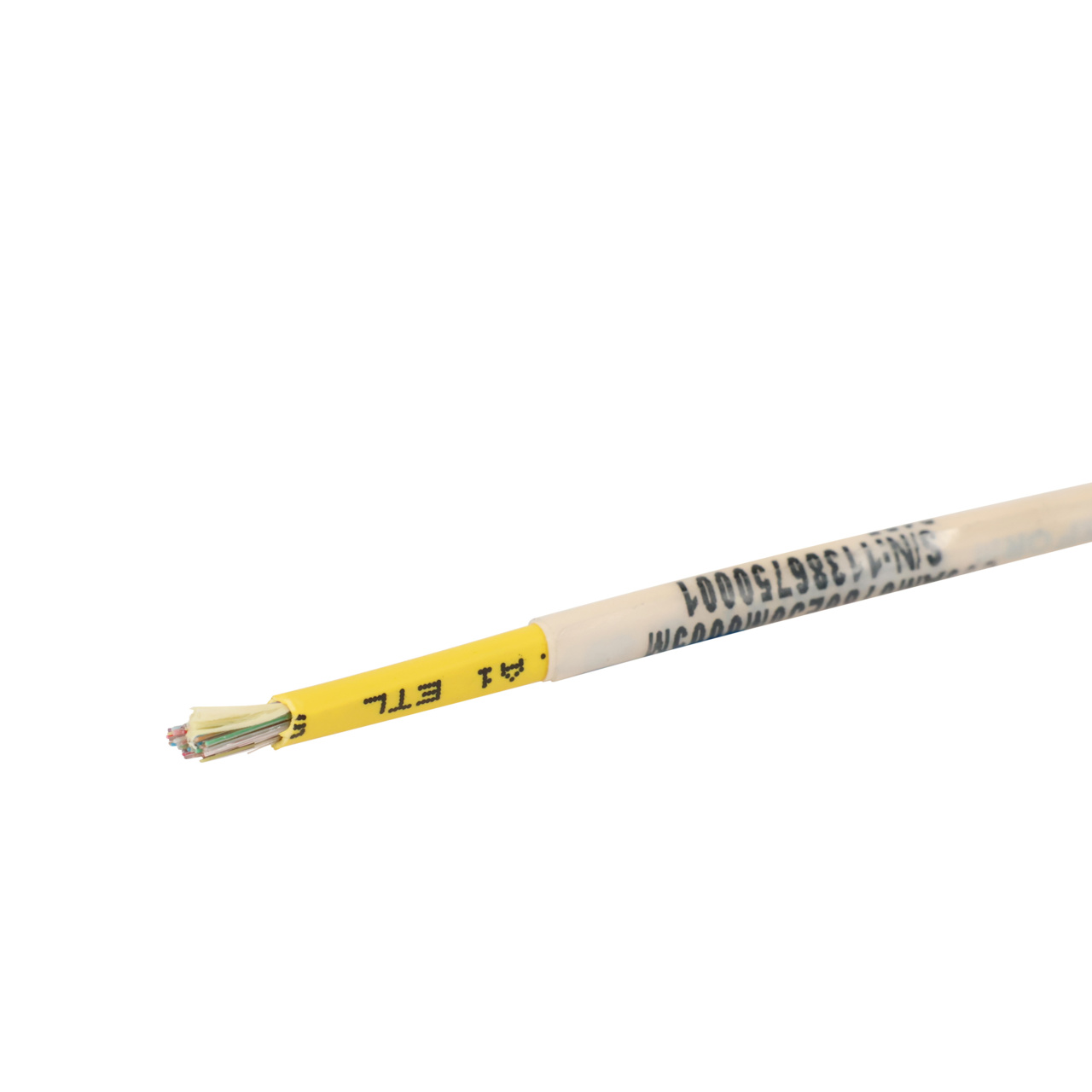

Connector 2 | Blunt | ||
Durability | Max IL of 0.3 dB at 200 cycles per TIA-568.3-E | ||
Fiber Optic Cable Type | OS2 | ||
Number of Fibers | 48 | ||
Polish Type | UPC | ||
Typical Insertion Loss | 0.1 dB | ||
Operating Temperature | 0°-70°C, 32°-158°F | ||
Operating Temperature Max | 158 °F | ||
Operating Temperature Min | 32 °F | ||
Return Loss | 55 dB | ||
Storage Temperature | -40° - 150° F, -40° - 70° C |
