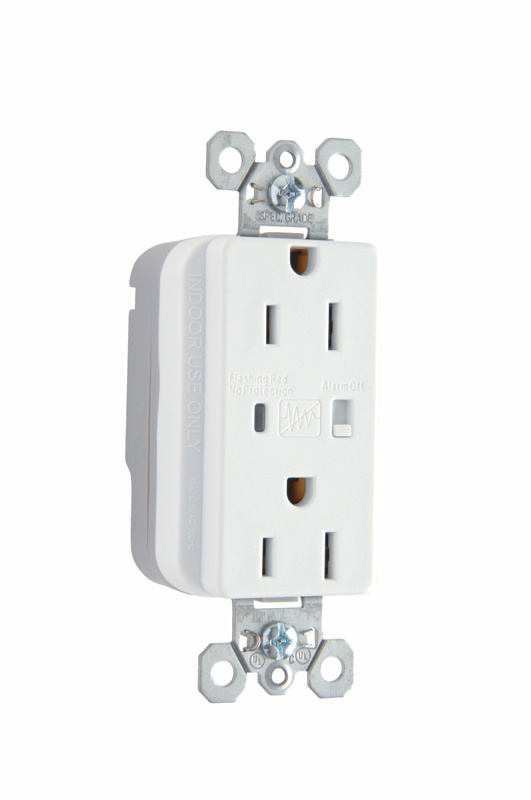

Discontinued - PlugTail® Extra Heavy Duty Surge Protective Duplex Receptacle, White

PT5262WSP Pass and Seymour
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 21ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;


PlugTail information, visit our PlugTail Headquarters.
  • Send
  • Save as PDF
  • Add to favorites Remove from favorites
Features

Features

  • .036 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Plated steel wrap strap design for maximum durability and corrosion resistance.
  • No exposed terminals create a finger safe application before, during, and after installation.
  • Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
  • Crimped and welded contacts.
  • Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
  • Large brass contacts snugly terminate on device blade terminals.
  • Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
Specifications

Specifications

General Info
Application Sector Commercial, Residential
Product Line Pass & Seymour
Country Of Origin China
Standard CSA Listed, cUL, UL Listed, RoHS, FSUL
UPC Number 785007020939
Listing Agencies / 3rd Party Agencies
cULus Listed  Yes
Technical Information
Amperage 15 A
Class IG
Connection Built-in Connector
Environmental Conditions UL94 V2
Phase Single
Type of Indicators Audible Alarm, LED
