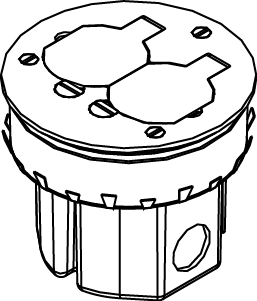

861DB Series Wood Floor Box Assembly

Complete with 20A duplex receptacle and brass cover plate. Die-cast aluminum construction with three 1/2'' (12.7mm) knockouts. Two on the sides and one on the bottom. 18 cu. in. (295ml3) of capacity. Requires a 4'' (102mm) diameter hole.

Send
Save as PDF
Added to Favorites Go to favorites

Remove from favorites?

Something went wrong. Please try again later.

Features

Complete with 20A duplex receptacle and brass cover plate. Die-cast aluminum construction with three 1/2'' (12.7mm) knockouts. Two on the sides and one on the bottom. 18 cu. in. (295ml3) of capacity. Requires a 4'' (102mm) diameter hole.

Specifications

General Info

Type	Floor Box
Application Sector	Commercial
Product Line	Wiremold
Country Of Origin	Mexico
Construction	Assembled
Number of Knockouts	3
Standard	cULus Listed Metallic Outlet Boxes: File E2961 Guide QCIT Meets Article 314.27(C) of NEC.
Cover Material	Brass
UPC Number	786564013259

Dimensions

Product Depth US	4.25 in
Product Height US	3.5 in
Product Width US	4.25 in
Cubic Capacity	18 in³
Knockout Size	1/2 in

Listing Agencies / 3rd Party Agencies

cULus ListingNumber	E2961
cULus Listed	Yes

Buy American Act Compliance

NAFTA

Yes

Additional Information

RoHS Compliant

Yes

This product meets the material restrictions of Article 4 of the RoHS Directive (2011/65/EU), including Commission Delegated Directive 2015/863.

Technical Information

Cable Entry	Knockouts
Floor Type	Wood
Number of Outlets	2
