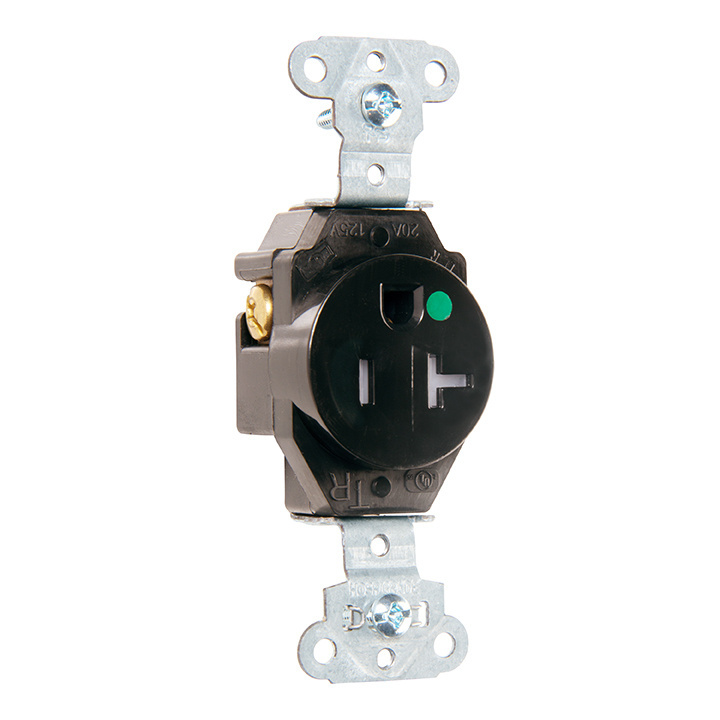

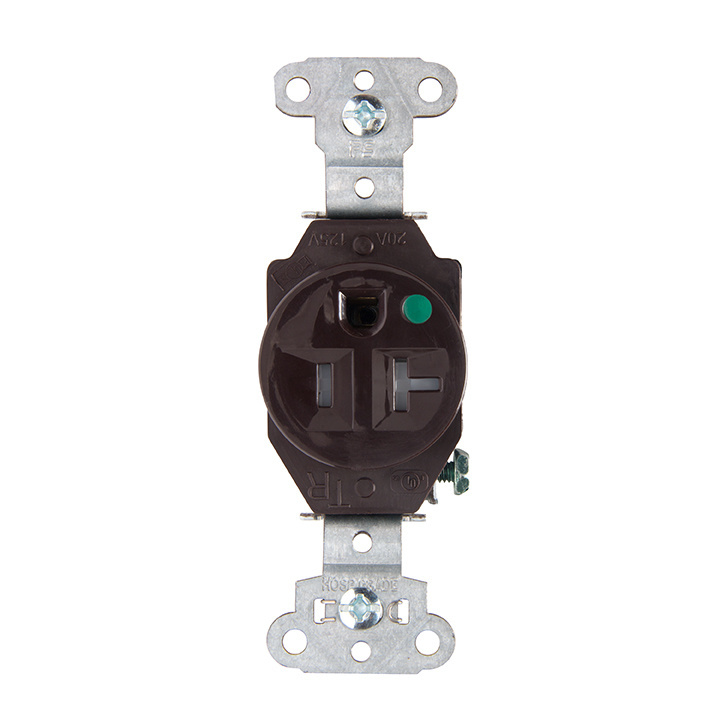

Hospital Grade Single Receptacles Tamper Resistant, Back & Side Wire, 20A, 125V, Brown

  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 78ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

These single receptacles feature durable, triple-wipe, single-piece, brass contacts and heavy-gauge steel straps, plated for enhanced corrosion resistance. Strap locks into the receptacle body to prevent pull-outs, and each features a ground clip for automatic ground connection to metal boxes. Screw-pressure-plate back wiring speeds installation and enables optional side wiring.For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.
Color Brown
Application Sector Commercial

Features

  • .032 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Tri-drive steel terminal screws. Internal screw-pressure-plate back and side wire capability. Two back wire holes for more wiring flexibility.
  • Dual mechanical shutter system to help prevent insertion of foreign objects.
  • Heavy-duty, zinc-plated steel strap for added strength.
  • Strap tabs wrap around face to prevent strap from separating from face and back body.
  • Two drive screws anchor strap to back body and face where abrupt removal torque is strongest.
  • Auto-ground eliminates the necessity to terminate grounding conductor to device
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

General Info
Color Brown
UPC Number 785007030921
Countries Of Origin Mexico
Product Line Pass & Seymour
Listing Agencies / 3rd Party Agencies
cULus Listed  Yes
