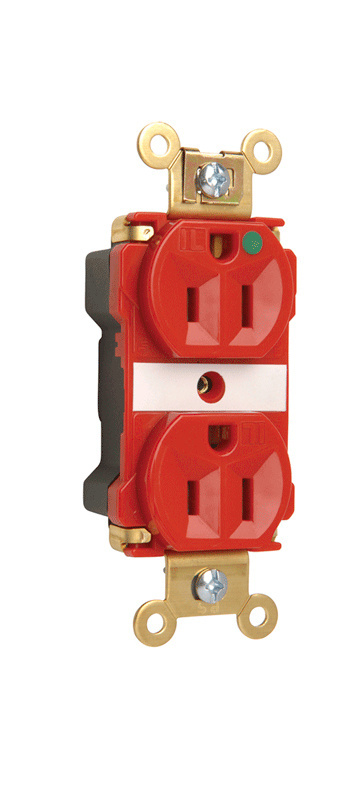

PlugTail® Extra Heavy-Duty Hospital Grade Illuminated Receptacles, 15A, 125V, Red

PT8200ILRED Pass and Seymour
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 43ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

PlugTail® Extra Heavy-Duty Hospital Grade Illuminated Duplex Receptacle, 15 A 125 V, Light AlmondFor detailed PlugTail® information, visit our PlugTail® Headquarters.
Color Red

1-2 Weeks

Features

  • .036 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Plated steel wrap strap design for maximum durability and corrosion resistance.
  • No exposed terminals create a finger safe application before, during, and after installation.
  • Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
  • Crimped and welded contacts.
  • Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
  • Large brass contacts snugly terminate on device blade terminals.
  • Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

General Info
Color Red
UPC Number 785007238655
Country Of Origin Mexico
Product Line Pass & Seymour
Application Sector Commercial
Standard UL 498
Listing Agencies / 3rd Party Agencies
cULus Listed  Yes
cULus ListingNumber  140596
Technical Information
Number of Poles Double Pole
Voltage 125 V
Phase 3
Wire Size 10-14Awg
Number of Wires 3
