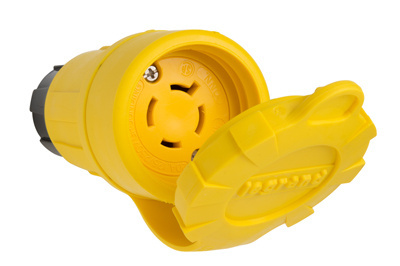

Turnlok® 27W74 Watertight NEMA 4X/6P Locking Connector

Locking Watertight Connector, 20amp 125/250volt, NEMA Configuration L14-20, multipoint sealing system provides environmental protection of NEMA 4, 4X, 6, 6P, and IP67 rated.

Send
Save as PDF
Added to Favorites Go to favorites

Remove from favorites?

Something went wrong. Please try again later.

Features

Thermoplastic elastomer (TPV) construction stands up to impacts, oils, chemicals, heat , and weather.
Nickel-Plated blades and contacts for long lasting, superior corrosion resistance.
Multipoint sealing system provides environmental protection of NEMA 4, 4X, 6, 6P, & IP67 rated.
Devices resist high-pressure hose down of 1,500 psi.
Color coded sealing bushings provided for large range of cord diameters
Large ribs on body for a superior grip when mating.

Specifications

General Info

Color	Yellow
Type	Connector
Application Sector	Industrial
Product Line	Pass & Seymour
Country Of Origin	United States
Features	Watertight
Warranty Type	1-Year
Standard	UL Listed, CSA Listed
UPC Number	785007033045

Dimensions

Product Length US	4.03 in
Product Width US	1.85 in

Technical Information

Amperage	20 A
Flanged	No
Number of Phases	1
Connector Style	Locking
Environmental Conditions	Moisture Resistance NEMA 4, 4X, 12, 6, 6P/IP65, 66, 67 (Plug & Connector only) Flammability UL94V0 (boxes & wiring device interiors) Operating Temperature -40°C (without impact) to +60°C continuous UV resistance All exposed material s are UV stabilized
Indoor/Outdoor	Both
NEMA Configuration Code	L14-20R
Number of Poles	3-Way
Number of Wires	4
Terminal Accommodation	#14 AWG - #10 AWG
Voltage	125.0 V
