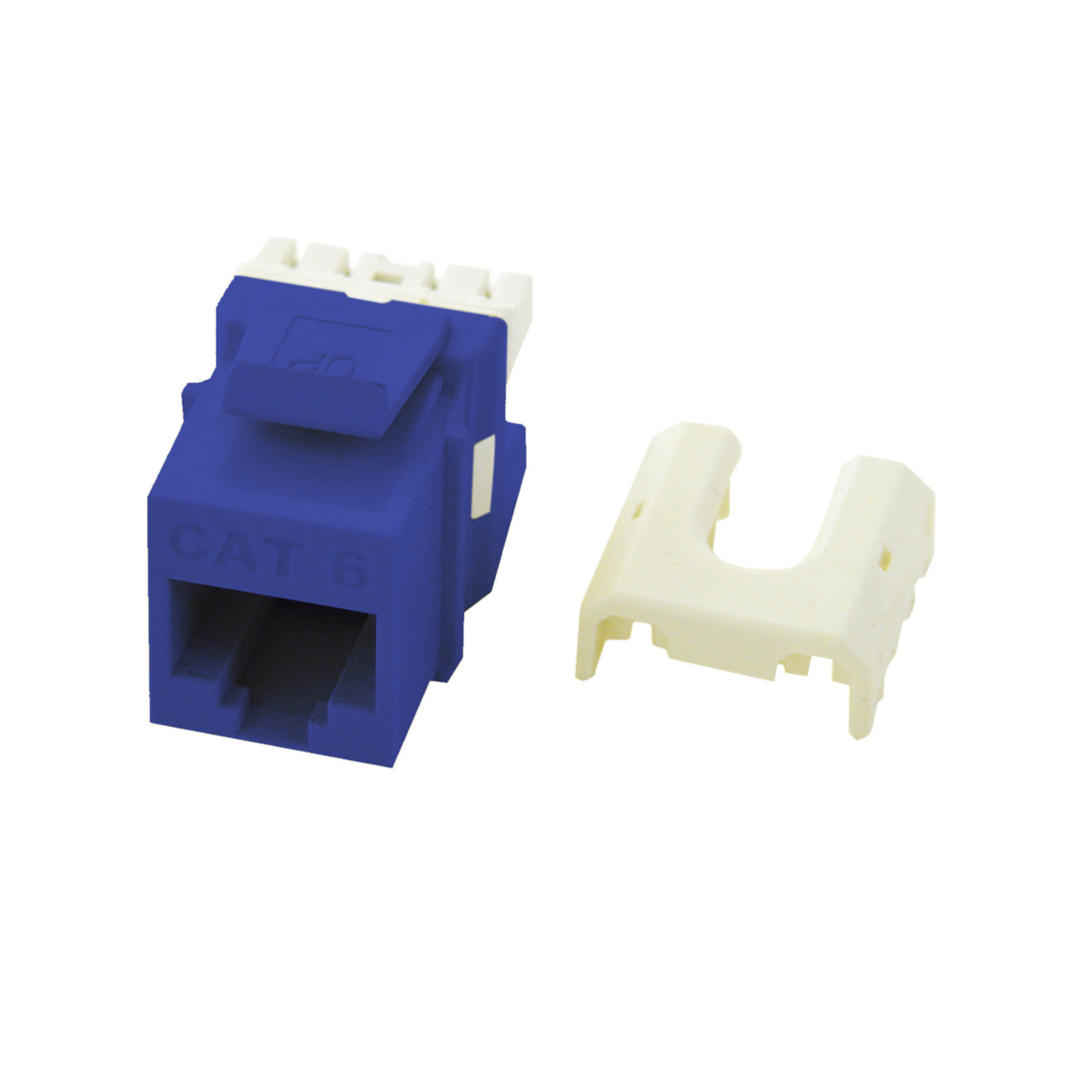

Cat 6 Quick Connect RJ45 Keystone Insert, Blue

Name: Cat 6 Quick Connect RJ45 Keystone Insert, Blue
SKU: WP3476BEV1
Price: 8.39
Availability: InStock

WP3476BEV1

$8.39 USD

Enhance your network setup with the Cat 6 Quick Connect RJ45 Keystone Insert in blue. Designed with a recessed hex nut to prevent jack rotation, this insert ensures a secure and reliable connection. It can be terminated with any 110 punchdown tool and exceeds EIA/TIA 568A/B Cat 6 Performance Specifications. Available in various colors, this insert is perfect for diverse networking needs.

Color Blue

Pack Size 1-PK

Free shipping on orders over $49 & free returns

Quantity

In Stock

Send
Save as PDF
Added to Favorites Go to favorites

Remove from favorites?

Something went wrong. Please try again later.

Features

Recessed hex nut does not allow for jack rotation
RJ45 Inserts can be terminated with any 110 punchdown tool
Exceeds EIA/TIA 568A/B Cat 6 Performance Specifications
Available in Black, Brown, White, Light Almond, Grey, Blue, Orange
Available in contractor packs

Specifications

General Info

Color	Blue
Application Sector	Residential
Product Line	On-Q
Country Of Origin	Taiwan, Province Of China
Features	Quick Connect Compatible
Standard	UL (UL/ANSI 1863), CSA (CAN/CSA-C22.2 No. 182.4-1990), IEEE 802.3an 10GBase-T, TIA 568-B.2-10, RoHS

Technical Information

Cable Type	Cat6
Environmental Conditions	0 to 93% (relative humidity, non-condensing)
Termination Style	Punchdown

Resources

Supporting Document

radiant Warranty Information

pdf

Cutsheet

WP3476BEV1 Cutsheet

pdf

Reviews

Questions & Answers

Can the WP3476-BE-V1 also be used with Cat 5E? If not, why?

Asked by: Mark27

While the first answer said yes, I think they failed to realize that the punch down terminals for CAT6 are designed for 23AWG wire while CAT5e is made up of 24AWG wire. Your connection is likely to fail because the smaller diameter wire may not fully seat into the connector.

Answered by: Dustin ConnectSmart

Date published: 2024-10-25

These RJ45 connectors appear to be wired different from the WP3460 connectors (referring to the color ordering), was this intentional?

Asked by: Brandon

Does this part contain any Conflict Minerals?

Asked by: Endries Quality

I purchased the F9048-wh-v1 housing and it doesn't fit. What is the recommended housing?

Asked by: K23

I have the WP3476-WH quick connect. How do I terminate to match the 568B cat6 before? I didn't understand the pattern markings on the terminal.

Asked by: JD
