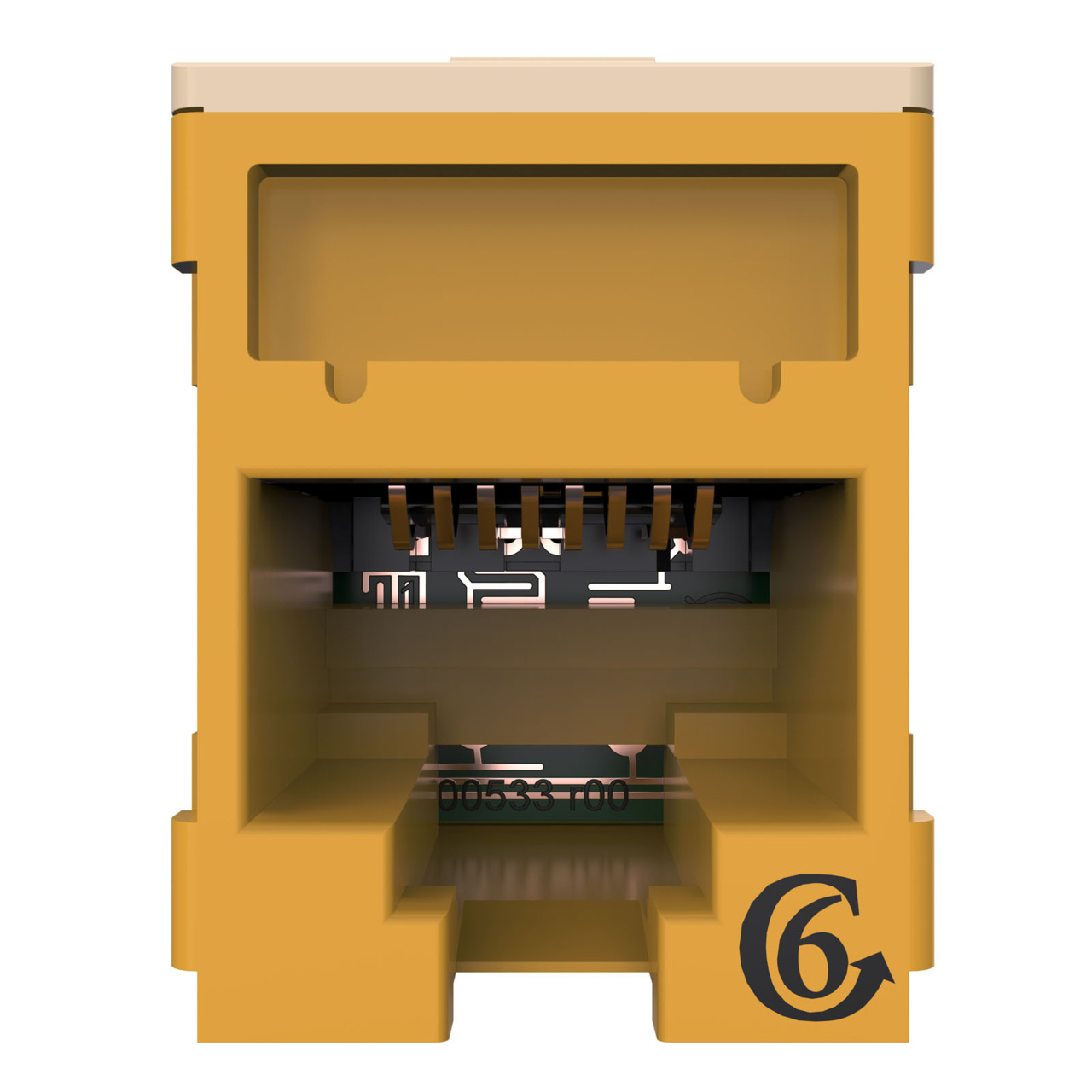

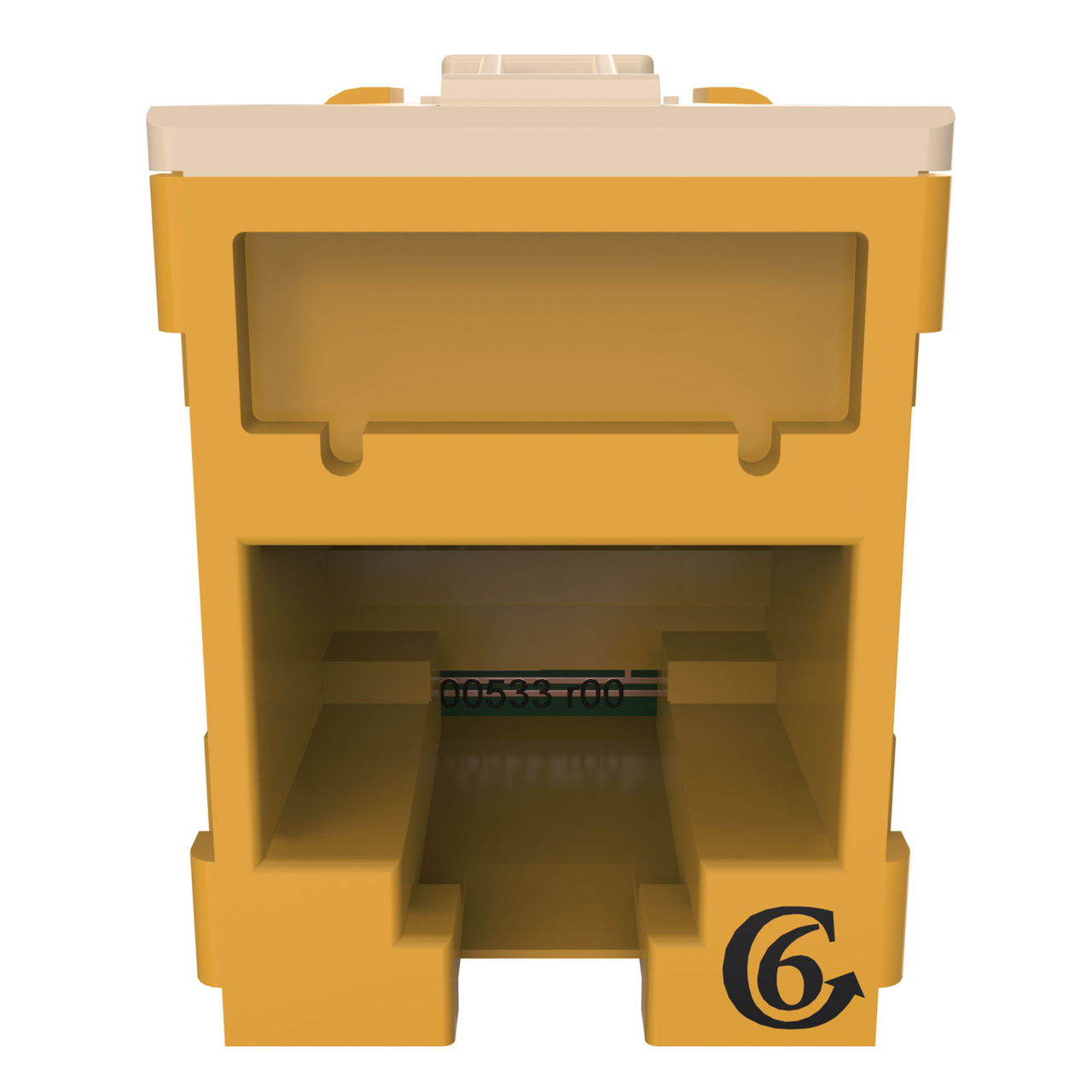

HDJSN6-44 Yellow Cat6 SNAP Jack Straight Front View

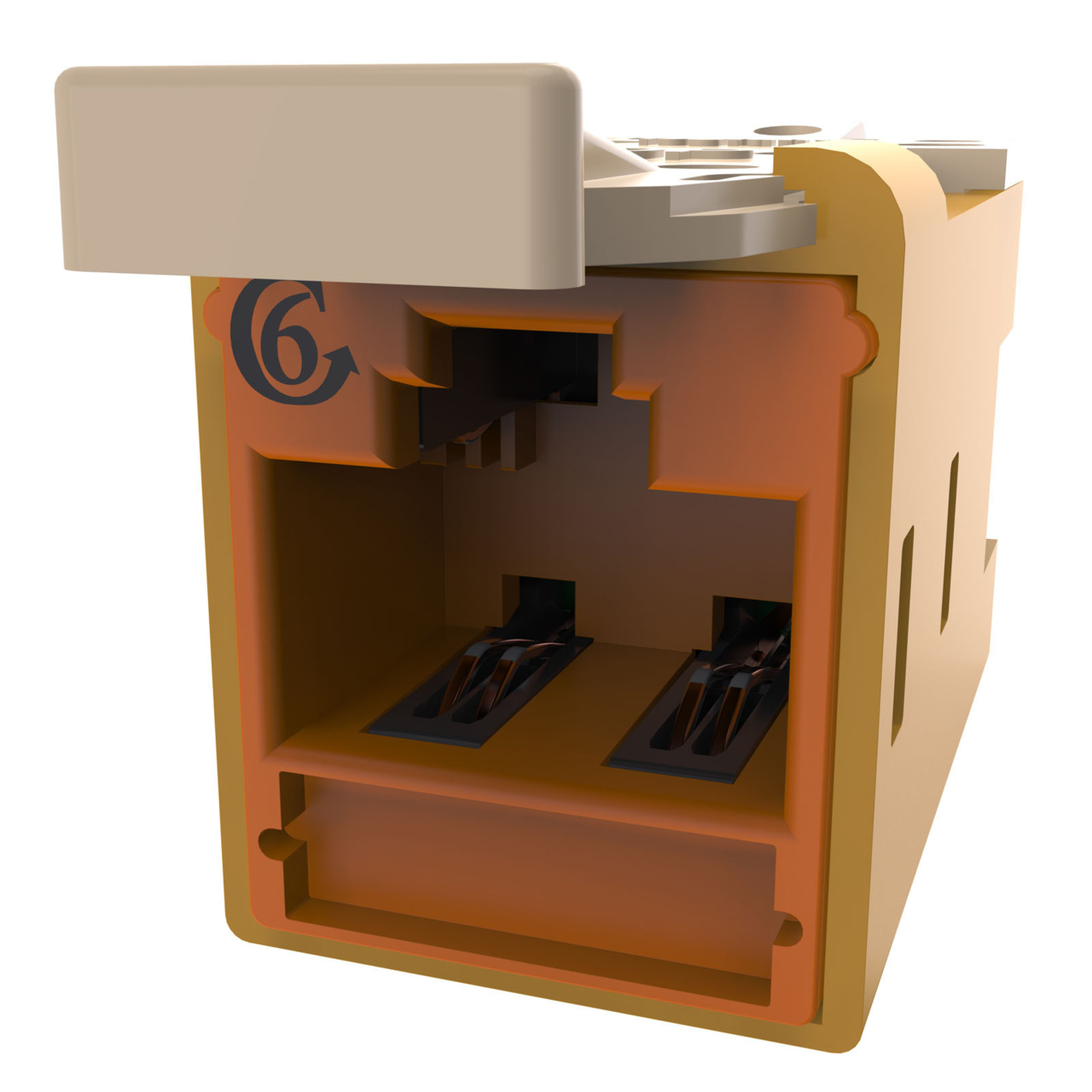

HDJSN6-44 Yellow Cat6 SNAP Jack Straight Front Angle Down View

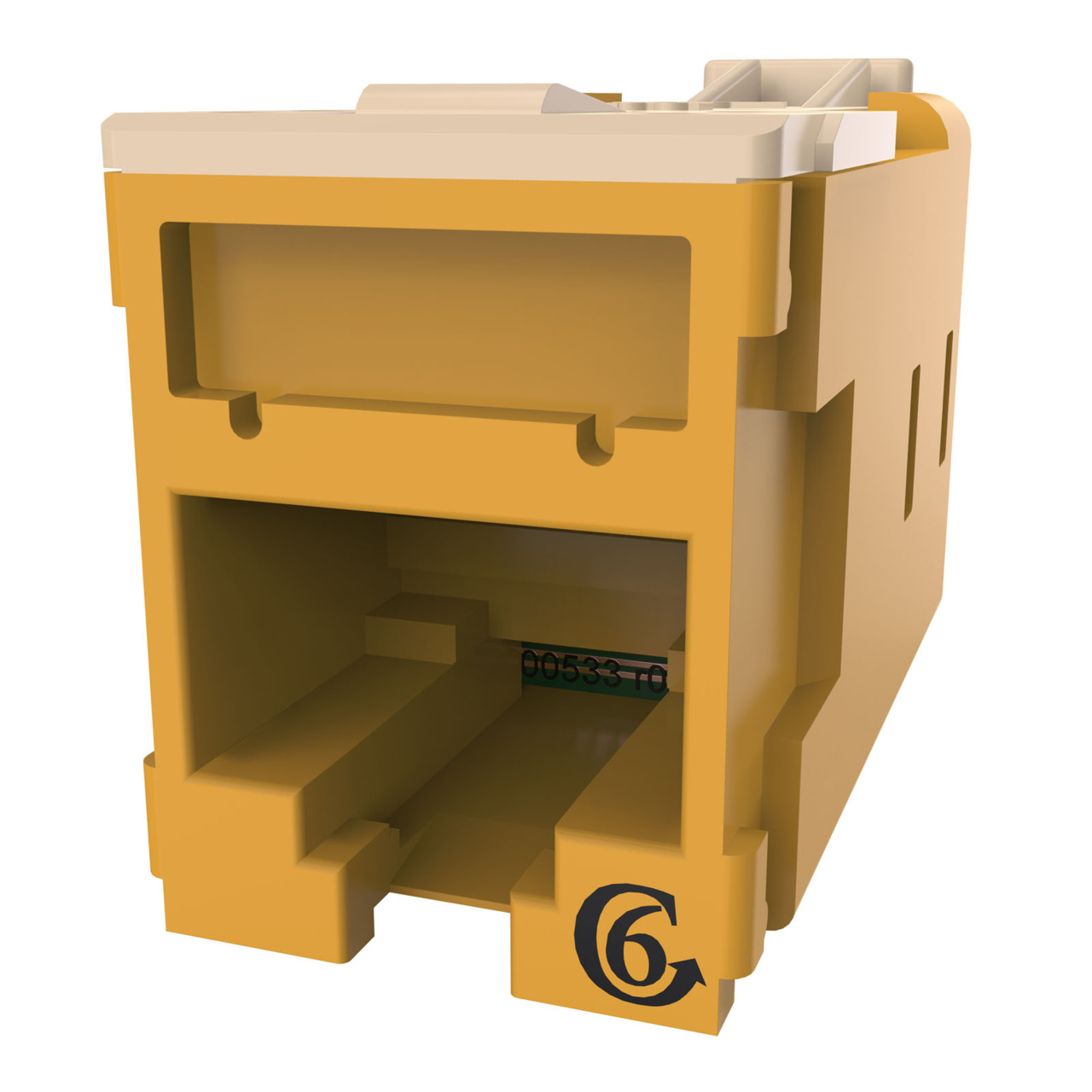

HDJSN6-44 Yellow Cat6 SNAP Jack Front Angled Right View

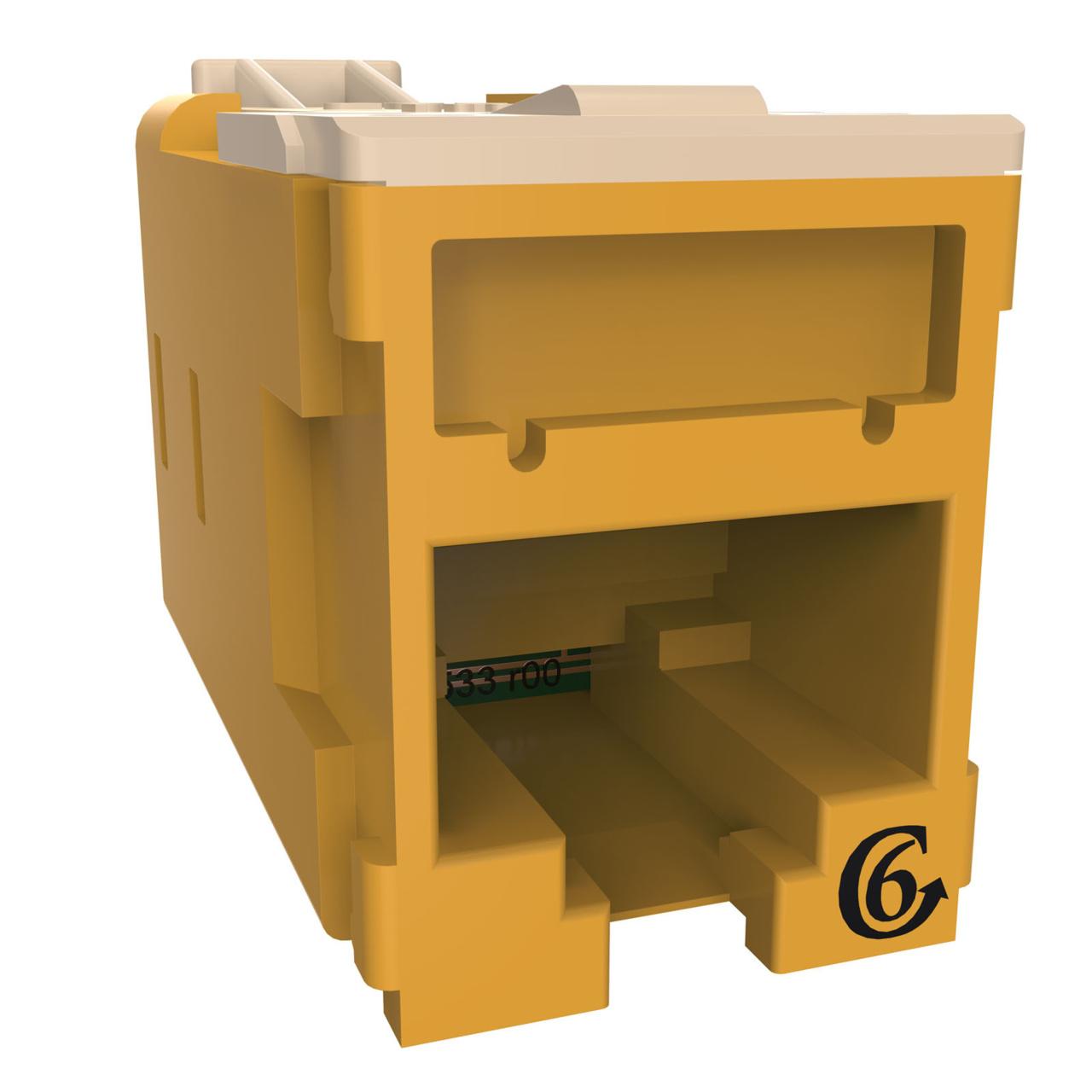

HDJSN6-44 Yellow Cat6 SNAP Jack Front Angled Left View

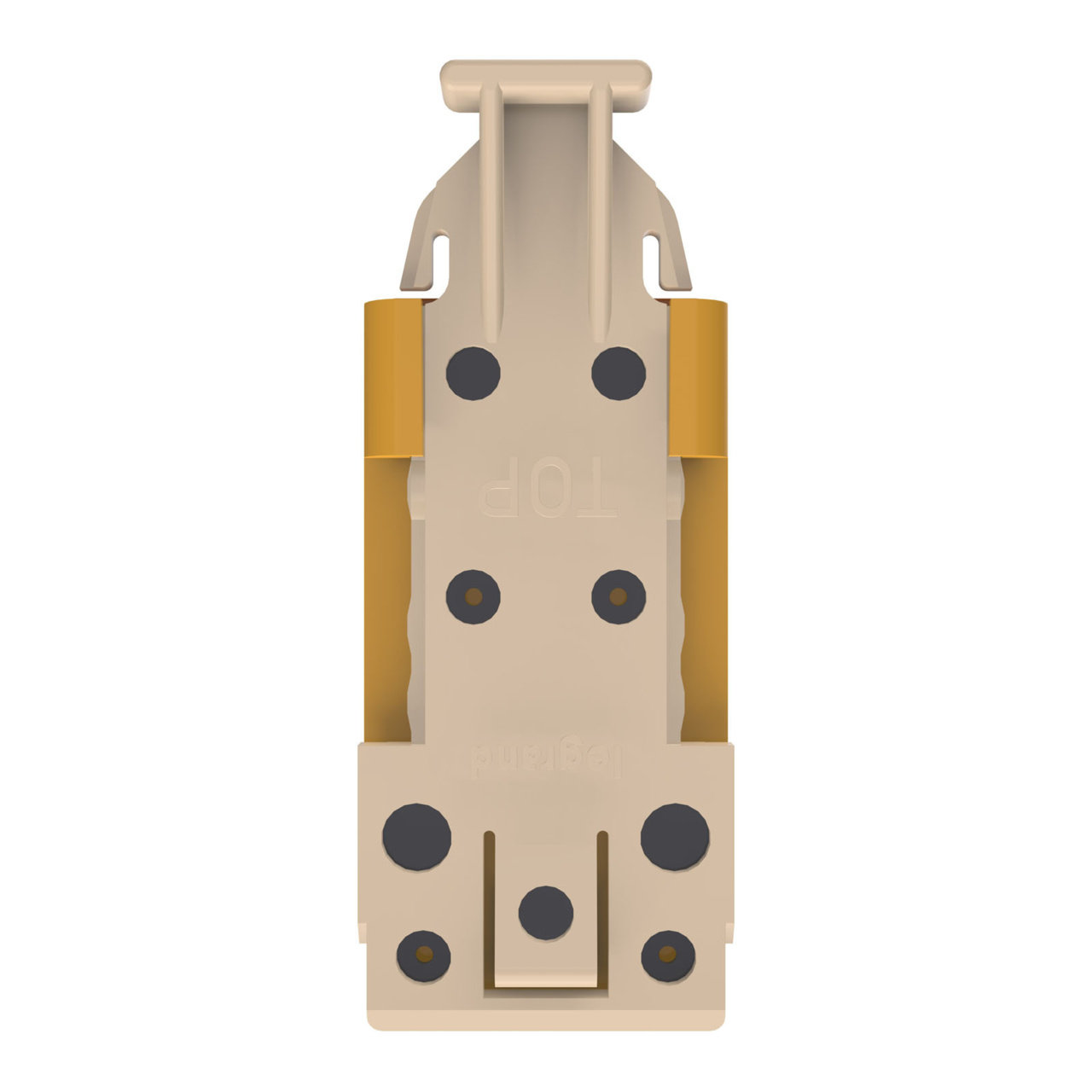

HDJSN6-44 Yellow Cat6 SNAP Jack Rear SNAP View
HDJSN6-44 Yellow Cat6 SNAP Jack Top View

Clarity High Density Jack (HDJ) SNAP Cat6 Jack, T568 A/B, Yellow

HDJSN6-44 Ortronics
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 18ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

Clarity Cat6 SNAP HDJ module is a part of the SNAP pre-terminated horizontal cabling system, which includes cable assemblies, workstation jacks, and patch panels. SNAP is totally modular and designed to dramatically reduce deployment time. SNAP systems exceed requirements of TIA 568 , ISO110801, and IEEE 802.3 standards. SNAP HDJ modules are compatible with all HDJ panels, faceplates, and surface mount boxes to ensure maximum flexibility, and feature the HDJ rear-load footprint with slide-lock for easy to install.
Color Yellow
Where To Buy
  • Send
  • Save as PDF
  • Add to favorites Remove from favorites
Features

Features

  • Totally Modular Cabling System: Dramatically faster deployment of horizontal cabling and port replication.
  • Compatible With Factory-Installed and tested SNAP Terminations: Assembled in a controlled factory environment for consistent performance to elevated requirements confirmed by factory testing reducing the time and cost of field testing
  • Clarity® 6 Performance: Premium performance you've come to rely on from Clarity connectivity, now in a pre-terminated ultra-simplified installation solution.
  • Low Profile: RJ45 jack helps minimize or eliminate snagging, also providing a more pleasing aesthetic.
  • Icon compatible: Icons are blank, for customization and pad printing, for labeling: Supports 606 designation requirements.
  • High Density Jack Footprint: Supports multiple applications, from Workstation Mounting Solutions to Patch Panel installations, supporting up to 48 ports per 1RU
  • Rear Loading: Preferred mounting for panels, with quick and easy installation
  WARNING: www.P65Warnings.ca.gov
Specifications

Specifications

General Info
Color Yellow
Type Modules
Material Plastic
Finish Plastic
Application Sector Commercial, Data Center, Education, Healthcare, Hospitality, Industrial, Residential
Product Line Ortronics
Country Of Origin Mexico
Warranty Type 5-Year
Standard UL 1863;UL 2043;ANSI/TIA-568.2-E;ISO/IEC 11801-1
UPC Number 662875108566
Dimensions
Product Depth US 1.61 in
Product Height US 0.84 in
Product Width US 0.63 in
Product Weight US 0.03 lb
Listing Agencies / 3rd Party Agencies
CE Certified Yes
REACH Compliant Yes
cUL Listed  Yes
ETL Listed Yes
cULus Listed  Yes
Additional Information
Energy Savings No
RoHS Compliant Yes This product meets the material restrictions of Article 4 of the RoHS Directive (2011/65/EU), including Commission Delegated Directive 2015/863.
Technical Information
Connector Type RJ-45, SNAP
Connectivity Footprint HDJ
Contact Gold-plated Springwire
Indoor/Outdoor Indoor
Operating Temperature -20°-85°C
Termination Style Snap
Wire Gauge 23 AWG
