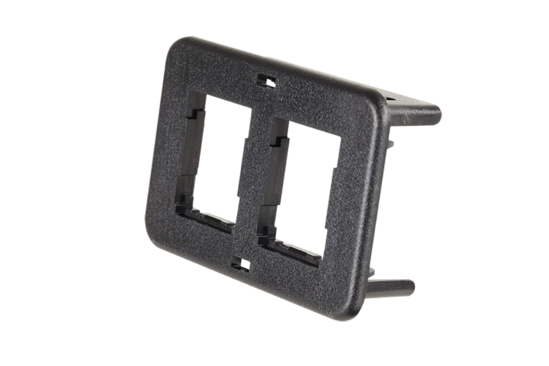

Bezel, 2-Port HDJ, Fits Wiremold Rfb4, Dtb-2-2Rt, Wtb-2-Rt, Clit-2-Rt, & Rfb-2-Ssrt, Black
AB2HDJ-00
Ortronics
Bazaarvoice SAP Hybris Integration Version 2.8.1
AB series 2-port HDJ bezels accept 2 rear loading HDJ jacks and provide a mounting method into RFB4 RT series brackets for RFB4 floor box applications. Bezels are supplied in a bag aof 10 pcs and meet UL1863
- Send
- Save as PDF
-
Added to Favorites Go to favoritesRemove from favorites?Something went wrong. Please try again later.
Product Details
AB series 2-port HDJ bezels accept 2 rear loading HDJ jacks and provide a mounting method into RFB4 RT series brackets for RFB4 floor box applications. Bezels are supplied in a bag aof 10 pcs and meet UL1863
- Low profile compact Snap mounting design
- HDJ Jack mounting for RFB4 RT series brackets for RFB4 floor box applications
- Holds two HDJ Jacks
- Designed to intergrate HDJ Jacks with WiremoldRFB4 floor boxes
Specifications
General Info
| Color | Black | ||
| Product Type | Adapter Bezel | ||
| Material | ABS, Polycarbonate | ||
| Finish | Textured | ||
| Application Sector | Commercial | ||
| Product Family / Series / Group | Clarity HDJ | ||
| Product Line | Ortronics | ||
| Country Of Origin | Taiwan, Province Of China | ||
| Features | Front Loading | ||
| Wall Plate Type | Networking | ||
| Warranty Type | 5-Year | ||
| Standard | UL Standard | ||
| UPC Number | 662875513476 |
Dimensions
| Product Depth US | 0.68 in | ||
| Product Height US | 1.38 in | ||
| Product Width US | 2.05 in |
Technical Information
| Compatibility | HDJ | ||
| Indoor/Outdoor | Indoor | ||
| Mounting Type | Screwless | ||
| Number of Gangs | 1 | ||
| Number of Ports | 2 | ||
| Operating Temperature | -10°-60°C | ||
| Operating Temperature Max | 60 °C | ||
| Operating Temperature Min | -10 °C | ||
| Orientation | Horizontal |
