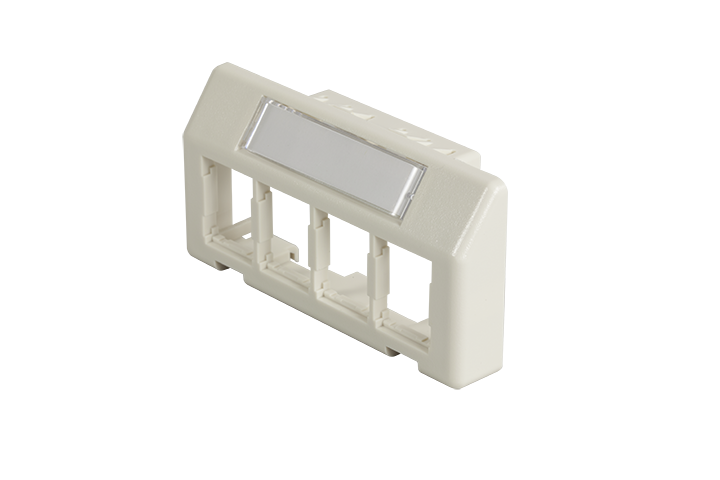

HDJ Furniture Adapter Plate. Holds 4 HDJ jacks, Fog White

This plate has 4 rear-load jack openings for 4 high density jack (HDJ) modules or blanks. For 2.70" x 1.375" furniture openings. HDJ Furniture plates and bezels accept HDJ series jacks or modules to enable mounting in Raceways, Floor Boxes, furniture and more.

Color Fog White

Send
Save as PDF
Added to Favorites Go to favorites

Remove from favorites?

Something went wrong. Please try again later.

Features

Supports use with furniture delivery system: Field configurable with High Density Jacks (HDJ).
Choice of rear mounting bezels: For use with a range of furniture heights.
Snap mount: Ease of installation.
One Piece Design
Supplied label field: Supports designation requirements

Specifications

General Info

Color	Fog White
Product Type	Adapter Panel
Material	ABS, Polycarbonate
Finish	Textured
Application Sector	Commercial
Product Family / Series / Group	Clarity HDJ
Product Line	Ortronics
Country Of Origin	Taiwan, Province Of China
Features	Front Loading
Wall Plate Type	Networking
Warranty Type	5-Year
Standard	UL Standard
UPC Number	662875430728

Dimensions

Product Depth US	1.0 in
Product Height US	1.65 in
Product Width US	3.19 in

Additional Information

Product Environmental Profile

Yes

Technical Information

Compatibility	HDJ
Indoor/Outdoor	Indoor
Mounting Type	Screwless
Number of Gangs	1
Number of Ports	4
Operating Temperature	-10°-60°C
Operating Temperature Max	60 °C
Operating Temperature Min	-10 °C
Orientation	Horizontal
