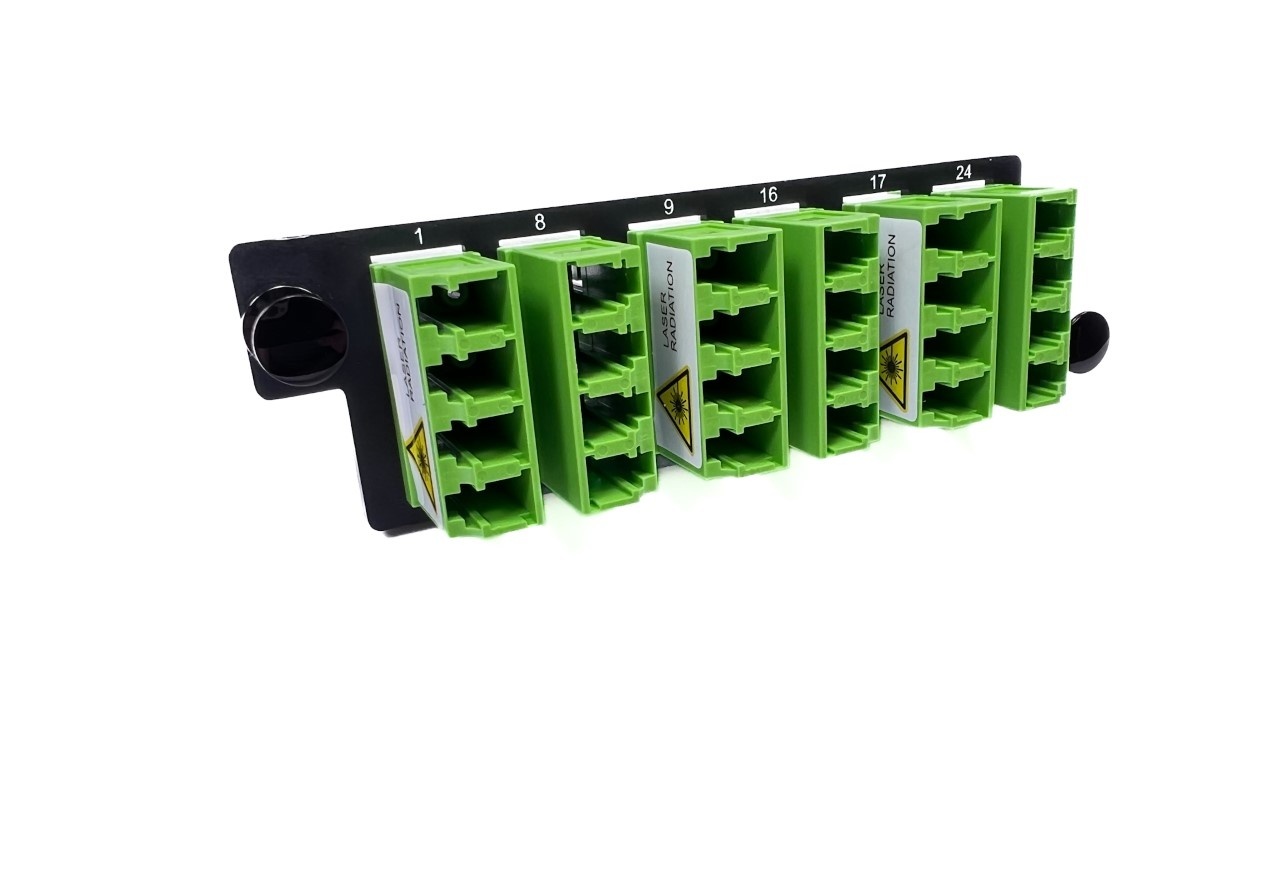

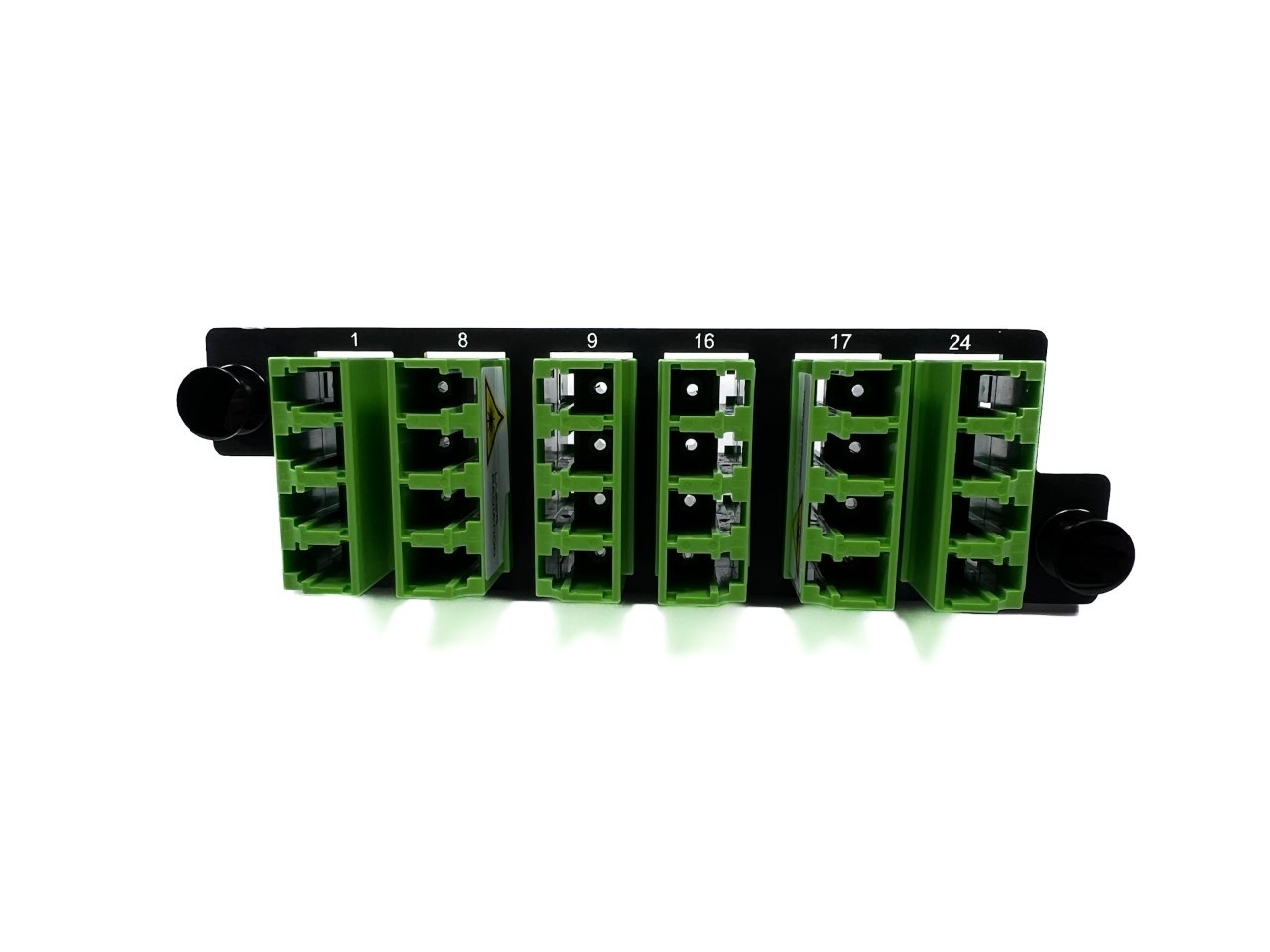

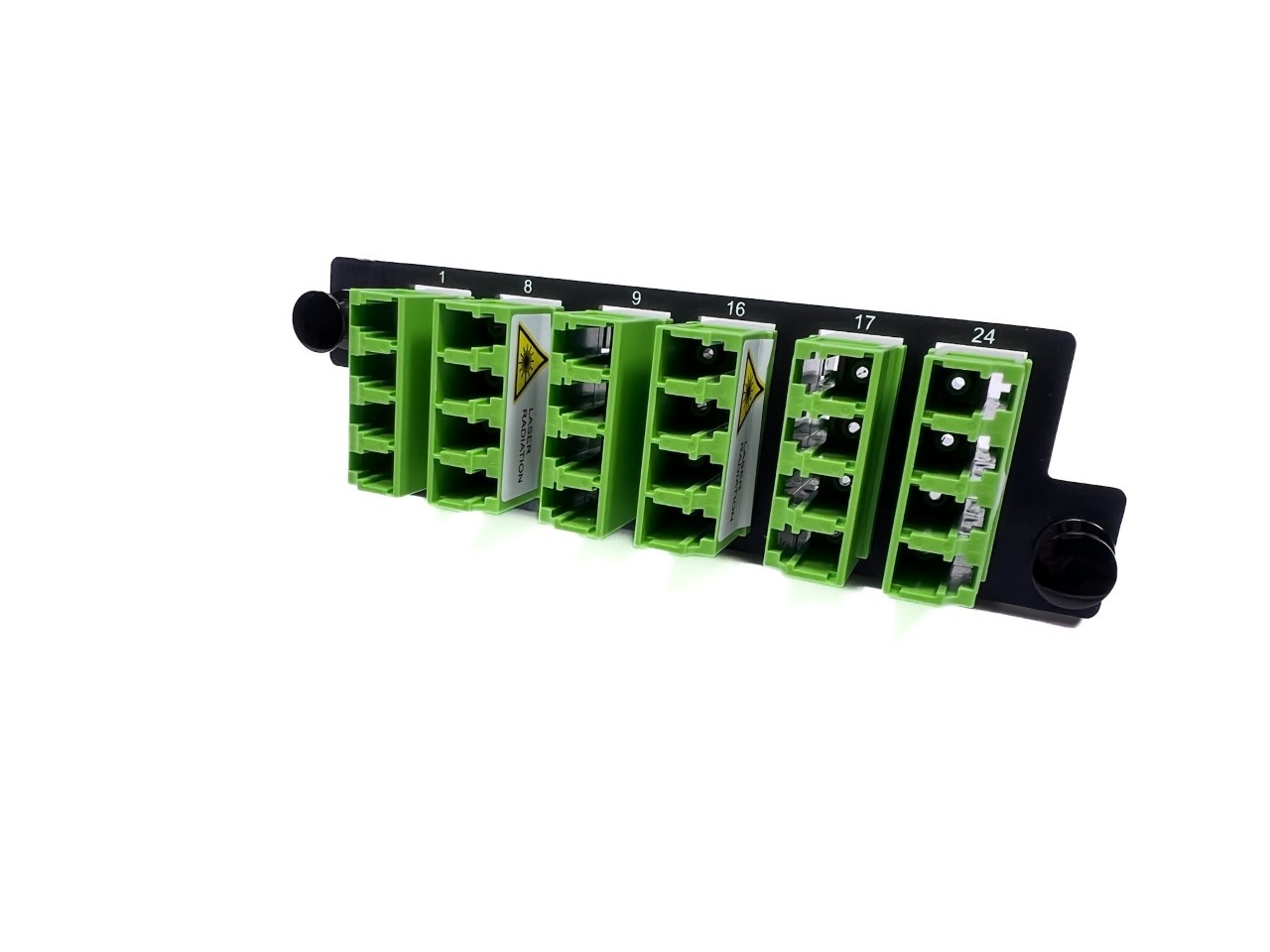

Green 24 port Infinium HDFP Fiber Adapter Panel, LC

High Density 6-LC Quad (24 fibers) OM5, Lime Green adapters

Infinium HDFP Adapter Panels offer pass through connections and front-loading access. The compact design optimizes space and features fiber port labeling for easier identification.
Compatible with Infinium HD-E Rack Mount Fiber Enclosure with M4 Drawer Face.

Color Lime Green

Number of Ports 24

Send
Save as PDF
Added to Favorites Go to favorites

Remove from favorites?

Something went wrong. Please try again later.

Features

Compact high density design: Optimized space utilization
Plunger/grommet fasteners: Quick and easy insertion and removal
Front loading: Easy access to connections
Fiber port labeling: Provides fiber port identification for easier administration
Engineered polymer adapter panel: Rugged, cost-effective design

Specifications

General Info

Color	Lime Green
Type	Adapter Panel
Application Sector	Commercial, Data Center
Product Line	Ortronics
Country Of Origin	Mexico
Features	Shuttered
Included	Cover
Warranty Type	5-Year
UPC Number	662875025535

Dimensions

Product Depth US	0.66 in
Product Height US	1.24 in
Product Width US	4.19 in

Technical Information

Alignment Sleeve Material	Zirconia
Compatibility	HDFP, LM4, M4
Connectivity Footprint	Q-Series High Density
Connector 1	MPO Female
Connector 2	MPO Female
Durability	500 matings
Fiber Optic Cable Type	OM5
Number of Fibers	24
Polarity Type	Universal
Number of Ports	24
Operating Temperature	-10°-60°C
Operating Temperature Max	60 °C
Operating Temperature Min	-10 °C
Operating Humidity	0-80% RH (Non-Condensing)
Shuttered Adapters	Yes
Simplex/Duplex	Quad
Single/Multimode	Multimode
Storage Temperature	-40° - 75° C
