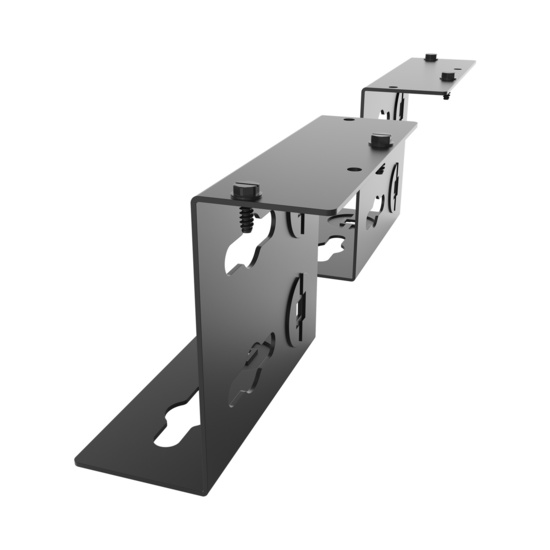

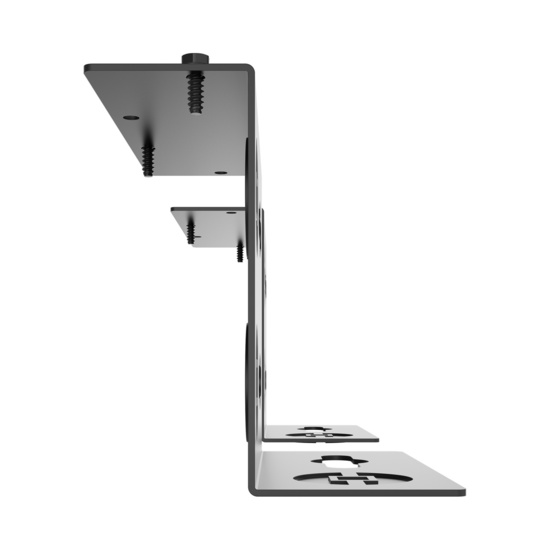

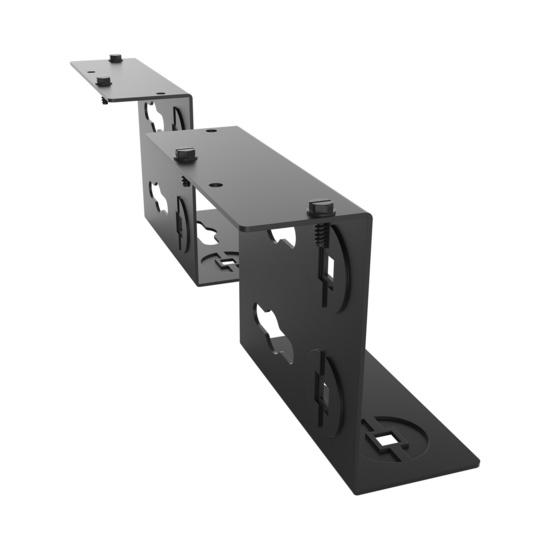

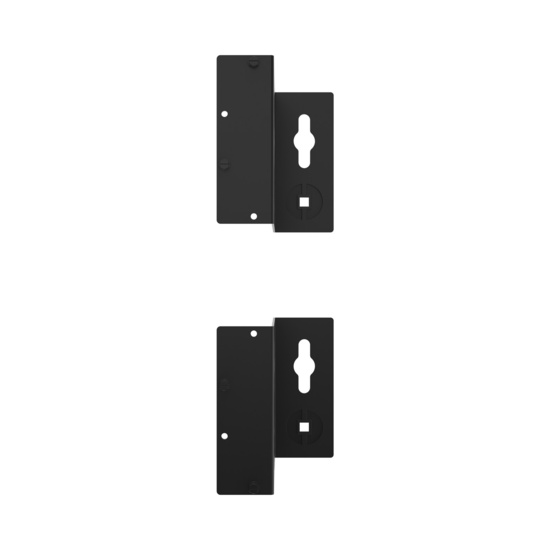

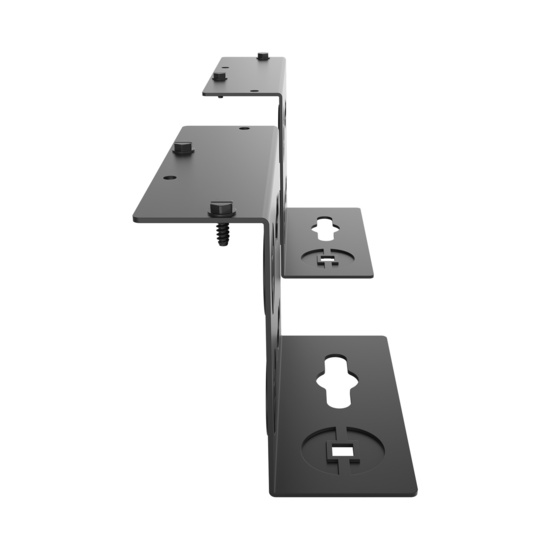

Mighty Mo 20 PDU Mounting Brackets, Rack Mount, 2 Deep, 1 Wide, Black

MM20PDUMB2D1W-B Ortronics
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 15ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

Legrand Mighty Mo 20 PDU Mounting Bracket Kits are designed to mount “Button Mount” PDUs to the VMD style vertical managers or rear channels of the Mighty Mo 20 open racks. Offset, Flat and Vertical manager style brackets are available, which provide multiple mounting options.
Color Black
Where To Buy
  • Send
  • Save as PDF
  • Add to favorites Remove from favorites
Features

Features

  • Multiple Mounting Options: Mount offset to the rack rails on the left or right-side of the rack, at multiple heights to accommodate a button mount PDU.
  • Direction Mounting: Offset mounts enable parallel or perpendicular mounting.
  • Double Deep, Single Wide PDU Brackets: Mount 1 PDU offset, parallel to the rack, or up to 2 PDUs perpendicular to the rack.
  • Color Matched: Available in Black or White to match the Mighty Mo 20 rack.
  WARNING: www.P65Warnings.ca.gov
Specifications

Specifications

General Info
Color Black
Type Bracket
Finish Powder Coat
Application Sector Commercial, Data Center
Product Line Ortronics
Country Of Origin United States
Included Hardware for mounting
Warranty Type 5-Year
UPC Number 662875343684
Dimensions
Product Depth US 4.63 in
Product Height US 3.48 in
Product Width US 4.0 in
Product Weight US 0.9 lb
Listing Agencies / 3rd Party Agencies
CE Certified Yes
REACH Compliant Yes
Additional Information
Energy Savings No
RoHS Compliant Yes This product meets the material restrictions of Article 4 of the RoHS Directive (2011/65/EU), including Commission Delegated Directive 2015/863.
Technical Information
Compatibility Mighty Mo
Frame Adjustable, Channel, Fixed
Mounting Rack Mount
