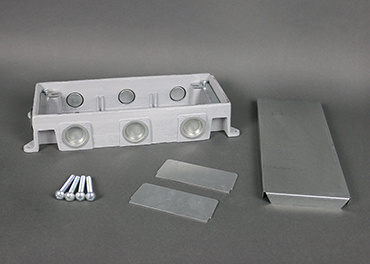

880CM3-1 - Omnibox Series Shallow Cast-Iron Floor Box

The 880CM3 Omnibox Floor Box Series provides an excellent activation solution for applications where single service is required in open space areas. The 880CM3 floor box is offered in a stamped steel construction, designed to be installed in above grade concrete floor applications and to meet a wide range of market requirements.

This floor box series has many applications, some of which are schools, financial institutions, and commercial office buildings.

Send
Save as PDF
Added to Favorites Go to favorites

Remove from favorites?

Something went wrong. Please try again later.

Features

TopGuard protection. All cover assemblies for the Omnibox Floor Box Series have TopGuard protection. An integral design which keeps out water, dirt, and debris from the power and communication compartments.
Fully adjustable box. Before and after concrete pour adjustability. Lower installed cost.
Watertight cast-iron construction. Meets requirements for on grade or below grade application.
Two-gang configurations, maximum flexibility. Can remove divider for greater capacity. Supports multiservice applications.
Boxes and covers have been listed by Underwriters Laboratories Inc. to their standard UL514A, 514C, 514D, and Canadian standard C22.2
Flush activation assemblies for carpet and tile. Aesthetically pleasing assemblies are interchangeable for both cast-iron and stamped steel.
Datacom connectivity options. Accepts industry standard and proprietary devices from a wide range of manufacturers to provide a seamless and aesthetically pleasing interface for voice, data, audio, and video applications at the point-of-use.
This product meets the material restrictions of RoHS.
A wide selection of data and bezel options available for use with Ortronics TracJack and Series II devices.

Specifications

General Info

Type	Floor Box
Material	Cast Iron
Application Sector	Commercial, Education
Product Line	Wiremold
Country Of Origin	United States
Construction	Assembled
Warranty Type	1-Year from Installation or 2-Years from Day of Sale
Standard	cULus Listed Metallic Outlet Boxes: File E2961 Guide QCIT. Meets Article 314.27(C) of NEC.
Cover Style	Flush
UPC Number	786564515920

Dimensions

Product Depth US	12.5 in
Product Height US	2.5 in
Product Width US	5.2 in
Product Weight US	9.876 lb
Cubic Capacity	118 in³
Knockout Size	1 in

Listing Agencies / 3rd Party Agencies

cULus ListingNumber	E2961
cULus Listed	Yes

Additional Information

Product Environmental Profile	Yes
RoHS Compliant	Yes		This product meets the material restrictions of Article 4 of the RoHS Directive (2011/65/EU), including Commission Delegated Directive 2015/863.

Technical Information

Box Type	Above-Grade
Cable Entry	Through Floor
Box Capacity	3 Gangs
Service Capacity	Triple
Floor Type	Concrete
Depth Behind Device Plates	1.75 in
