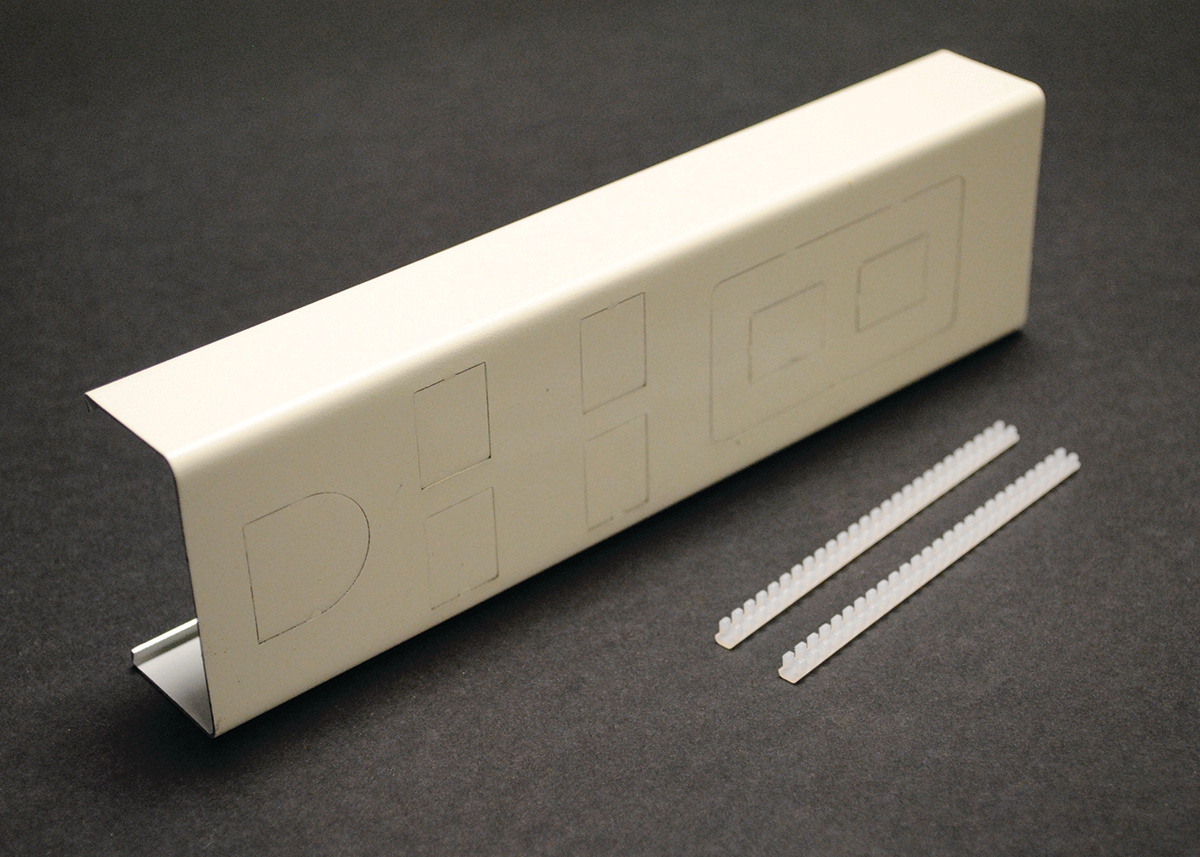

Communication Connectivity Cover
25DTC-CVR
Wiremold
Bazaarvoice SAP Hybris Integration Version 2.8.1
Routing power, data, and A/V – neatly and simply – from up there to down here; that’s what Tele-Power® Poles are all about. Their sole purpose is to get the business end of your wire and cabling needs down to your workstation, equipment, or modular furniture. Specifically, in away-from-the-wall locations in open commercial office areas, schools, labs, stores and other sites. Whatever power, data, or A/V wiring you need to bring down to the desk, workstation, or cash registers, Wiremold Tele-Power Poles handle all of your needs effortlessly. For modular office furniture – our poles easily provide the hook up to feed office partitions. The poles are also available with specialized electrical circuits such as dedicated/isolated ground. Vertical drop poles give you the flexibility and capacity to devote both sides of the pole for single or dual service feeds. Legrand/Wiremold offers the broadest selection of open space solutions. With standard, custom and configurable products, you can rest assured that the right solution is readily available and adaptable to your current and future work environments.
- Send
- Save as PDF
-
Added to Favorites Go to favoritesRemove from favorites?Something went wrong. Please try again later.
Specifications
General Info
| Color | Ivory | ||
| Product Type | Faceplate | ||
| Material | Steel | ||
| Application Sector | Commercial | ||
| Product Family / Series / Group | Tele-Power | ||
| Product Line | Wiremold | ||
| Country Of Origin | United States | ||
| Warranty Type | 1-Year from Installation or 2-Years from Day of Sale | ||
| Standard | File E53857 | ||
| UPC Number | 786776101249 |
Dimensions
| Product Length US | 8.0 in | ||
| Product Width US | 2.25 in | ||
| Product Weight US | 0.491 lb |
Listing Agencies / 3rd Party Agencies
| cULus ListingNumber | E53857 | ||
| cULus Listed | Yes |
Additional Information
| RoHS Compliant | Yes | This product meets the material restrictions of Article 4 of the RoHS Directive (2011/65/EU), including Commission Delegated Directive 2015/863. |
Resources
Cutsheet
Instruction Sheet
Brochure
Catalog
Reviews
Bazaarvoice SAP Hybris Integration Version 2.8.1
Questions & Answers
We installed 2 of these and our RJ45 keystones don't fit very well in the data knockouts -- they extend out and will not sit flush like they would in most wall plates. Is there another bracket or part we need so they'll sit flush?
Hello,
Thank you for your inquiry. Our 25DTP poles come complete with (1) 25DTC-CVR communications cover installed. The 25DTC poles come with (2) 25DTC-CVR. The smaller knockouts on this cover accept standard keystone style jacks from most manufacturers. By design, keystone jacks will protrude past the face of the cover and will not sit flush. The larger rectangular knockout accepts a modular furniture bezel, sold separately by the manufacturer of the jacks being used. The rectangular knockout size for the modular furniture bezel measures 2.70" x 1.38".
An alternative option is to remove the 25DTC-CVR and replace it with the 25DTC-ACT cover, which accommodates up to three CM2‑U2KEYA communication modules. The bezel will sit on the surface of the communication cover, and the keystone modules and jacks will mount flush within the bezel.
Date published: 2026-02-06
Do these come in colors other than Ivory? I would like White poles to match the room's white paint, and an Ivory section on the pole will look bad. I would be even worse with the black poles and an Ivory panel.
Hi,
25DTC-CVRWH is the part number for the white version of that plate.
Thanks,
Date published: 2025-03-25
