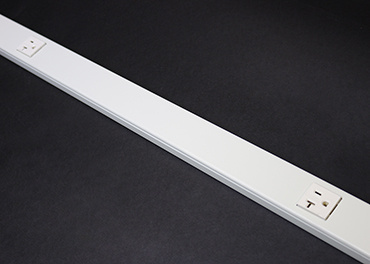

V24GB618 Steel Plugmold® Multioutlet Strip

V24GB618 Wiremold

6' Steel Plugmold Multioutlet Strip with 4 single receptacles spaced 18'', GB

Send
Save as PDF
Added to Favorites Go to favorites

Remove from favorites?

Something went wrong. Please try again later.

Features

Steel Raceway. Provides superior strength for any dry location installation with greater wire capacity than V2000.
Ivory ScuffCoat finish. Durable scratch resistant finish.
Removable cover. Allows easy access to wiring for changes or additions.
Full range of fittings. Provides a complete wiring solution.
Single-and-dual-gang boxes. Wire devices into the raceway system or protect a Plugmold® strip with a surge or GFCI device.
Factory wired Plugmold® sections available in 3’, 5’, and 6’ lengths with 20A, 120V receptacles. Ideal for short runs requiring additional outlets in electrically busy areas.
Single or alternating circuit. Meets virtually any circuit requirement.
Choice of receptacle spacing. Center spacing between receptacles of 6'', 12'' and 18''.
Simplex receptacle. More spacing options available.
Duplex receptacle. Aesthetically pleasing, functional 20A duplex for the 24S (2400) Series.
Customization available. All products can be modified to accommodate virtually any application.
This product meets the material restrictions of RoHS.

General Info

Color	Ivory
Product Series	2400 Series
Type	Plugmold
Application Sector	Commercial, Education, Entertainment, Healthcare, Hospitality, Retail
Product Line	Wiremold
Country Of Origin	United States
Installed Devices	Single Receptacle
Number of Receptacles	4
Warranty Type	1-Year from Installation or 2-Years from Day of Sale
Standard	cULus Listed Base & Blank Cover: File E4376 Guide RJBT. Multioutlet Assemblies: File E15191 Guide PVGT. Fittings: File E41751 Guide RJPR. Base & Blank Cover& Plugmold Series w/Snapcoil Harness: Meets Article 386 of NEC. Meets Section 12-3032 of CEC. Plugmold Wired Sections: Meets Article 380 of NEC. Meets Section 12-3032 of CEC.
UPC Number	786776085457

Dimensions

Listing Agencies / 3rd Party Agencies

cULus ListingNumber	E15191
cULus Listed	Yes

Trade Programs

USMCA

Yes

Additional Information

RoHS Compliant

Yes

This product meets the material restrictions of Article 4 of the RoHS Directive (2011/65/EU), including Commission Delegated Directive 2015/863.

Technical Information
