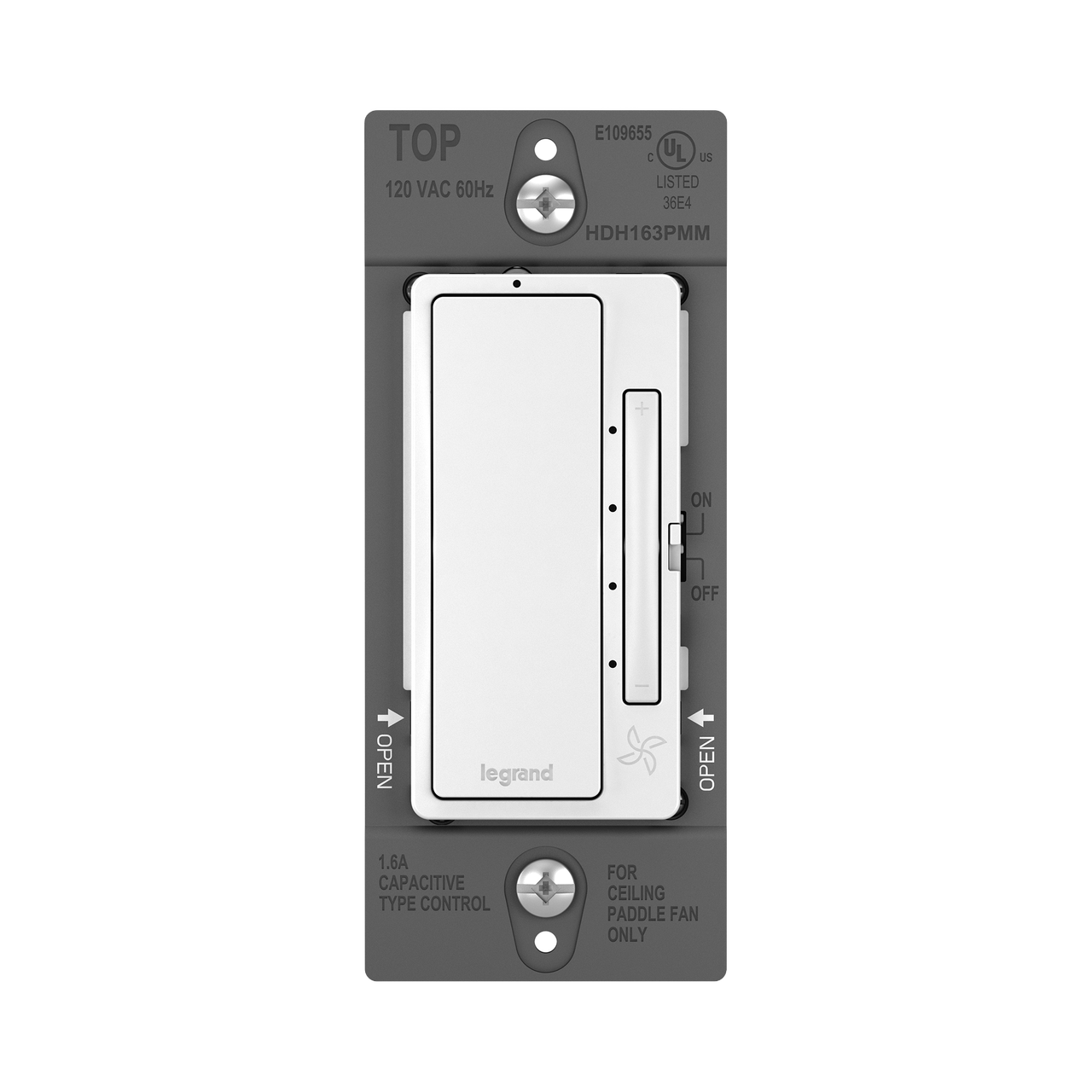

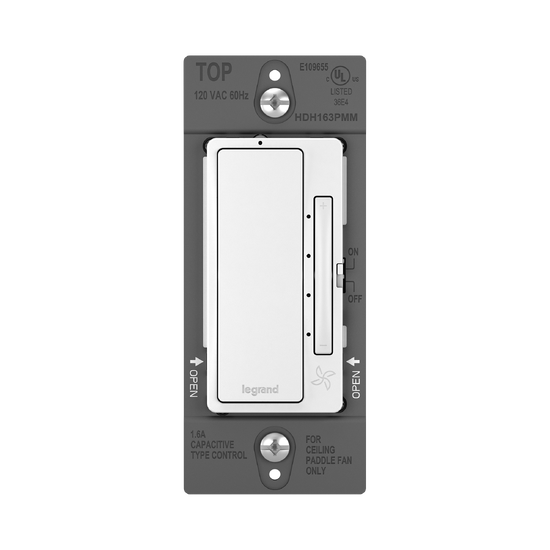

radiant® Fan Speed Control De-Hummer, Single Pole/3-Way, Tri-Color
HDH163PMMTC
radiant Collection
Bazaarvoice SAP Hybris Integration Version 2.8.1
Specially designed capacitive circuitry de-hummer feature virtually eliminates fan motor hum for quiet fan speed control. Made exclusively for use with screwless Wall Plates from the radiant Registered Collection, sold separately.
- Send
- Save as PDF
-
Added to Favorites Go to favoritesRemove from favorites?Something went wrong. Please try again later.
Features
- Multi-location dimming compatible with 3-way wiring for simple installation.
- Designed to virtually eliminate the motor's hum for quieter use.
- Constant memory returns lights to previous level after a power failure.
- Part of the radiant® collection.
- Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.
Specifications
General Info
| Color | Ivory, Light Almond, White | ||
| Type | Fan Speed Control | ||
| Material | Steel, Thermoplastic | ||
| Finish | Satin | ||
| Application Sector | Hospitality, Multi-Dwelling Unit, Residential | ||
| Product Line | Pass & Seymour | ||
| Country Of Origin | China | ||
| Features | 3-Speed Fan Control, Color Change Kit, De-Hummer Fan Control | ||
| Number of Switches | 1 | ||
| Switch Type | Digital, Paddle | ||
| Warranty Type | Limited Lifetime Warranty | ||
| UPC Number | 785007039696 |
Dimensions
| Product Depth US | 1.25 in | ||
| Product Height US | 4.25 in | ||
| Product Width US | 1.75 in |
Listing Agencies / 3rd Party Agencies
| cULus ListingNumber | E109655 | ||
| cULus Listed | Yes |
Technical Information
| Requires Neutral Wire | No | ||
| Wire Connection Type | Flying Leads | ||
| Dimming Compatibility | Fan Speed Only | ||
| Frequency Rating | 60 Hz | ||
| Indoor/Outdoor | Indoor | ||
| Load Rating | 120V 1.6A (FAN MOTOR) | ||
| Load Type | AC Fan Motor | ||
| Mounting Type | Wall Box | ||
| Number of Poles | 3-Way, Multi-Location, Single Pole | ||
| Preset | Yes | ||
| Voltage | 120 VAC | ||
| Wire Size | #14 - #10 AWG |
Resources
Installation Instructions
Specifications
Supporting Document
Cutsheet
Reviews
Bazaarvoice SAP Hybris Integration Version 2.8.1
Questions & Answers
Will this switch work for a fan with a DC motor that is controlled by an included remote. I would like to operate the fan without a remote and only with the wall switch.
Thank you for your Inquiry. The HDH163PMM (radiant® Fan Speed Control) is rated for the following:
-Single Pole/3-Way,1.6A, 4-Speed De-Hummer 120VAC, 60Hz
Please check with your fixtures manufacturer for compatibility confirmation.
Date published: 2025-02-04
Is this a discontinued item? I can not find it at in any retail stores or online.
This device is not discontinued, I'd advise using our "where to buy" tool located at the top of our webpage. I hope this helps!
Date published: 2023-10-05
Is this for a 3-speed fan?
You can use this device to control your 3-speed fan, Yes.
Date published: 2023-03-15
Is this fan control compatible with the Ried 56-Inch Ceiling Fan?
Hello,
It looks like this fan comes with its own in-wall controller, we would have to reach out to the manufacture of the fan to see what fan controls would be compatible.
Thank you,
Date published: 2022-12-01
Can this be used to turn on/ off a light and control the fan.
This is designed for fan control only. The LSCLDC163PW would handle both, your fan and your light.
https://www.legrand.us/wiring-devices/light-switches-and-dimmers/fan-speed-controls/ls-trademaster-single-pole-3-way-preset-dimmer-with-single-pole-3-way-3-speed-de-hummer-fan-control-white/p/lscldc163pw
Date published: 2024-06-03
