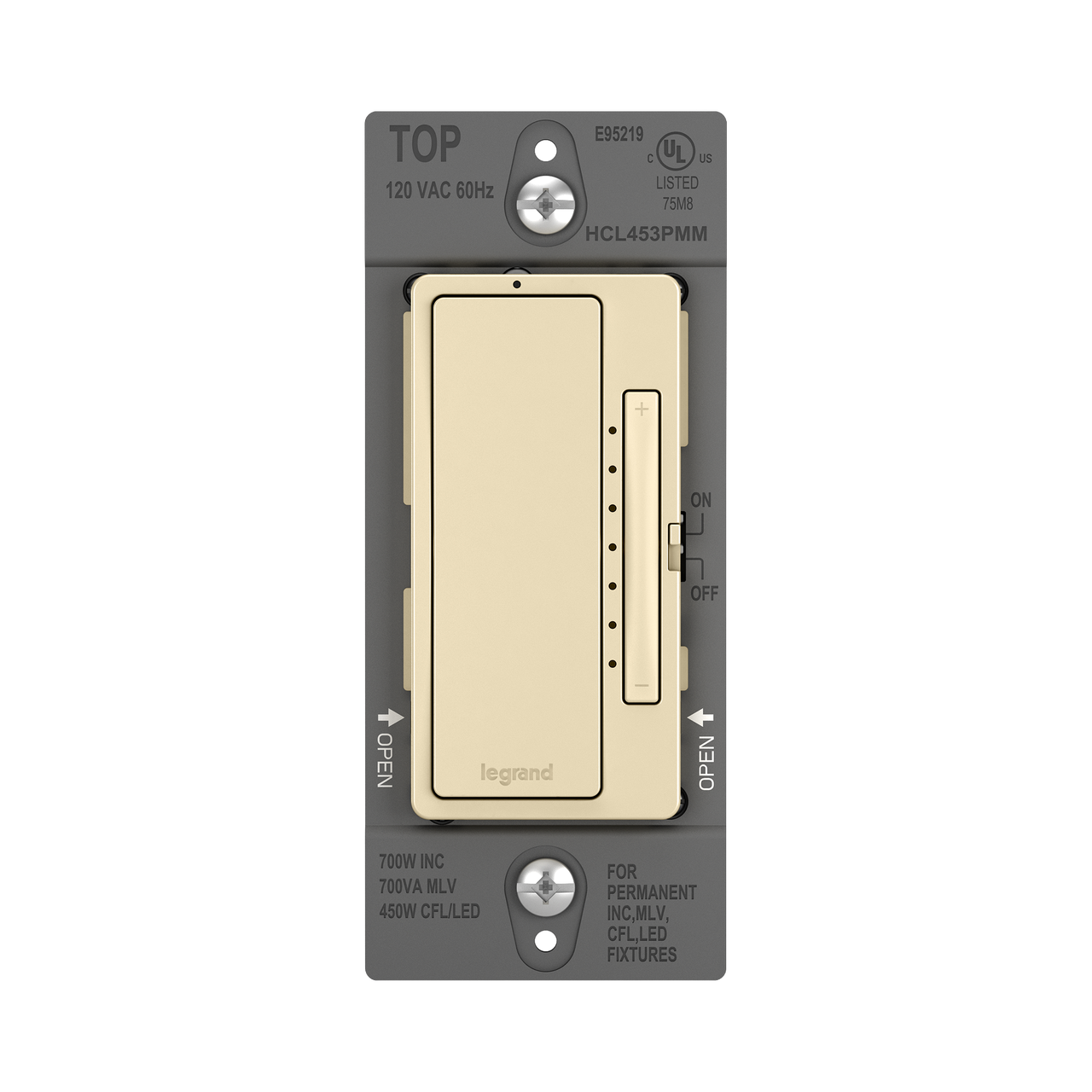

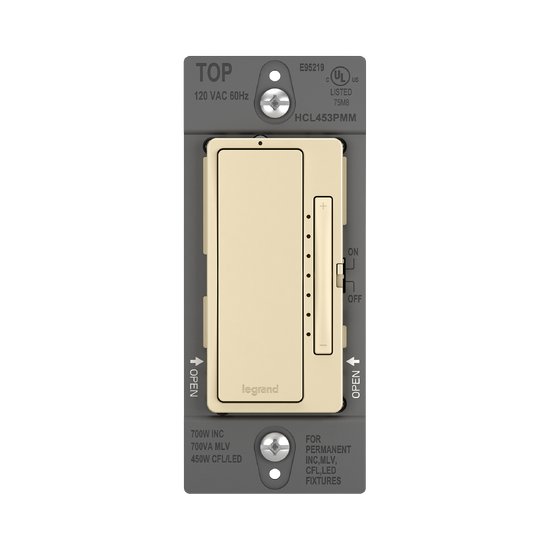

radiant® Multi-Location Master Dimmer, Tri-Color

Name: radiant® Multi-Location Master Dimmer, Tri-Color
Brand: radiant Collection
SKU: HCL453PMMTC

HCL453PMMTC radiant Collection

$58.42 USD

Allows precise dimming control of a light or fixture. Pair with a Multi-Location Remote Dimmer to control the same fixture from another spot in the room. Part of the radiant® Collection, it also features clean lines and smooth control for a sophisticated touch. Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.

Color Tri Color (White, Ivory, Light Almond)

Quantity

In Stock

Free Shipping on Orders Over $49

Send
Save as PDF
Added to Favorites Go to favorites

Remove from favorites?

Something went wrong. Please try again later.

Features

For use with most incandescent, CFL/LED (with the exception of 0 - 10v options) and MLV dimmable bulbs. Installs easily with 3-way wiring for multi-location dimming (use with up to nine remote dimmers).
Can also be used in single-pole applications for solitary control.
Low-profile paddle switch offers smoother On/Off control, while a separate, ergonomic slider allows you to adjust light levels with precision.
Locator light illuminates when switch is off, emitting a soft glow to help you find it in the dark.
Constant memory features returns lights to their previous level after a power failure or outage.
No derating* required in multi-gang applications. *Reducing the maximum wattage a dimmer can handle. This is sometimes required for multi-gang applications.
Features durable, high-impact resistant thermoplastic construction.
More color options available to fit any style, including finishes to match current hardware and lighting trends.
Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.

Specifications

General Info

Product Line	Pass & Seymour
Color	White, Ivory, Light Almond
UPC Number	785007039740
Country Of Origin	China
Features	Indicator Lights
Switch Type	Paddle
Number of Switches	1
Application Sector	Residential
Standard	CSA Listed, cULus, UL Listed
Warranty Type	Limited Lifetime Warranty
Type	Dimmer

Listing Agencies / 3rd Party Agencies

cULus Listed

Yes

Technical Information

Frequency Rating	120VAC 60Hz Hz
Connection	Screw Terminals
Number of Gangs	1
Amperage	15 A
Bulb Compatibility	LED, Incandescent, CFL
Number of Poles	Multi-Location, Single Pole, 3-Way
Wattage	700 W
Mounting Type	Box
Voltage	120 V
Load	Universal
Environmental Conditions	Humidity: Less than 95% non condensing

Resources

Are there any other colors in the radiant multi location dimmer. I'm looking for gray.

Asked by: Jason

Hello Jason, Part number HMKITGRY will allow you to change the face cover that is included with the HCL453PMMW dimmer. Best Regards, Technical Support

Answered by: Justin

Date published: 2023-03-06

I have several HCL453PMMW I am wondering if these are reverse phase dimmers or if they can be switched to reverse.

Asked by: OG

Hello, Unfortunately, the HCL453PMMW does not support reverse phase dimming. Best Regards, Technical Support

Answered by: Justin

Date published: 2023-02-20

I have a 2 HCL453PMMW dimmers that are installed together in box controlling 2 different light set and each has a multi location dimmer as well. I can not dimmer lights if both dimmers are on as it seems one interferes with the other.

Asked by: Kevin Reichel

I would suggest calling into the Technical Support team for assistance in determining the cause and a solution. Radiant products 1.844.957-3783 Mon - Fri: 8am - 6pm EST (excluding holidays) Email Us - tech.support@legrand.us

Answered by: Legrand Technical Support

Date published: 2022-10-18

Are these dimmers programmable, similar to a Lutron Maestro? I'm looking to program the HDL, LDL, and other similar settings

Asked by: PFarjad

Hello PFarjad, Please review the following notes for Dimmer HCL453PMMW. To reduce the risk of overheating and possible damage to this product or other equipment do not use this product to control a receptacle, a motor operated appliance or a transformer based appliance. • Do not use this product with loads whose power requirements exceed the maximum power (stated in watts, amperes or volt-amperes) of the dimmer. • Use only with incandescent, compatible dimmable CFL/LED bulbs which screw into conventional incandescent lamp sockets, or MLV loads (compatible bulbs listed at www.legrand.us). • A 5 watt minimum load is required. • Do not connect this product to a power source other than 120VAC, 60Hz. • Use copper wire only. • Always slide the Air Gap Switch to the full down (OFF) position when changing a light bulb. • For MLV loads: - The maximum VA rating of this dimmer applies to the transformer input of the MLV, not the load connected to the transformer secondary of the MLV. - Do not use to control a solid state electronic low voltage transformer. - Do not use with inoperative or missing lamps. Use of this dimmer with inoperative or missing lamps can create an over current condition which may damage the transformer. Use transformers that incorporate thermal protection or a fuse at the primary windings. Please feel free to contact legrand technical support if you need further assistance. Monday - Friday 8:00am - 6:00pm EST | 844-957-3783 Best regards,

Answered by: Justin

Date published: 2021-09-08

Can the Master Switch be located at either end of a 3 way or anywhere on a 4 way switch circuit? The instruction make it appear that the master switch has to be at the beginning of the line where the main power line comes into the box.

Asked by: Drew

The master dimmer needs to be install on the LINE side of the circuit.

Answered by: Legrand Technical Support

Date published: 2021-03-08

Is the installation video above the best you can do? It doesn't even show an outlet with white wires. It's useless. Why don't the instructions have numbered and consecutive steps rather than side by side and diagrams all over the freaking place?

Asked by: Keep is Simple

Hello, I'm sorry you're having trouble installing your unit. Please feel free to contact our technical support team at 1-800-223-4185. (M-F 8:00am - 6:00pm ET)

Answered by: Legrand Technical Support

Date published: 2020-11-20

I have installed a hcl master and 2 hmr remotes . All wiring is correct used wiring diagram b neutral. The master works fine remotes turn lights on won't turn off or dim . Am I missing something ??

Asked by: Peter

Please contact our Technical Support team directly for assistance with this issue: Radiant products 1.800.223-4162 opt 3 Mon - Fri: 8am - 8pm EST (excluding holidays) Email Us - tech.support@legrand.us

Answered by: Legrand Technical Support

Date published: 2022-10-25

I have two rotary dimmers on one wall, each controlling the rt and let over the bed lights respectively. The main bedroom switch is on another wall. To control all 3 from either wall, I need 3 Masters and 3 remotes on 3 diff frequencies, correct?

Asked by: Dr Colgate

Yes, each light circuit would require a master and remote to control them from either wall.

Answered by: Legrand Technical Support

Date published: 2020-02-17
