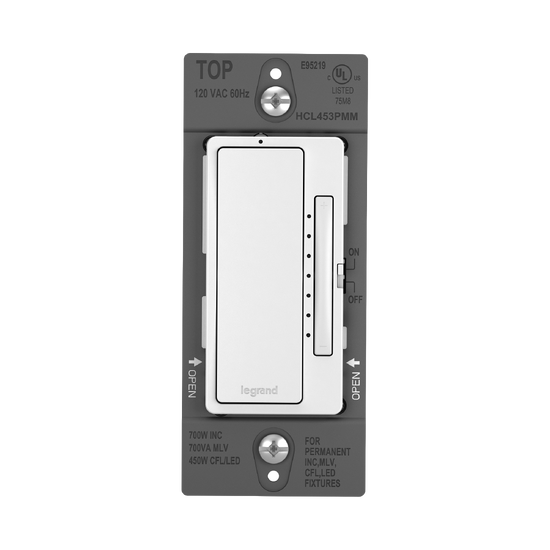

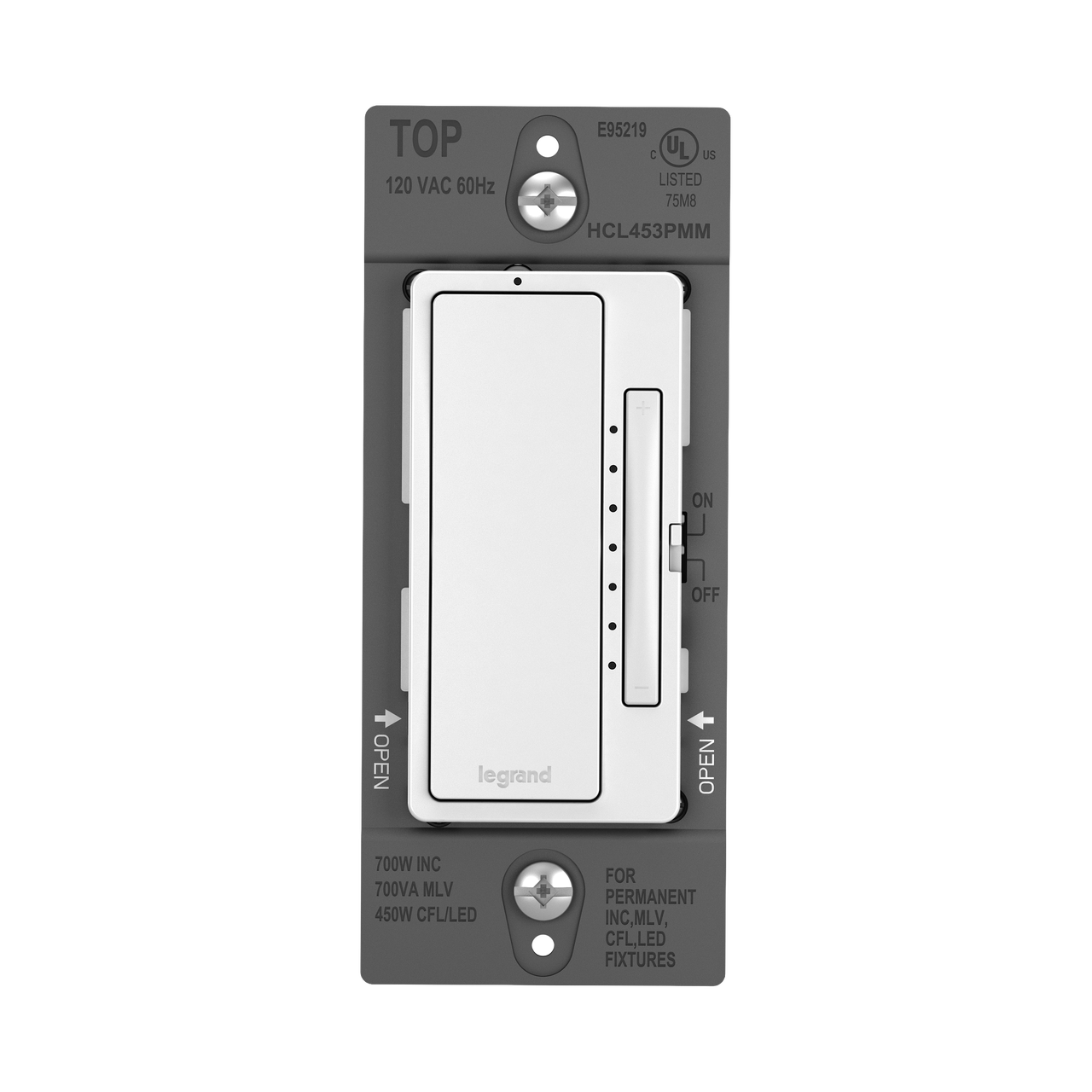

radiant® Multi-Location Master Dimmer, White

radiant Multi-Location Master Dimmer is rated 5.0 out of 5 by 2.
  • y_2024, m_3, d_27, h_9
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.38
  • cp_1, bvpage1
  • co_hasreviews, tv_1, tr_1
  • loc_en_US, sid_HCL453PMMW, prod, sort_[SortEntry(order=HELPFULNESS, direction=DESCENDING), SortEntry(order=POSITIVE_FEEDBACK, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_legrand
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 42ms
  • REVIEWS, PRODUCT

$49.76 USD

Allows precise dimming control of a light or fixture. Pair with a Multi-Location Remote Dimmer to control the same fixture from another spot in the room. Part of the radiant® Collection, it also features clean lines and smooth control for a sophisticated touch. Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.
Color White
Out of Stock on Legrand.us
Where To Buy
  • Send
  • Save as PDF
  • Add to favorites Remove from favorites

Features

  • For use with most incandescent, CFL/LED (with the exception of 0 - 10v options) and MLV dimmable bulbs. Installs easily with 3-way wiring for multi-location dimming (use with up to nine remote dimmers).
  • Can also be used in single-pole applications for solitary control.
  • Low-profile paddle switch offers smoother On/Off control, while a separate, ergonomic slider allows you to adjust light levels with precision.
  • Locator light illuminates when switch is off, emitting a soft glow to help you find it in the dark.
  • Constant memory features returns lights to their previous level after a power failure or outage.
  • No derating* required in multi-gang applications. *Reducing the maximum wattage a dimmer can handle. This is sometimes required for multi-gang applications.
  • Features durable, high-impact resistant thermoplastic construction.
  • More color options available to fit any style, including finishes to match current hardware and lighting trends.
  • Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.

Specifications

General Info
Product Line Pass & Seymour
Color White
Country Of Origin China
Features Indicator Lights
Switch Type Paddle
Number of Switches 1
Application Sector Residential
Standard CSA Listed, cULus, UL Listed
Warranty Type Limited Lifetime Warranty
Type Dimmer
Dimensions
Product Width US 2.5 in
Product Depth US 1.25 in
Product Height US 4.25 in
Listing Agencies / 3rd Party Agencies
cULus Listed  Yes
Technical Information
Frequency Rating 120VAC 60 Hz
Connection Screw Terminals
Number of Gangs 1
Amperage 15 A
Bulb Compatibility CFL, Incandescent, LED
Number of Poles 3-Way, Multi-Location, Single Pole
Wattage 700 W
Mounting Type Box
Voltage 120 V
Load Universal
Environmental Conditions Humidity: Less than 95% non condensing

Reviews

Rated 5 out of 5 by from My favorite dimmer Dimmable from either location. Single tap of either up or down toggles the light off or to the last setting. When off, double tap for the brightest setting.
Date published: 2024-03-10
  • y_2024, m_3, d_27, h_9
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.38
  • cp_1, bvpage1
  • co_hasreviews, tv_1, tr_1
  • loc_en_US, sid_HCL453PMMW, prod, sort_[SortEntry(order=HELPFULNESS, direction=DESCENDING), SortEntry(order=POSITIVE_FEEDBACK, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_legrand
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 3ms
  • REVIEWS, PRODUCT

Questions & Answers

What is the difference between hcl453p and rhcl453p?

Asked by: Elaine Langer Allen
The HCL453 is a multilocation dimmer designed to be used with the companion HMR device. By comparison, the RHCL453 dimmer is used for traditional single pole/3-way applications (1 dimmer with 1 or more switches)
Answered by: Wiremold Tech Support
Date published: 2024-02-28

I installed the HCL453PPM and one HMR to control the lights to a n older Hunter Douglas ceiling fan. The ceiling fan has 4 LED bulbs installed. When l dim to off it works just like it should. 20 secl later 1 bulb will turn on like a night light.

Asked by: DonJames
Hello, thank you for you inquiry. Please give our Technical Support team a call so we can help you troubleshoot your dimming application.
Answered by: Wiremold Tech Support
Date published: 2023-12-27

I am using the HCL453PMM master switch with 4 of the correct HMR's. The switches work great but the breaker, switch, and light have a " buzz" to them. I installed 12 6" canless Sylvania gimble 1000L lights. Are these fixtures compatible with this switch?

Asked by: Dm1991
For specific application information, please review the specifications of the HCL453PMM and the lighting fixtures you're using. Specifically as it relates to the dimming method (Forward/Reverse as well as the total wattage for the fixture). If you'd like to discuss further, please give our Technical Support Team a call at 844-957-3783.
Answered by: Wiremold Tech Support
Date published: 2023-06-07

Are there any other colors in the radiant multi location dimmer. I'm looking for gray.

Asked by: Jason
Hello Jason, Part number HMKITGRY will allow you to change the face cover that is included with the HCL453PMMW dimmer. Best Regards, Technical Support
Answered by: Justin
Date published: 2023-03-06

I have several HCL453PMMW I am wondering if these are reverse phase dimmers or if they can be switched to reverse.

Asked by: OG
Hello, Unfortunately, the HCL453PMMW does not support reverse phase dimming. Best Regards, Technical Support
Answered by: Justin
Date published: 2023-02-20

I have a 2 HCL453PMMW dimmers that are installed together in box controlling 2 different light set and each has a multi location dimmer as well. I can not dimmer lights if both dimmers are on as it seems one interferes with the other.

Asked by: Kevin Reichel
I would suggest calling into the Technical Support team for assistance in determining the cause and a solution. Radiant products 1.844.957-3783 Mon - Fri: 8am - 6pm EST (excluding holidays) Email Us - tech.support@legrand.us
Answered by: Legrand Technical Support
Date published: 2022-10-18

Are these dimmers programmable, similar to a Lutron Maestro? I'm looking to program the HDL, LDL, and other similar settings

Asked by: PFarjad
Hello PFarjad, Please review the following notes for Dimmer HCL453PMMW. To reduce the risk of overheating and possible damage to this product or other equipment do not use this product to control a receptacle, a motor operated appliance or a transformer based appliance. • Do not use this product with loads whose power requirements exceed the maximum power (stated in watts, amperes or volt-amperes) of the dimmer. • Use only with incandescent, compatible dimmable CFL/LED bulbs which screw into conventional incandescent lamp sockets, or MLV loads (compatible bulbs listed at www.legrand.us). • A 5 watt minimum load is required. • Do not connect this product to a power source other than 120VAC, 60Hz. • Use copper wire only. • Always slide the Air Gap Switch to the full down (OFF) position when changing a light bulb. • For MLV loads: - The maximum VA rating of this dimmer applies to the transformer input of the MLV, not the load connected to the transformer secondary of the MLV. - Do not use to control a solid state electronic low voltage transformer. - Do not use with inoperative or missing lamps. Use of this dimmer with inoperative or missing lamps can create an over current condition which may damage the transformer. Use transformers that incorporate thermal protection or a fuse at the primary windings. Please feel free to contact legrand technical support if you need further assistance. Monday - Friday 8:00am - 6:00pm EST | 844-957-3783 Best regards,
Answered by: Justin
Date published: 2021-09-08

Can the Master Switch be located at either end of a 3 way or anywhere on a 4 way switch circuit? The instruction make it appear that the master switch has to be at the beginning of the line where the main power line comes into the box.

Asked by: Drew
The master dimmer needs to be install on the LINE side of the circuit.
Answered by: Legrand Technical Support
Date published: 2021-03-08
