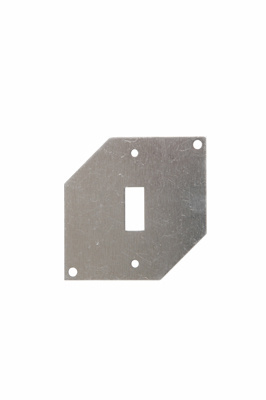

Thermoplastic, Heavy Cast Aluminum Covers Spec Grade, Mounting Plate for Toggle Switch, Gray

46001P Pass and Seymour

Heavy Cast Aluminum Cover Morta-in Applications, Mounting Plate for Toggle Switch,

Send
Save as PDF
Added to Favorites Go to favorites

Remove from favorites?

Something went wrong. Please try again later.

Features

Adapter, frame, and cover are heavy cast aluminum.
No. 8-32 screws hold assembly firmly in place.
Covers comply with 2005 NEC Section 406.8(A) and 406.8(B)(2).
Mortar keys provide positive holding means within wall.
Neoprene gasket seals cover to frame. Moisture and dust cannot enter enclosure.
Two keys provided for lock.
Purchase enclosure and mounting plate separately.
Mounts on 4 in. or 4-11/16 in. box.

Specifications

General Info

Color	Gray
Type	Weatherproof Cast Cover
Material	Aluminum, Cast Metals
Finish	Satin
Application Sector	Commercial, Industrial
Product Line	Pass & Seymour
Country Of Origin	United States
Features	Dust Resistant, Moisture Resistant
Standard	UL/CSA Listed
Cover Type	Mortared-In Applications
UPC Number	785007179224

Dimensions

Product Depth US	0.78 in
Product Height US	3.094 in
Product Length US	3.094 in
Product Width US	3.063 in

Technical Information

Box Cover Position	Vertical
Indoor/Outdoor	Indoor
Mounting Type	Box Mounted
Number of Gangs	1
Number of Outlets	1
