Blue Controlled GFCI Receptacle
Blue Controlled GFCI Receptacle

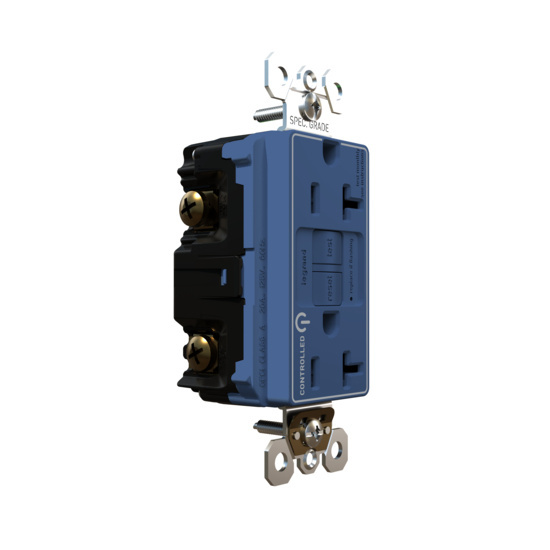

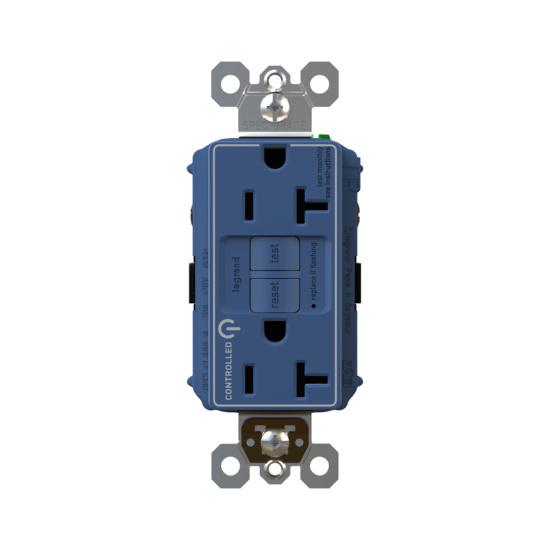

radiant® Tamper-Resistant and Dual Controlled 20A Duplex Self-Test GFCI Receptacles with SafeLock® Protection, 125V, Blue

2097TRCDBL radiant Collection
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 20ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

The Pass & Seymour® Dual Controlled Specification Grade Self-Test GFCI receptacle with SafeLock® Protection conducts an automatic test every three seconds, ensuring it’s always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock Protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected.
Color Blue
Where To Buy
  • Send
  • Save as PDF
  • Add to favorites Remove from favorites
Features

Features

  • Protects against shock caused by ground-fault occurrences. Unlike breaker alternatives, GFCI receptacles make it easier to fix trips with a reset button right on the device.
  • Conducts an industry-leading automatic self-test every 3 seconds. If the device ever fails, the indicator light flashes to signal it should be replaced.
  • Equipped with proven SafeLock protection feature: if critical components are damaged and protection is lost, power to the outlet is disconnected.
  • Extends GFCI protection to "downstream" outlets when used with feed-thru wiring configuration. Note: Will cut power to face and downstream outlets if wired incorrectly.
  • Protects children with a patented tamper-resistant shutter system that prevents improper insertion of foreign objects, complete with "invisi-shutters" for an invisible effect.
  • Replaces any standard receptacle with ease, in as little as 10 minutes.
  • Features durable, high-impact resistant thermoplastic construction.
  • More color options available to fit any style, including finishes to match current hardware and lighting trends.
  • Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.
  • 10kA short circuit rating
  • 20 Amp feed-thru capacity
Specifications

Specifications

General Info
Product Line Pass & Seymour
Color Blue
Finish Matte
UPC Number 785007432879
Country Of Origin China
Application Sector Commercial
Type GFCI, Outlet, Tamper-Resistant
Dimensions
Product Width US 1.73 in
Product Depth US 1.03 in
Product Height US 4.2 in
Additional Information
RoHS Conformant Yes This product meets the material restrictions of Article 4 of the RoHS Directive (2011/65/EU), including Commission Delegated Directive 2015/863.
Listing Agencies / 3rd Party Agencies
CSA Listed Yes
cULus ListingNumber  E140596
cULus Listed  Yes
CSA File Number  CSA C22.2 No. 223, CSA C22.2 No. 42
Technical Information
Amperage 20 A
Indoor/Outdoor Indoor
Environmental Conditions 85% (relative humidity, non-condensing)
Resources
Related Products
Reviews

Reviews

  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 3ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;
Questions & Answers

Questions & Answers

Can the wall plate be ordered alone?

Asked by: Dahlia H
Hello, The included Green wall plate is not sold separately at this time. Best Regards, Technical Support
Answered by: Justin
Date published: 2023-07-05

Does the device include the matching green wall plate? Can the wall plate be ordered alone?

Asked by: Dahlia H
Hello, The 2097TRCDGN is supplied with a matching part number (color) TP26 nylon wall plate. Best Regards, Technical Support
Answered by: Justin
Date published: 2023-07-03
