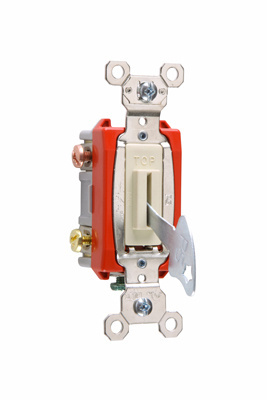

Industrial Extra Heavy Duty Specification Grade Lock Switch Back and Side Wire, Ivory

PS20AC3IL Pass and Seymour

3-Way Lock Switch, Back and Side-Wire, 20A 120/277V (Key can be removed in both positions)

Color Ivory

Send
Save as PDF
Added to Favorites Go to favorites

Remove from favorites?

Something went wrong. Please try again later.

Features

External screw-pressure-plate back and side wired. Accepts #14 - #10 AWG copper or copper-clad conductors.
Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce.
Cam controls fast ''make'' and positive ''break'' to minimize arcing.
Heavy-duty bumper pads for quiet operation.
High strength thermoplastic polycarbonate toggle.
Back body made of glass-reinforced nylon.
Locking support provides resistance to face and back body separation.
Oversized silver alloy contacts for long life and better heat dissipation.
Grounding terminal is standard.
Shallow design for ease of installation.
Strap nickel-plated steel with integral ground.
Auto-ground clip assures positive ground.
For covering patents, see www.legrand.us/patents.
For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

General Info

Color	Ivory
Type	Switch
Material	Thermoplastic
Finish	Matte
Application Sector	Commercial, Industrial
Product Line	Pass & Seymour
Country Of Origin	Mexico
Features	Chemical Resistant
Wall Plate Included	No
Number of Switches	1
Switch Type	Toggle
Warranty Type	1-Year Limited Warranty
Standard	UL20, FEDSPEC
UPC Number	785007196474

Dimensions

Product Depth US	1.073 in
Product Height US	3.281 in
Product Width US	1.32 in

Listing Agencies / 3rd Party Agencies

cULus ListingNumber	140597
cULus Listed	Yes

Technical Information

Amperage	20 A
Connection Location	Back and Side
Requires Neutral Wire	No
Wire Connection Type	Screw Terminals
Indoor/Outdoor	Indoor
Load Rating	20 A @ 120/277 VAC
Load Type	CFL, Fluorescent, Halogen, Incandescent, LED, Universal, Xenon
Mounting Type	Wall Box
Number of Gangs	1
Number of Poles	3-Way
Throw Type	Double Throw
Terminal Accommodation	#14 AWG - #10 AWG
Voltage	120 VAC, 277 VAC

Resources

what is the part number for the keys. i need to order extra

Asked by: jack

The key part number is 500K: https://www.legrand.us/radiant/search.aspx?q=500k

Answered by: Legrand Technical Support

Date published: 2020-06-20
