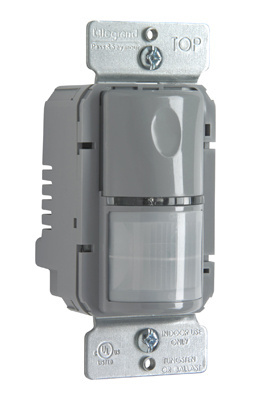

Discontinued - PlugTail® Commercial Passive Infrared (PIR) Wall Switch Sensor, Gray

Replaced by WS-301-G

Commercial Occupancy Sensor (PIR) PlugTail Automatic Wall Switch with 3 Wire Technology. Compact decorator design, shallow 1"" back body, positive detection indicator with no minimum load requirement. Available in Ivory, White, Gray and Light Almond.

For detailed PlugTail^� information, visit our PlugTail Headquarters.

Color Gray

Send
Save as PDF
Added to Favorites Go to favorites

Remove from favorites?

Something went wrong. Please try again later.

Features

Detection Signature Analysis provides high immunity to RFI and EMI.
Integrated light level sensor works from 10 to 150 footcandles.
Compatible with all electronic and magnetic ballasts, PL lamp balasts, compact fluorescent.
Adjustable time delay of 30 seconds to 30 minutes.
Dual 120/277VAC operation, Adjustable sensitivity from 20% to 100%, 180 degree coverage of up to 900 sq. ft.
Patented voltage drop protection and zero crossing circuitry.
No exposed terminals create a fingersafe application before, during, and after installation.
Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
For covering patents, see www.legrand.us/patents. :

Specifications

General Info

Color	Gray
Application Sector	Commercial, Industrial
Product Line	Pass & Seymour
Country Of Origin	Mexico
Replaced by Part Number	WS-301-G
Standard	CSA Listed, cULus, UL Listed
UPC Number	785007016994

Listing Agencies / 3rd Party Agencies

cULus Listed

Yes

Technical Information

Environmental Conditions	Indoor Use Only
Response Frequency	60 Hz
Sensitivity	60Hz
Sensor Type	Occupancy
Target Size	180 deg

Resources

What is the function of the line power reversing switch?

Asked by: Philip

If the sensor fails to operate after the initial warm-up period, use a small flat blade screwdriver to pry off button and slide the line power reversing switch to the opposite position. This will re-initiate the warm-up period. In most cases You will not need to use this switch.

Answered by: Legrand Technical Support

Date published: 2018-09-27

I have an application that needs a four way sensing function in a commercial hallway. Can you please advise as to the best solution for this simple application . i usually use a WS-250 sensor and I'd like to stay with Wattstopper. Schematic????

Asked by: WATG

The Wattstopper PW301 Commerical grade sensor is design for "multi-way" application so you could 3 of them for a 4way setup. https://www.legrand.us/wattstopper/sensors/optional-neutral-occupancy-sensors/pw-301.aspx

Answered by: Legrand Technical Support

Date published: 2024-04-14
