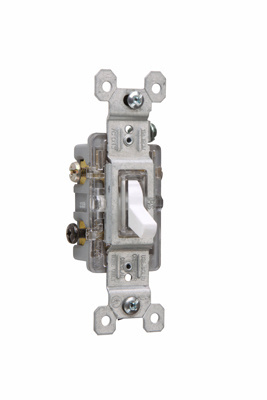

15A,120V Trademaster® 3-Way Illuminated Toggle Switch, White
663WSLG
Pass and Seymour
Bazaarvoice SAP Hybris Integration Version 2.8.1
Trademaster® 3-Way/Illuminated Toggle Switch
- Send
- Save as PDF
-
Added to Favorites Go to favoritesRemove from favorites?Something went wrong. Please try again later.
Specifications
General Info
| Color | White | ||
| Type | Switch | ||
| Material | Thermoplastic | ||
| Finish | Satin | ||
| Application Sector | Hospitality, Residential | ||
| Product Line | Pass & Seymour | ||
| Country Of Origin | Mexico | ||
| Features | Extra Long Strap, Illuminated | ||
| Wall Plate Included | No | ||
| Number of Switches | 1 | ||
| Switch Type | Toggle | ||
| Warranty Type | 1-Year Limited Warranty | ||
| Standard | UL 20 | ||
| UPC Number | 785007663594 |
Dimensions
| Product Depth US | 1.09 in | ||
| Product Height US | 4.195 in | ||
| Product Width US | 1.25 in |
Listing Agencies / 3rd Party Agencies
| cULus ListingNumber | 140597 | ||
| cULus Listed | Yes |
Additional Information
| Product Environmental Profile | Yes |
Technical Information
| Amperage | 15 A | ||
| Connection Location | Side Only | ||
| Requires Neutral Wire | Yes | ||
| Wire Connection Type | Push Wire | ||
| Indoor/Outdoor | Indoor | ||
| Load Rating | 15 A @ 120 VAC | ||
| Load Type | CFL, Fluorescent, Halogen, Incandescent, LED, Universal, Xenon | ||
| Mounting Type | Wall Box | ||
| Number of Gangs | 1 | ||
| Number of Poles | 3-Way | ||
| Throw Type | Single Throw | ||
| Terminal Accommodation | #14 AWG - #12 AWG | ||
| Voltage | 120.0 V |
Resources
Specifications
Supporting Document
Product Environmental Profile
Cutsheet
Reviews
Bazaarvoice SAP Hybris Integration Version 2.8.1
Questions & Answers
will this switch be illuminated when off
Hello,
The Three-Way Illuminated Toggle Switch, part number 663WSLG, will be illuminated when the load is off.
Best Regards,
Technical Support
Date published: 2024-01-29
The toggle switch flashes when turned off?
Hello Julia,
The toggle is not meant to flash. Please contact our Technical Support team to troubleshoot further.
Thank you!
Date published: 2023-10-09
Can this switch be used as a one-way switch?
Yes, it can be wired as a single pole switch.
Date published: 2022-08-31
Will this switch work with led bulbs.
Illuminated switches are designed for Incandescent lights only and may cause CFL/LED bulbs to flicker.
Date published: 2023-06-24
Most bulbs are led. Why should this switch not be used
Illuminated switches have a very small amount of leak through current ti light the switch, which may cause CFL/LED bulbs to flicker when the switch is in the OFF position.
Date published: 2021-01-19
Can this switch be installed at either end of the three way system?
Yes this can be installed on either end of a 3way system
Date published: 2018-07-16
