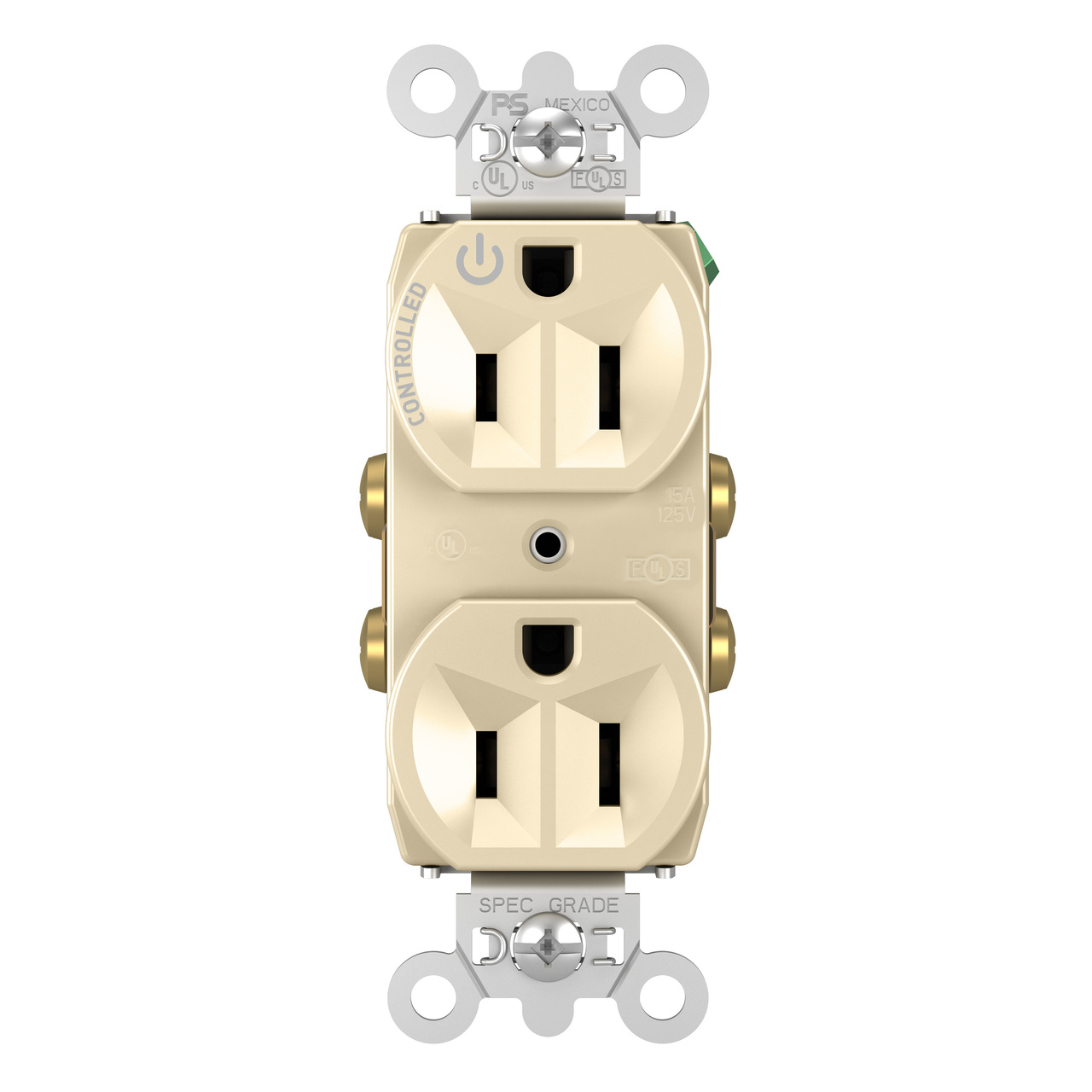

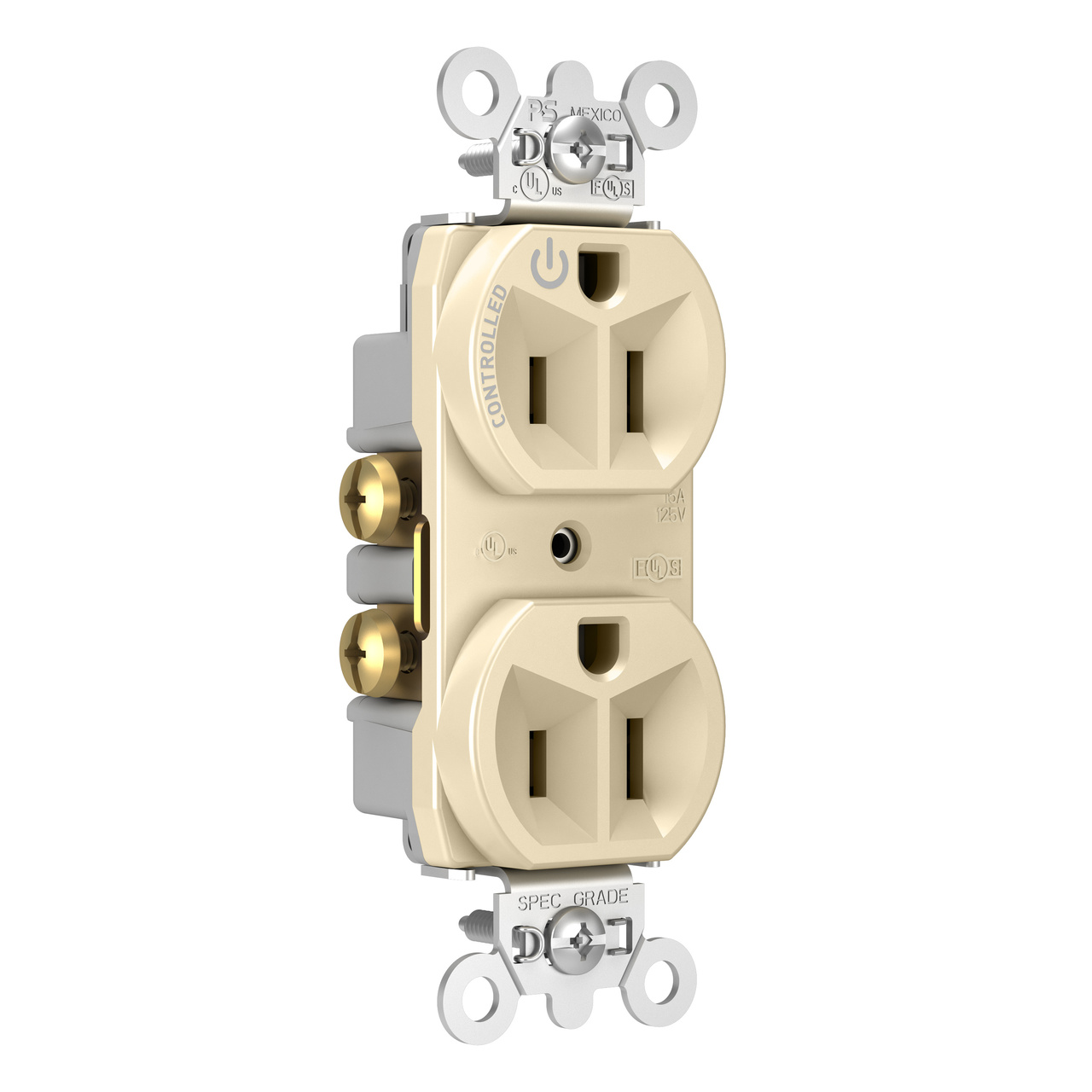

15A, 125V Half-Controlled Plug Load Controllable Receptacle, Ivory

Permanent controlled receptacle marking allows for long-lasting, easy identification of controlled receptacle for end-users. NEMA-approved and compliant with 2014 NEC, CA Title 24, and ASHRAE Energy Efficiency Standard 90.1.

Color Ivory

Send
Save as PDF
Added to Favorites Go to favorites

Remove from favorites?

Something went wrong. Please try again later.

Features

Can be wired to any number of system-based or stand-alone plug load control solutions.
Factory-broken split-circuit tab allows for 50% plug load control to be achieved in one duplex receptacle.
Corrosion-resistant, plated and tabbed steel strap locked in to face and back body to resist pulling away from face/body assembly.
.032 inch thick, brass, triple-wipe power contacts for lasting retention.
Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
Impact-resistant nylon face.
8 hole internal screw-pressure-plate back wire terminals accept #10 - #14 AWG solid or stranded copper or copper-clad conductors.
Terminal compartments isolated from each other for positive conductor containment.
Tri-drive terminal and mounting screws.
Auto-ground clip assures positive ground.
For covering patents, see www.legrand.us/patents.
For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

General Info

Color	Ivory
Application Sector	Commercial
Product Line	Pass & Seymour
Country Of Origin	Mexico
Features	Half-Controlled, Plugload, Single Piece Plated Steel Mounting Strap
Wall Plate Included	No
Number of Receptacles	2
Outlet Type	Straight Blade
Warranty Type	1-Year Limited Warranty
Standard	FEDSPEC
UPC Number	785007038170

Dimensions

Product Depth US	0.78 in
Product Height US	2.635 in
Product Width US	1.322 in

Listing Agencies / 3rd Party Agencies

cULus Listed

Yes

Technical Information

Amperage	15 A
Connection Location	Back and Side
Wire Connection Type	Screw Terminals
Indoor/Outdoor	Indoor
NEMA Configuration Code	5-15R
Number of Poles	Double Pole
Number of Wires	3
Voltage	125.0 V
Wire Size	14 - 10 AWG

Resources

Does Pass and Seymour offer a 20 amp half controlled GFCI receptacle or only dual controlled?

Asked by: Beau

Only a dual controlled version of the device is currently offered.

Answered by: Wiremold Tech Support

Date published: 2024-03-28

Is this receptacle made in a Tamper Resistant (TR) model. I need several hundred of the half-switched receptacles for some high-rise residential and hotel projects, but they must be TR.

Asked by: Anonymous

Yes, the tamper resistant model number is TR5262CHW: https://www.legrand.us/wiring-devices/outlets-and-receptacles/commercial-receptacles/hard-use-spec-grade-plug-load-controllable-receptacle-15a-125v-white/p/tr5262chw?text=tr5262chw

Answered by: Legrand Technical Support

Date published: 2022-08-03
