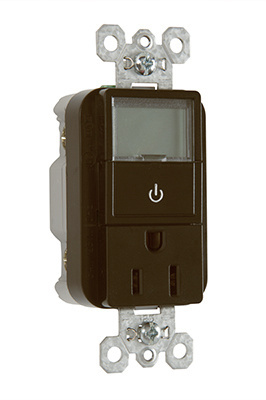

Discontinued - 15A 125V PLUGLOAD TIMER, BROWN **

  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 24ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;


New requirements for reducing energy consumption in commercial buildings are here. With devices that are so easy to understand, install and use, our full line of P&S Plug Load Controllable solutions will take a load off your mind and a load off your customers' electric bills.
Color None
Application Sector Commercial
  • Commercial
  • Send
  • Save as PDF
  • Add to favorites Remove from favorites

Features

  • Wire Size: #14 - #10 AWG Copper Conductor Only

Specifications

General Info
Color Brown
Application Sector Commercial
Product Line Pass & Seymour
Country Of Origin China
Features Brass Mounting Strap, Plugload, Timer
Wall Plate Included No
Number of Receptacles 1
Outlet Type Energy Saving On/Off
Warranty Type 1-Year Limited Warranty
Standard FEDSPEC
UPC Number 785007040067
Dimensions
Product Depth US 1.25 in
Product Height US 2.68 in
Product Width US 1.73 in
Listing Agencies / 3rd Party Agencies
cULus Listed  Yes
Technical Information
Amperage 15 A
Connection Location Back and Side
Wire Connection Type Screw Terminals
Indoor/Outdoor Indoor
NEMA Configuration Code 5-15R
Number of Poles Double Pole
Number of Wires 3
Operating Temperature -40°-60°C
Operating Temperature Max 60 °C
Operating Temperature Min -40 °C
Voltage 125.0 V
Wire Size 14 - 10 AWG

Reviews

  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 4ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

Questions & Answers

Can the timer be daisy chained to control multiple switch-controlled receptacles in a space or does the timer not have that capability?

Asked by: Matt777
Thank you for your inquiry. Plug load control can be achieved with one or more receptacles, as the combination time/receptacle offers downstream wiring capabilities.
Answered by: Justin
Date published: 2024-10-07

When is going to be available? I am trying to buy them since Dec 2023. I need 6 pieces.

Asked by: Italo Solari
Thank you for your inquiry. Please contact Pass & Seymour Customer Support (844-957-3783) for further assistance with Pricing & Availability request. Pass & Seymour Customer Support 844-957-3783 - Mon - Fri: 8am - 6pm EST (excluding holidays)
Answered by: Justin
Date published: 2024-03-28

What happens if power goes off. Will the timer have to be reprogrammed once power is restored?

Asked by: Mike
The timer has a 48hr memory hold so as long as the power is restored within that time frame, you will not lose your programming.
Answered by: Legrand Technical Support
Date published: 2020-12-07
