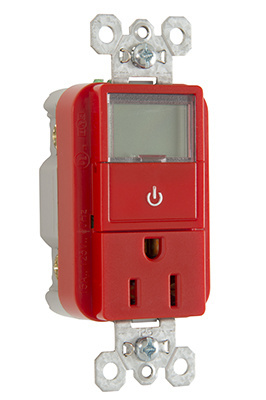

15A, 125V Heavy Duty Spec Grade Plug Load Timer Receptacle, Red

New requirements for reducing energy consumption in commercial buildings are here. With devices that are so easy to understand, install and use, our full line of Pass and Seymour Plug Load Controllable solutions will take a load off your mind and a load off your customers electric bills.

Color Red

Application Sector Commercial

Commercial

Send
Save as PDF
Added to Favorites Go to favorites

Remove from favorites?

Something went wrong. Please try again later.

Features

Wire Size: #14 - #10 AWG Copper Conductor Only

Specifications

General Info

Color	Red
Application Sector	Commercial
Product Line	Pass & Seymour
Country Of Origin	China
Features	Brass Mounting Strap, Plugload, Timer
Wall Plate Included	No
Number of Receptacles	1
Outlet Type	Energy Saving On/Off
Warranty Type	1-Year Limited Warranty
Standard	RoHS, CSA Listed, CulUS, UL Listed, FSUL, FEDSPEC
UPC Number	785007039771

Dimensions

Product Depth US	1.25 in
Product Height US	2.68 in
Product Width US	1.73 in

Listing Agencies / 3rd Party Agencies

cULus Listed

Yes

Technical Information

Amperage	15 A
Connection Location	Back and Side
Wire Connection Type	Screw Terminals
Dielectric Strength	Withstands 2000V minimum
Environmental Conditions	UL94 V2
Indoor/Outdoor	Indoor
NEMA Configuration Code	5-15R
Number of Poles	Double Pole
Number of Wires	3
Operating Temperature	-40°-60°C
Operating Temperature Max	60 °C
Operating Temperature Min	-40 °C
Phase	Single
Voltage	125.0 V
Wire Size	14 - 10 AWG

Resources

Can the timer be daisy chained to control multiple switch-controlled receptacles in a space or does the timer not have that capability?

Asked by: Matt777

Thank you for your inquiry. Plug load control can be achieved with one or more receptacles, as the combination time/receptacle offers downstream wiring capabilities.

Answered by: Pass & Seymour Technical Support

Date published: 2024-10-07

When is going to be available? I am trying to buy them since Dec 2023. I need 6 pieces.

Asked by: Italo Solari

Thank you for your inquiry. Please contact Pass & Seymour Customer Support (844-957-3783) for further assistance with Pricing & Availability request. Pass & Seymour Customer Support 844-957-3783 - Mon - Fri: 8am - 6pm EST (excluding holidays)

Answered by: Pass & Seymour Technical Support

Date published: 2024-03-28

What happens if power goes off. Will the timer have to be reprogrammed once power is restored?

Asked by: Mike

The timer has a 48hr memory hold so as long as the power is restored within that time frame, you will not lose your programming.

Answered by: Legrand Technical Support

Date published: 2020-12-07
