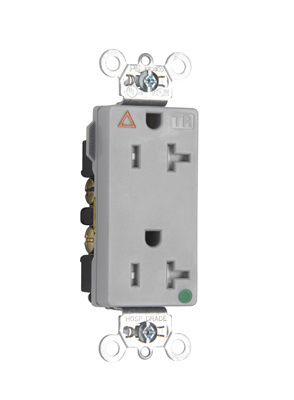

Tamper-Resistant Isolated Ground Decorator Hospital Grade Receptacle, Back and Side Wire, 20A, 125V, Gray

Tamper-Resistant Isolated Ground DecoratorHospital Grade Duplex Receptacle, Back and Side Wire, 20amp 125volt, White.For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.

Color Gray

Send
Save as PDF
Added to Favorites Go to favorites

Remove from favorites?

Something went wrong. Please try again later.

Features

IG symbol and Isolated Ground markings for easy identification and circuit delineation.
Triple-wipe brass contacts ensure lasting, positive contact with plug blades.
High-impact resistant nylon face resists impacts and scrapes.
Corrosion-resistant plated steel strap.
Patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation.
Plastic barrier isolates grounding terminal from mounting strap and metal boxes.
Side and internal screw-pressure-plate back wire capability with #14 - #10 AWG copper or copper-clad, solid or stranded wire.
Auto-ground clip assures positive ground.
For covering patents, see www.legrand.us/patents.
For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact

Specifications

General Info

Color	Gray
Application Sector	Commercial
Product Line	Pass & Seymour
Country Of Origin	Mexico
Features	Decorator Style, Single Piece Plated Steel Mounting Strap
Wall Plate Included	No
Number of Receptacles	2
Outlet Type	Hospital Grade, Tamper-Resistant
Warranty Type	1-Year Limited Warranty
Standard	cULus UL498, FEDSPEC
UPC Number	785007012392

Dimensions

Product Depth US	1.25 in
Product Height US	3.625 in
Product Width US	1.187 in

Listing Agencies / 3rd Party Agencies

cULus ListingNumber	140596
cULus Listed	Yes

Technical Information

Amperage	20 A
Connection Location	Back and Side
Wire Connection Type	Screw Terminals
Dielectric Strength	Withstands 2000V minimum
Environmental Conditions	Flammability: UL94 V2
Indoor/Outdoor	Indoor
Is Tamper-Resistant	Yes
NEMA Configuration Code	5-20R
Number of Poles	Double Pole
Number of Wires	3
Operating Temperature	-40°-60°C
Operating Temperature Max	60 °C
Operating Temperature Min	-40 °C
Voltage	125.0 V
Wire Size	14 - 10 AWG
