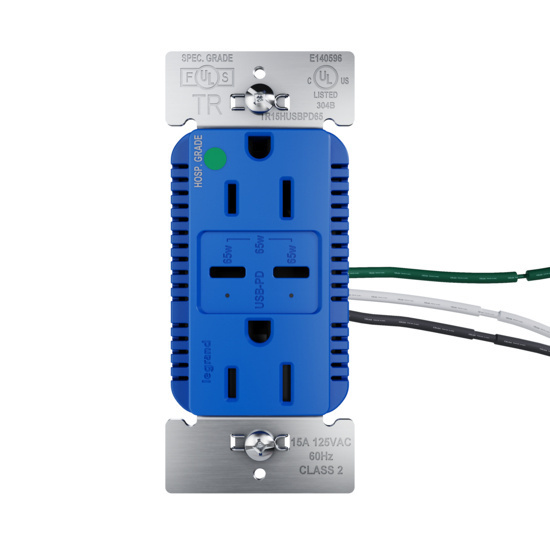

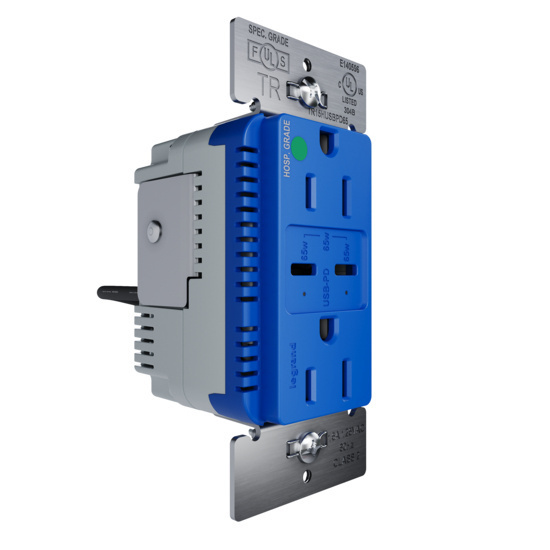

65W Hospital Grade USB Outlet, Type C, 15A, Tamper-Resistant, Blue

TR15HUSBPD65BL Pass and Seymour

Elevate the power and convenience in your healthcare spaces with Legrand's 65W USB Outlet, equipped with dual Type-C ports and Power Delivery for high-capacity charging. Designed for safe, efficient charging of essential devices – including smartphones, tablets and small laptops like the 13-inch MacBook Pro and Chromebooks – this outlet provides an industry-leading power solution tailored for the future of healthcare power needs.

Color Blue

Send
Save as PDF
Added to Favorites Go to favorites

Remove from favorites?

Something went wrong. Please try again later.

Features

Built for intelligent charging, the outlet detects and delivers the precise amount of power needed to maximize charging speeds
Provides fast and convenient built-in charging through two USB Type-C ports, accommodating modern devices without an adapter
Includes multiple layers of overcurrent protection, ensuring the outlet and devices can charge at optimal levels in high traffic settings
All Legrand USB Outlets are manufactured through high-quality design, sourcing and production, and backed by a Limited Lifetime Warranty
Protects children with a patented tamper-resistant shutter system that prevents improper insertion of foreign objects, complete with "invisi-shutters" for an invisible effect
Simple and easy-to-wire lead reduces installation time
Helpful indicator light lets you see charging status at a glance. Light glows yellow while charging is in progress, and shows green once the device battery is 90% charged
More color options available to fit any style or space
Carries a Fed Spec Rating

Specifications

General Info

Color	Blue
Application Sector	Healthcare, Hospital Grade
Product Line	Pass & Seymour
Country Of Origin	China
Features	USB-C Charging
Wall Plate Included	No
Number of Receptacles	2
Outlet Type	Hospital Grade, Tamper-Resistant, USB-Charging
Warranty Type	Limited Lifetime Warranty
Standard	UL, CSA, NEC, FEDSPEC, NFPA 70

Dimensions

Product Depth US	1.52 in
Product Height US	1.94 in
Product Length US	4.88 in
Product Width US	2.99 in
Product Weight US	0.422 lb

Listing Agencies / 3rd Party Agencies

cULus Listed

Yes

Additional Information

Energy Savings	No
RoHS Compliant	Yes		This product meets the material restrictions of Article 4 of the RoHS Directive (2011/65/EU), including Commission Delegated Directive 2015/863.

Technical Information

Amperage	15 A
Connection Location	Back Only
Flanged	No
Wire Connection Type	Wire Leads
Indoor/Outdoor	Indoor
USB Wattage	65 W
NEMA Configuration Code	5-15R
Number of Poles	2 Pole
Number of USBs	2
Number of Wires	3
Operating Temperature	-40°-60°C
Operating Temperature Max	60 °C
Operating Temperature Min	-40 °C
Voltage	15.0 V, 5.0 V, 9.0 V
