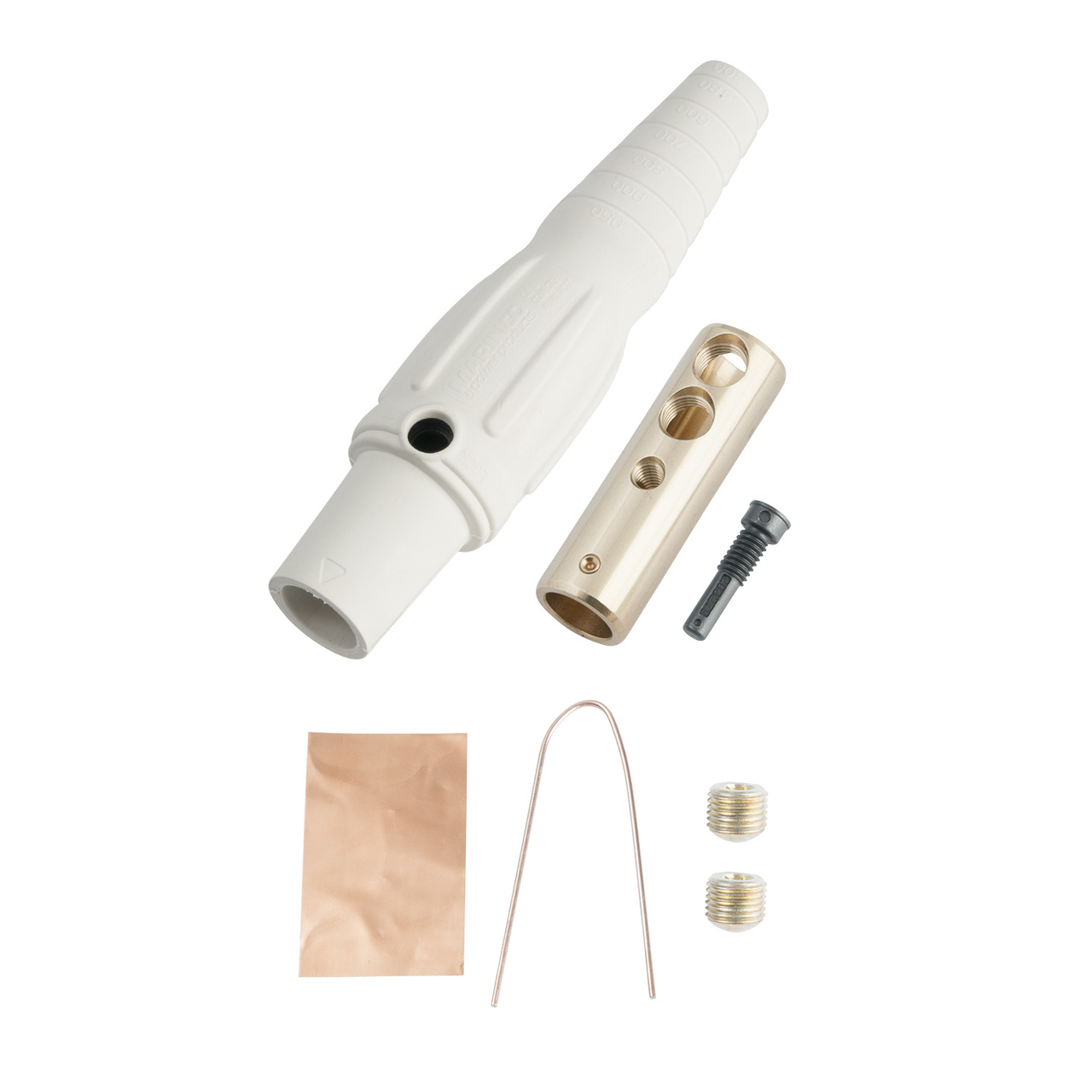

Series 16 In-Line Connectors

400A 600V, Cable Size #2 - 2/0, Female Cam-Type Plug, Green

Color White

Send
Save as PDF
Added to Favorites Go to favorites

Remove from favorites?

Something went wrong. Please try again later.

Features

Thermoplastic elastomer housing for outstanding impact and chemical resistance
Exceptional seal for maintaining NEMA Type 3R and 4 integrity
Non-conductive retaining screw helps to insure no contact with live parts, along with providing stability to the fully assembled product
Heavy-duty brass male and female contacts provide a superior and consistent means of conductivity
Heavy-duty hex set screws allow greater termination torque
Copper wire provides quality strain relief
Copper shim bundles wire strands to reduce ''splaying.''

General Info

Technical Information

Amperage	400 A
Flanged	No
Environmental Conditions	Operating Temperature: Maximum continuous +75°C, minimum -40°C without impact: Flammability UL94 V2: Enclosure: NEMA Type 3R and 4
Indoor/Outdoor	Indoor
Number of Poles	Single Pole
Terminal Accommodation	2/0
Voltage	600.0 V
