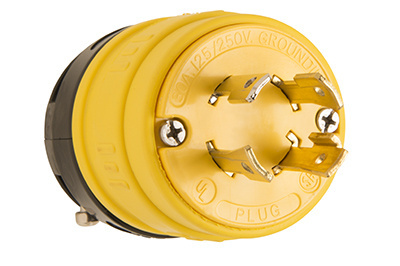

Rubber Dust-Tight Locking Plug, Yellow
2874
Pass and Seymour
Bazaarvoice SAP Hybris Integration Version 2.8.1
Locking Dust-Tight Rubber Plug, 30amp 125/250volt, NEMA Configuration L14-30
- Send
- Save as PDF
-
Added to Favorites Go to favoritesRemove from favorites?Something went wrong. Please try again later.
Features
- Thermoplastic elastomer (TPV) construction stands up to impacts,oils, chemicals, heat, and weather
- Two Screw cable clamp secures wire and provides superior strain relief
- Quick lead assembly screws aid in a fast installation
- Industrial strength, brass blades and contacts resist heat rise while providing excellent conductivity
- Keyed body and cover for easy assembly and alignment
- For covering patents, see www.legrand.us/patents.
Specifications
General Info
| Color | Yellow | ||
| Type | Locking, Plug | ||
| Application Sector | Industrial | ||
| Product Line | Pass & Seymour | ||
| Country Of Origin | United States | ||
| Features | Locking | ||
| Warranty Type | 1-Year | ||
| Standard | UL Listed, CSA Listed | ||
| UPC Number | 785007033540 |
Dimensions
| Product Length US | 2.963 in | ||
| Product Width US | 2.3 in |
Technical Information
| Amperage | 30 A | ||
| Flanged | No | ||
| Number of Phases | 1 | ||
| Connector Style | Locking | ||
| Environmental Conditions | Moisture Resistance NEMA 4, 4X, 12, 6, 6P/IP65, 66, 67 (Plug & Connector only) Flammability UL94V0 (boxes & wiring device interiors) Operating Temperature -40°C (without impact) to +60°C continuous UV resistance All exposed material s are UV stabilized | ||
| Indoor/Outdoor | Indoor | ||
| NEMA Configuration Code | L14-30P | ||
| Number of Poles | 3-Way | ||
| Number of Wires | 4 | ||
| Terminal Accommodation | #12 AWG - #6 AWG | ||
| Voltage | 125/250 V |
