Flanged Outlet, Gray

5279SS Pass and Seymour
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 5ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

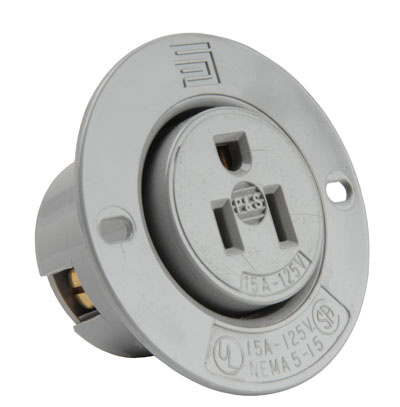

Straight Blade 2-Pole 3-Wire 15A 125V Flanged Outlet
Where To Buy
  • Send
  • Save as PDF
  • Add to favorites Remove from favorites
Features

Features

  • All thermoplastic construction, provides excellent impact and chemical resistance.
  • Available in Gray or Black.
  • NEMA configuration molded on flange, easy field identification.
  • For covering patents, see www.legrand.us/patents.
Specifications

Specifications

General Info
Color Gray
Application Sector Commercial
Product Line Pass & Seymour
Country Of Origin Mexico
Standard UL 498
UPC Number 785007527919
Dimensions
Product Depth US 1.374 in
Product Width US 2.562 in
Listing Agencies / 3rd Party Agencies
CSA Listed Yes
CSA File Number  16063
cUL Listed  Yes
cUL ListingNumber  140596
Technical Information
Amperage 15 A
Number of Poles Double Pole
Number of Wires 3
Wire Size 14 - 10 AWG
Resources
Reviews

Reviews

  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 5ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;
Questions & Answers

Questions & Answers

How does this wire? Are all terminations enclosed within this device or is there a specialty back box needed?

Asked by: JohnD
Thank you for your inquiry. Flanged Outlet, part number 5279SS, is considered a Surface Receptacle, which includes an enclosure and mounting means for surface mounting without the use of a separate outlet box. They are intended for connection to exposed nonmetallic-sheathed cable as permitted by Article 334 of the NEC.
Answered by: Pass & Seymour Technical Support
Date published: 2024-06-03

What is the temperature rating on the 5279SS receptacle?

Asked by: Anonymous
Operating Temperature: -40 - 60 °C
Answered by: Wiremold Tech Support
Date published: 2023-11-30

What are the installation dimensions, i.e. main hole size and two screw hole locations/sizes?

Asked by: Damian
The body size of the 5279SS is 1.660" diameter and the hole spacing is 2.0" apart.
Answered by: Legrand Technical Support
Date published: 2021-08-25

Is there a weather proof cover option for these?

Asked by: C951
