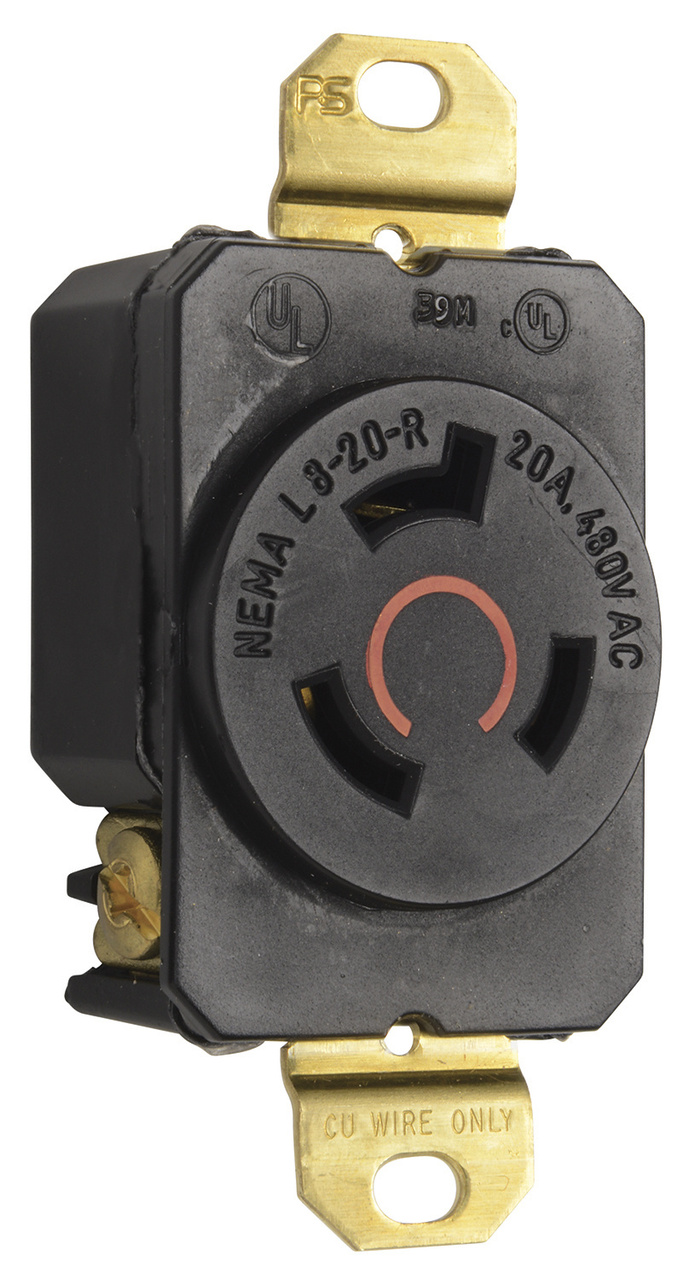

20A NEMA L820 Single Receptacle

Industrial Spec Grade SingleTurnlok Registered 20A 480V Receptacle

Send
Save as PDF
Added to Favorites Go to favorites

Remove from favorites?

Something went wrong. Please try again later.

Features

Compact, impact-resistant nylon face and body are ultrasonically welded together for unrivaled strength.
Face color coding by voltage facilitates locating and mating of proper devices.
One piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance.
Clearly marked NEMA configuration, rating, and third-party listing on each unit's face.
Single-piece, solid brass mounting strap is free of easily loosened rivets found on other brands.
Side and external screw-pressure-plate back wire capability.
Accepts #14 - #10 AWG.

General Info

Dimensions

Listing Agencies / 3rd Party Agencies

cULus ListingNumber	140596
cULus Listed	Yes

Additional Information

Product Environmental Profile

Yes

Technical Information

Amperage	20 A
Connection Location	Back and Side
Wire Connection Type	Screw Terminals
Environmental Conditions	Flammability: UL94 V2: Operating Temperature: Maximum continuous +75°C, minimum -40°C without impact
Indoor/Outdoor	Indoor
NEMA Configuration Code	L8-20R
Number of Poles	Double Pole
Number of Wires	3
Operating Temperature	-40°-75°C
Operating Temperature Max	75 °C
Operating Temperature Min	-40 °C
Voltage	480.0 V
Wire Size	14 - 10 AWG
