20A Non-NEMA Single Receptacle
7410
Pass and Seymour
Bazaarvoice SAP Hybris Integration Version 2.8.1

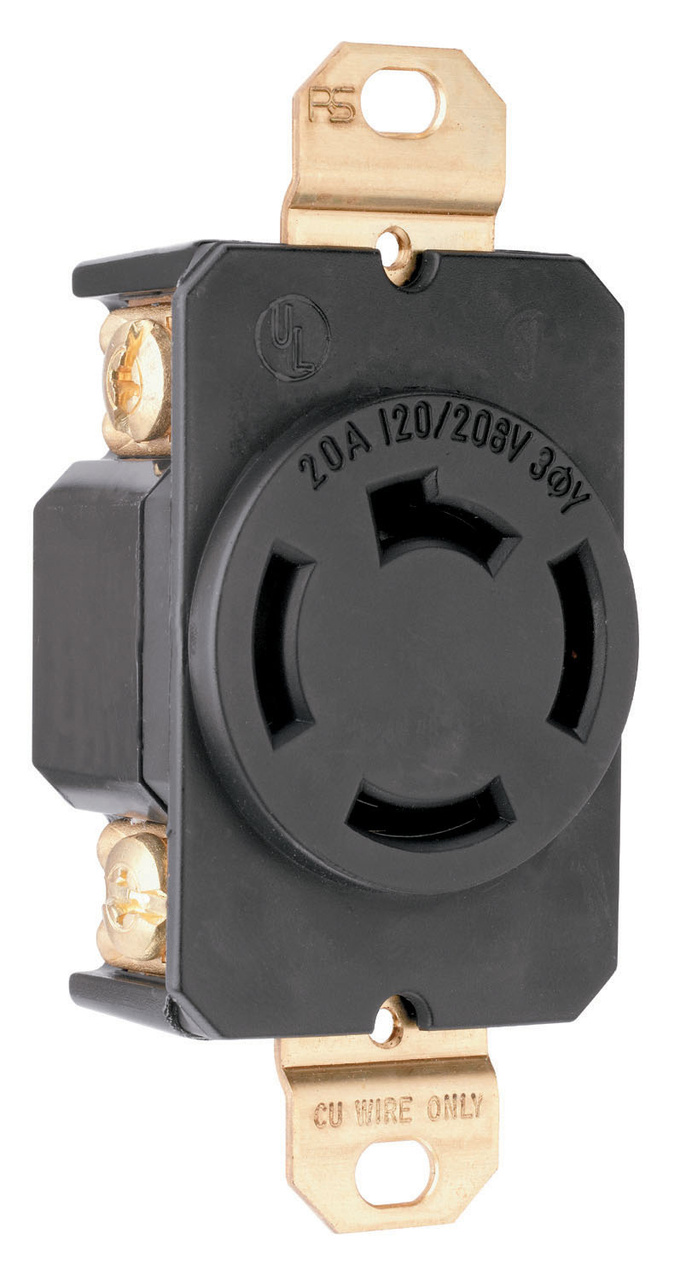

Receptacle 4-Wire 20A 120/208Volt Turnlok Registered
- Send
- Save as PDF
-
Added to Favorites Go to favoritesRemove from favorites?Something went wrong. Please try again later.
Product Details
Receptacle 4-Wire 20A 120/208Volt Turnlok Registered
- Compact, impact-resistant nylon face and body are ultrasonically welded together for unrivaled strength.
- Face color coding by voltage facilitates locating and mating of proper devices.
- One piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance.
- Clearly marked NEMA configuration, rating, and third-party listing on each unit's face.
- Single-piece, solid brass mounting strap is free of easily loosened rivets found on other brands.
- Side and external screw-pressure-plate back wire capability.
- Accepts #14 - #10 AWG.
Specifications
General Info
| Color | Black | ||
| Product Type | Receptacle | ||
| Application Sector | Industrial | ||
| Product Line | Pass & Seymour | ||
| Country Of Origin | Mexico | ||
| Features | Brass Mounting Strap, Impact Resistant | ||
| Wall Plate Included | No | ||
| Number of Receptacles | 1 | ||
| Outlet Type | Locking | ||
| Warranty Type | 1-Year Limited Warranty | ||
| Standard | UL 498 | ||
| UPC Number | 785007893601 |
Dimensions
| Product Depth US | 1.19 in | ||
| Product Height US | 2.37 in | ||
| Product Width US | 1.61 in | ||
| Circular Outlet Diameter | 1.545 in |
Technical Information
| Amperage | 20 A | ||
| Connection Location | Back and Side | ||
| Wire Connection Type | Screw Terminals | ||
| Indoor/Outdoor | Indoor | ||
| Number of Poles | 3-Way | ||
| Number of Wires | 4 | ||
| Phase | Three | ||
| Voltage | 120/208 V | ||
| Wire Size | 14 - 10 AWG |
Resources (4)
Reviews
Bazaarvoice SAP Hybris Integration Version 2.8.1
Q & A
What is a compatible cover for the 7410 receptacle?
The SS720 is a compatible wall plate.
Date published: 2026-10-13
WHAT IS THE COMPATABLE PLUG FOR THE 7410 RECEPTACLE
The recommended plug part number is 7411SS.
Date published: 2026-02-12
