Front of PIR Wall Switch Occupancy Sensor, 120/277V, White

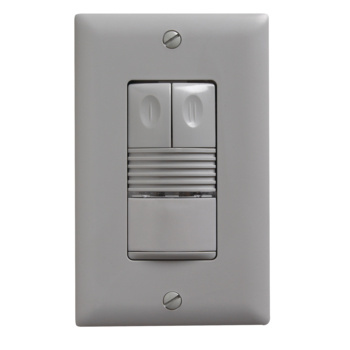

Front of PIR Wall Switch Occupancy Sensor, 2 Relays, 120/277V, Grey with plate cover

Front and side of PIR Wall Switch Occupancy Sensor, 2 Relays, 120/277V, White

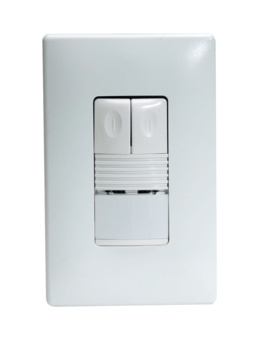

Front of PIR Wall Switch Occupancy Sensor, 2 Relays, 120/277V, White with plate cover

Front of PIR Wall Switch Occupancy Sensor, 2 Relays, 120/277V, Black with plate cover

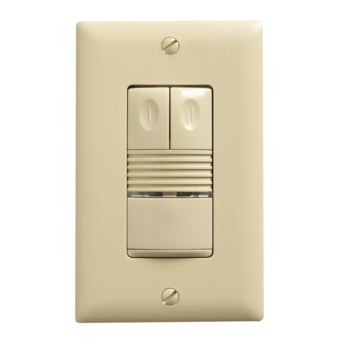

Front of PIR Wall Switch Occupancy Sensor, 2 Relays, 120/277V, Ivory with plate cover

Front of PIR Wall Switch Occupancy Sensor, 2 Relays, 120/277V, Light Almond with plate cover

Discontinued - PIR Wall Switch Occupancy Sensor, 2 Relays, 120/277V, White

PW-200-W Wattstopper

Replaced by PW-302-W

The PW-200 passive infrared (PIR) wall switch sensor turns lights ON and OFF based on occupancy. It contains two relays for controlling two independent lighting loads or circuits, and a variety of features.

Send
Save as PDF
Added to Favorites Go to favorites

Remove from favorites?

Something went wrong. Please try again later.

Features

High sensitivity and dense coverage for exceptional performance
Detection Signature Processing eliminates false triggers and provides immunity to RFI and EMI
Two relays for control of two separate lighting loads or circuits
Color-matched lens and low profile for appealing design
Selectable operation, walk-through, test and presentation modes for increased energy savings and convenience
Defaults to Auto-ON to 50% operation for maximum energy savings
Sensor coverage tested to NEMA Guide Publication WD 7-2000
Detection Signature Processing eliminates false triggers and provides immunity to RFI and EMI
Vandal resistant lens combines precise coverage with durability
Selectable walk-through mode turns lights off three minutes after the room is initially occupied if no motion is detected after the first 30 seconds
Choice of Manual-ON or Auto-ON operation, selectable for each relay
In automatic mode, sensor returns automatically to Auto-ON after lights are turned off manually; ideal for presentations
Service mode allows sensor to operate as a service switch in the unlikely event of a failure

Specifications

General Info

Color	White
Application Sector	Commercial
Product Line	Wattstopper
Country Of Origin	China
Replaced by Part Number	PW-302-W
Features	IR (Infrared), Motion Sensor
Switch Type	Motion Sensor
Warranty Type	5-Year
UPC Number	754182919352

Dimensions

Product Depth US	5.0 in
Product Height US	2.0 in
Product Volume US	30.0 cu in
Product Width US	3.0 in
Product Weight US	0.35 lb

Additional Information

Product Environmental Profile

Yes

Technical Information

Amperage	4.3 A
Requires Neutral Wire	No
Connection Type	Wired
Indicator	LED Light
Number of Buttons	2
Response Frequency	50/60 Hz
Sensor Type	Occupancy
Sensor Technology	Passive Infrared (PIR)
Wattage	1200 W
