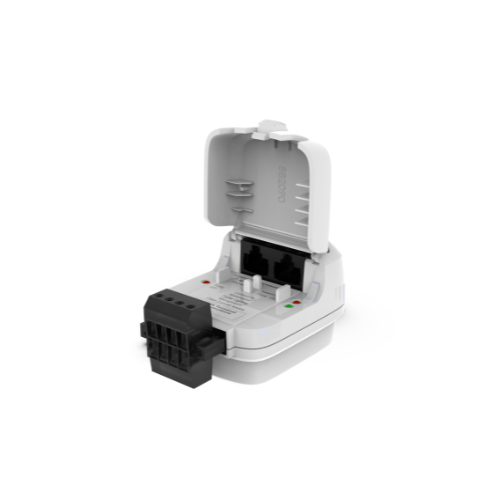

Front Side Image of LMSI-DMX with open lid

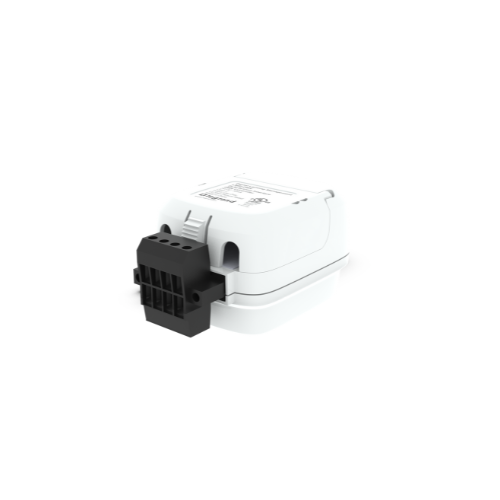

Front Side View Image of LMSI-DMX with closed Lid

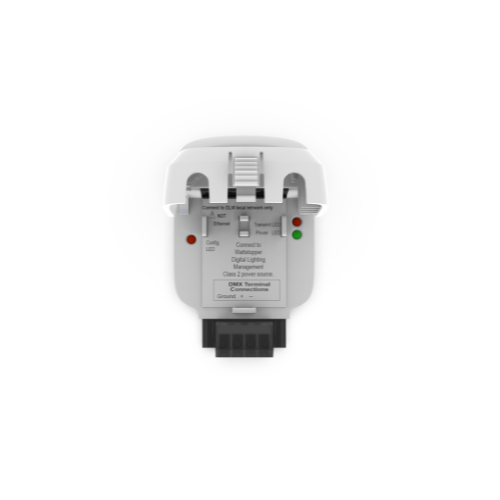

Top View Image of LMSI-DMX with open lid

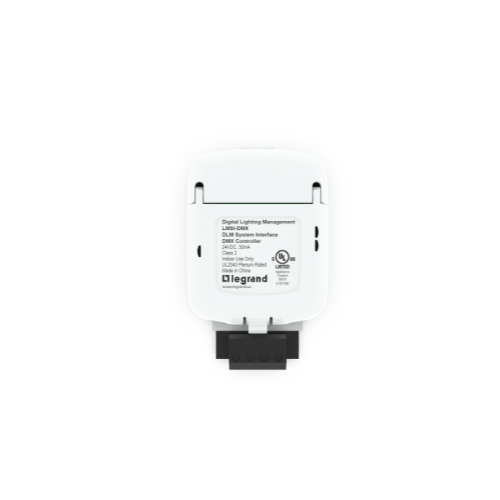

Top View Image of LMSI-DMX with closed lid

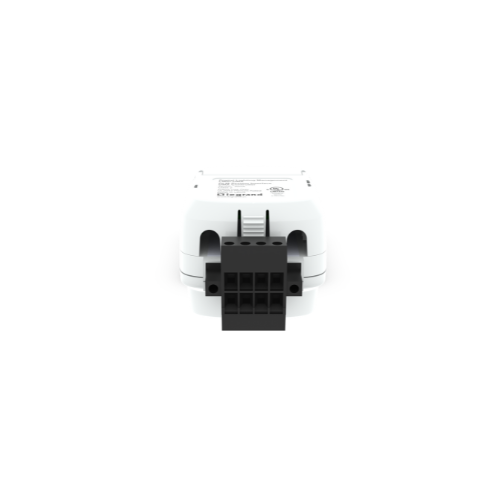

Front View Image of LMSI-DMX with closed lid

DLM System Interface DMX Controller, White

LMSI-DMX Wattstopper
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 5ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

The LMSI-DMX Controller provides up to 6 channels of DMX control for a single fixture or a single load of multiple fixtures. As a native Digital Lighting Management (DLM) device, the LMSI-DMX enables easy integration of DMX fixtures into a DLM solution.

Where To Buy
  • Send
  • Save as PDF
  • Add to favorites Remove from favorites
Features

Features

  • Native DLM device for controlling DMX fixtures with built-in functionality and integration
  • Provides DMX control for a single set of loads sharing up to 6 channels
  • RGBW, RGB, CCT, and custom profiles programmable in LMCS software
  • Class 2 device powered from local DLM network through room controllers
  • May be controlled by DLM daylight sensors, occupancy sensors, local switches, and time-clock signals
  • Plenum-rated housing with DIN rail bracket for box or panel-mounting flexibility
Specifications

Specifications

General Info
Color White
Product Series LMSI
Type Interface
Material ABS
Finish Glossy
Application Sector Commercial
Product Line Wattstopper
Country Of Origin China
Features RGB, RGBW, Tunable White Light
Installation Location Ceiling, Wall
Warranty Type 5-Year
Standard UL, RoHS
UPC Number 754182001330
Works With DMX-Controlled Fixtures
Dimensions
Product Depth US 2.5 in
Product Height US 1.6 in
Product Width US 2.0 in
Product Weight US 0.25 lb
Additional Information
Energy Savings No
Technical Information
Current Draw 30 mA
Topology Free Topology
Wire Connection Type RJ-45, Terminal Block
Connector Type RJ-45, Terminal Block
Dimming Compatibility DMX
Compatibility DLM Wired
Has Battery No
Indicator Power LED, Transmit LED
Indoor/Outdoor Indoor
Input Voltage 24 VDC
Location Rating Dry
Mounting Type DIN Rail, Inside 2-Gang J-Box, Surface
Operating Temperature 32°-158°F
Operating Temperature Max 158 °F
Operating Temperature Min 32 °F
Operating Humidity 0-95% RH (Non-Condensing)
Storage Temperature 23° - 176° F
