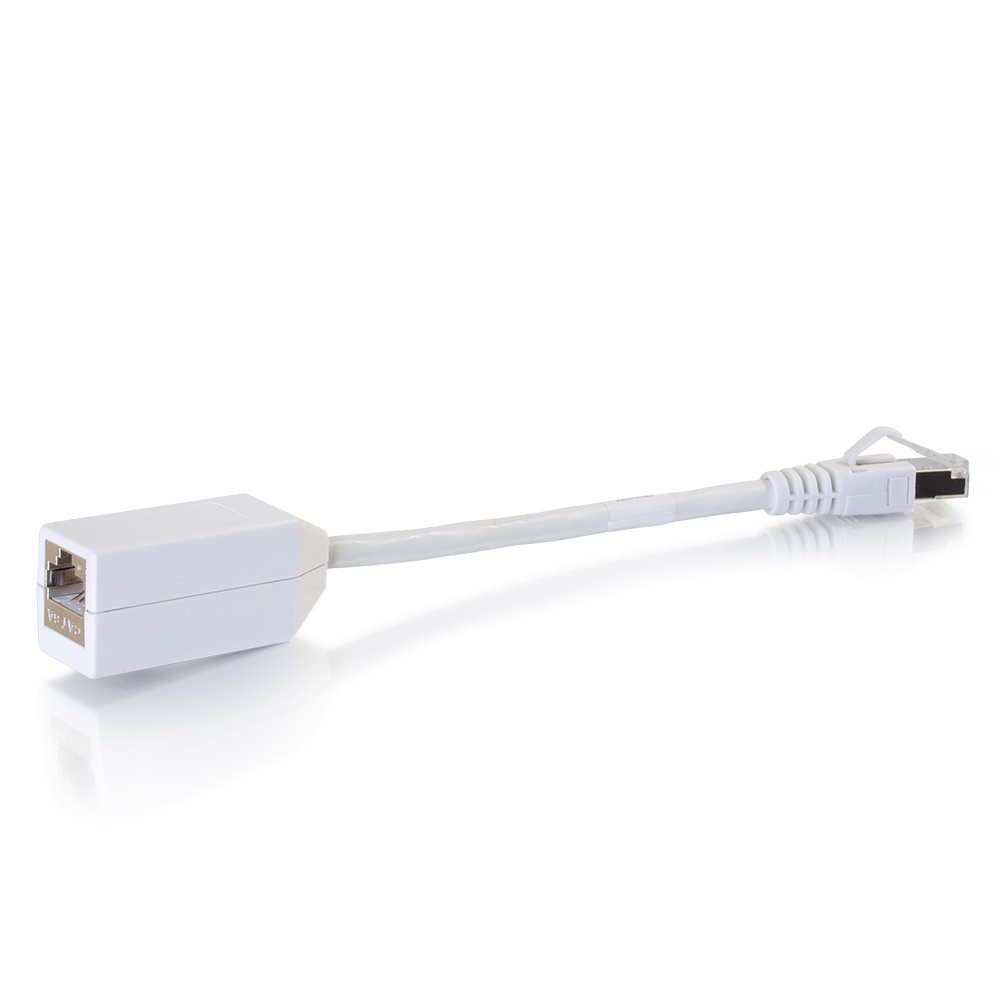

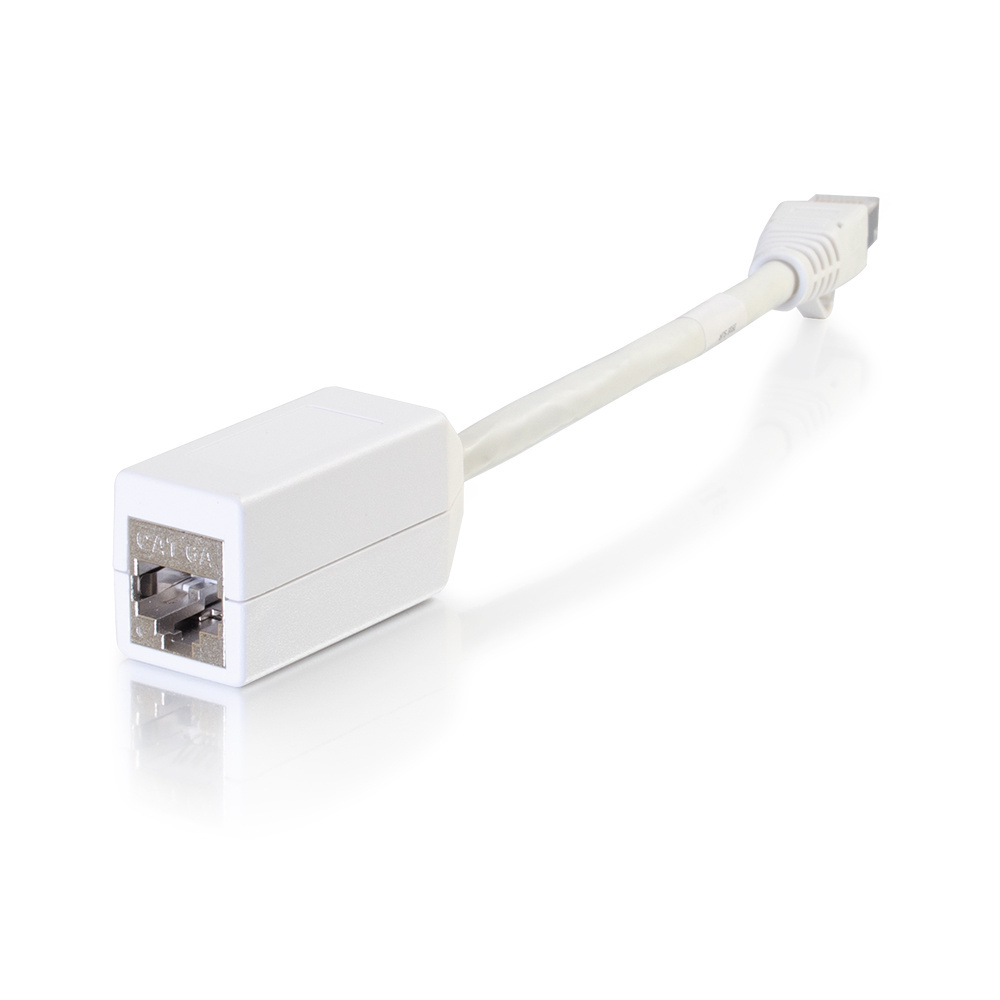

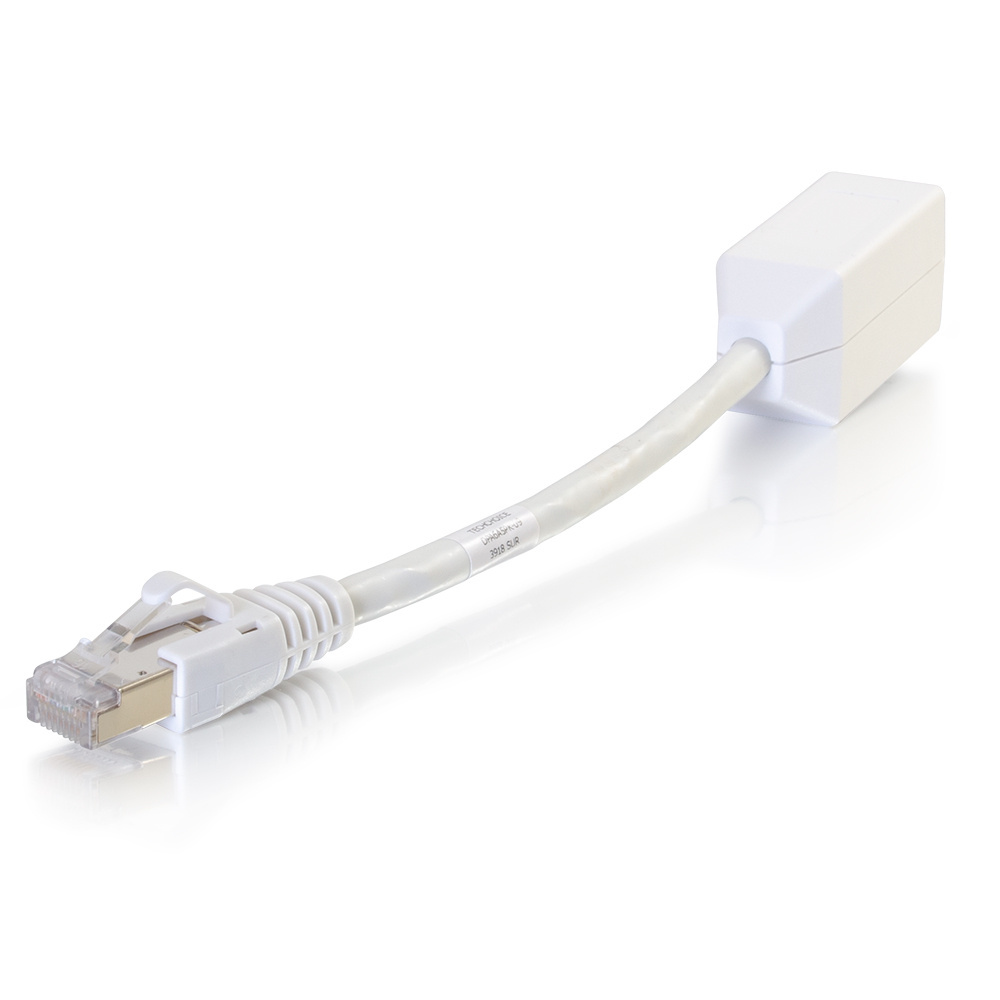

Device Protection Adapter, CAT6A, 5 Pack, White

DPA6A5PK-09 Ortronics

Quick release device protection adapters protect IT equipment and eliminate trip hazards by reducing pull-out force for applications that require a hard wired connection to the LAN. Backward compatible to Cat6 and Cat5e.

Color White

Send
Save as PDF
Added to Favorites Go to favorites

Remove from favorites?

Something went wrong. Please try again later.

Features

Quick Release: Protect IT equipment and eliminate trip hazards
Small Form factor: Adapter is only 8 inches long
Shielded Cable: Can be used in any application

Specifications

General Info

Color	White
Product Series	TechChoice
Type	Protection Adapter, Workstation
Application Sector	Commercial
Product Line	Ortronics
Country Of Origin	Taiwan, Province Of China
Features	Quick Release
Included	Adapter
Warranty Type	5-Year
UPC Number	662875014492

Dimensions

Product Depth US	0.95 in
Product Height US	0.8 in
Cable Length	8 in
Product Width US	7.9 in

Technical Information

Amperage	0.96 A
Cable Diameter	0.236 in
Bend Radius	23.876 mm
Number of Connections	1
Braid	Non-braided Wiring
Connector Type	RJ-45
Cable Type	Shielded
Category Performance Rating	Cat6a
Compatibility	RJ-45
Conductor Material	Copper
Connector Material	Gold
Conductor Stranding	Stranded
Data Transfer Rate	10 Gbps
Indoor/Outdoor	Indoor
Insulation Resistance	500 MOhm
Jacket Material	FRPVC (Flame Retardant Polyvinyl Chloride)
Jacket Rating	LSZH
Number of Ports	1
Operating Temperature	-40°-75°C
Operating Temperature Max	75 °C
Operating Temperature Min	-40 °C
Operating Humidity	0-100% RH (Non-Condensing)
Storage Humidity	0-100% RH (Non-Condensing)
Plating Specification	50 µ in Gold
Shield Type	F/UTP
Shielded/Unshielded	Shielded
Voltage	57.0 V
Wattage	26 W
Wire Gauge	26 AWG
