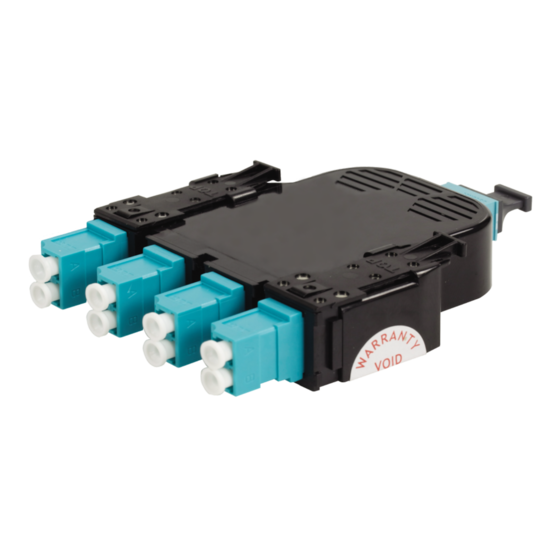

Infinium Ultra HDCA Cassette - 8 Fiber - LC Duplex to MPOM - OM4 - Universal Polarity - Ultra Low Loss

Infinium LM8 Cassettes are designed to enable Base 8 architecture and be part of a complete fiber solution. When combined with matched Infinium Trunks and Infinium Patch Cable Assemblies the solution enables industry leading preterminated performance and universal polarity for simple, fast and consistent and simplified installation.Compatible with Infinium HD Rack Mount Fiber Enclosure with LM8 Drawer Face.

Category Performance Rating Infinium Ultra

Infinium Core
Infinium Ultra

Fiber Type Multi-Mode OM4

Multi-Mode OM4
Single-Mode

Send
Save as PDF
Added to Favorites Go to favorites

Remove from favorites?

Something went wrong. Please try again later.

Features

Ultra Low Loss System
Optimized for 8-fiber transceivers and transmission technologies
100% fiber utilization for 8-fiber transceiver systems
Cable harnesses match common port counts on network devices
Flexibility for easy migration to 40G/100G/400G networks

Specifications

General Info

Color	Aqua
Type	Cassette
Material	Thermoplastic
Application Sector	Commercial, Data Center
Product Line	Ortronics
Country Of Origin	Mexico
Features	Shuttered
Included	Serial Number Label
Warranty Type	5-Year
Standard	TIA-568-C.3
UPC Number	662875031147

Dimensions

Product Depth US	3.56 in
Product Height US	0.84 in
Product Width US	2.75 in

Additional Information

RoHS Compliant

Yes

This product meets the material restrictions of Article 4 of the RoHS Directive (2011/65/EU), including Commission Delegated Directive 2015/863.

Technical Information

Alignment Sleeve Material	Zirconia
Compatibility	HDJ, Infinium
Connectivity Footprint	HDJ
Connector 1	LC Female
Connector 2	LC Female
Durability	500 matings
Fiber Optic Cable Type	OM3, OM4
Number of Fibers	8
Maximum Insertion Loss	0.5 dB
Polarity Type	Universal
Typical Insertion Loss	0.15 dB
Number of Ports	8
Operating Temperature	-10°-60°C
Operating Temperature Max	60 °C
Operating Temperature Min	-10 °C
Operating Humidity	0-80% RH (Non-Condensing)
Performance Level/Tier	Ultra
Shuttered Adapters	Yes
Simplex/Duplex	Duplex
Single/Multimode	Multimode
Storage Temperature	-40° - 75° C
