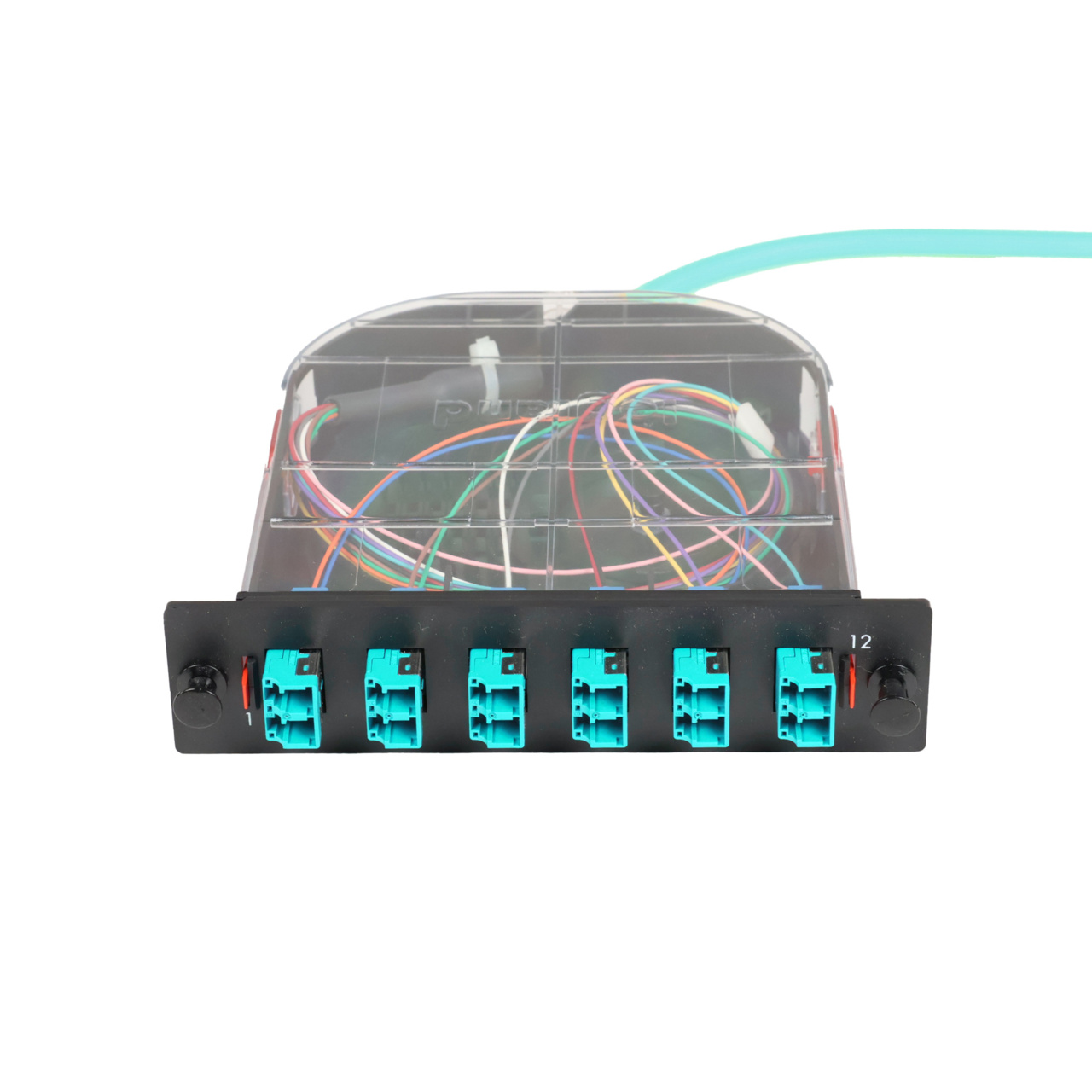

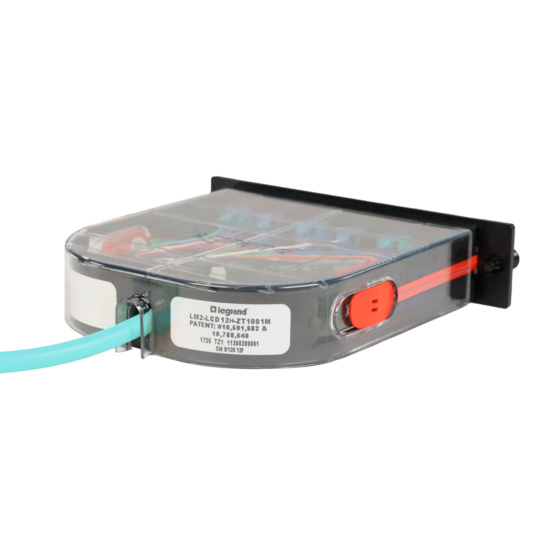

LM2 Cassette, 12 Fiber, LC Duplex (6), Multimode (OM4) to 1 Meter, 900um Tight Buffer Pigtail
Bazaarvoice SAP Hybris Integration Version 2.8.1
The 12 Fiber LM2 LC Tight Buffer Pigtail Cassette is designed to provide an efficient and organized solution for fiber optic terminations and splicing. With a focus on convenience, flexibility, and minimizing disruption to existing infrastructure, it offers a range of benefits that make it an ideal choice for many fiber optic installations. It can be used in data centers and telecom networks with existing fiber trunks or new multifiber cable. It comes pre-loaded with 12 LC pigtails to be mounted in a fiber patch panel or rack for easy access. This setup allows for reduced splicing errors and faster deployment.
- Send
- Save as PDF
-
Added to Favorites Go to favoritesRemove from favorites?Something went wrong. Please try again later.
Features
- Streamlined Installation: Factory-prepared pigtails reduce the need for extensive field termination, simplifying deployment and minimizing installation time.
- Optimized Performance – Minimal Loss: Fusion splicing at the installation point reduces connection loss by eliminating extra interfaces, preserving optical headroom and maintaining signal integrity across the network.
- Fusion Splice Ready: The tight-buffered fiber design provides easy handling and precise fiber alignment, enabling consistent and straightforward splicing for individual terminations.
- Front or Rear Mounting: Simplify installation by mounting from the front or rear of the enclosure panel
Specifications
| Color | Aqua | ||
| Type | Pigtail Cassette | ||
| Application Sector | Commercial, Data Center, Industrial | ||
| Product Line | Ortronics | ||
| Country Of Origin | Mexico | ||
| Features | Shuttered | ||
| Warranty Type | 5-Year | ||
| Standard | RoHS |
| Product Depth US | 5.37 in | ||
| Product Height US | 1.03 in | ||
| Product Length US | 1.0 m | ||
| Product Width US | 4.22 in | ||
| Product Weight US | 1.0 lb |
| CE Certified | Yes | ||
| REACH Compliant | Yes |
| RoHS Compliant | Yes | This product meets the material restrictions of Article 4 of the RoHS Directive (2011/65/EU), including Commission Delegated Directive 2015/863. |
| Compatibility | LM2 | ||
| Fiber Optic Cable Type | OM4 | ||
| Number of Ports | 12 | ||
| Operating Temperature | 0°-70°C, 32°-158°F | ||
| Operating Temperature Max | 70 °C | ||
| Operating Temperature Min | 0 °C | ||
| Performance Level/Tier | Infinium Core | ||
| Rack Units | 1 | ||
| Return Loss | -40 dB | ||
| Simplex/Duplex | Duplex | ||
| Single/Multimode | Multimode | ||
| Storage Temperature | -20° - 70° C |
