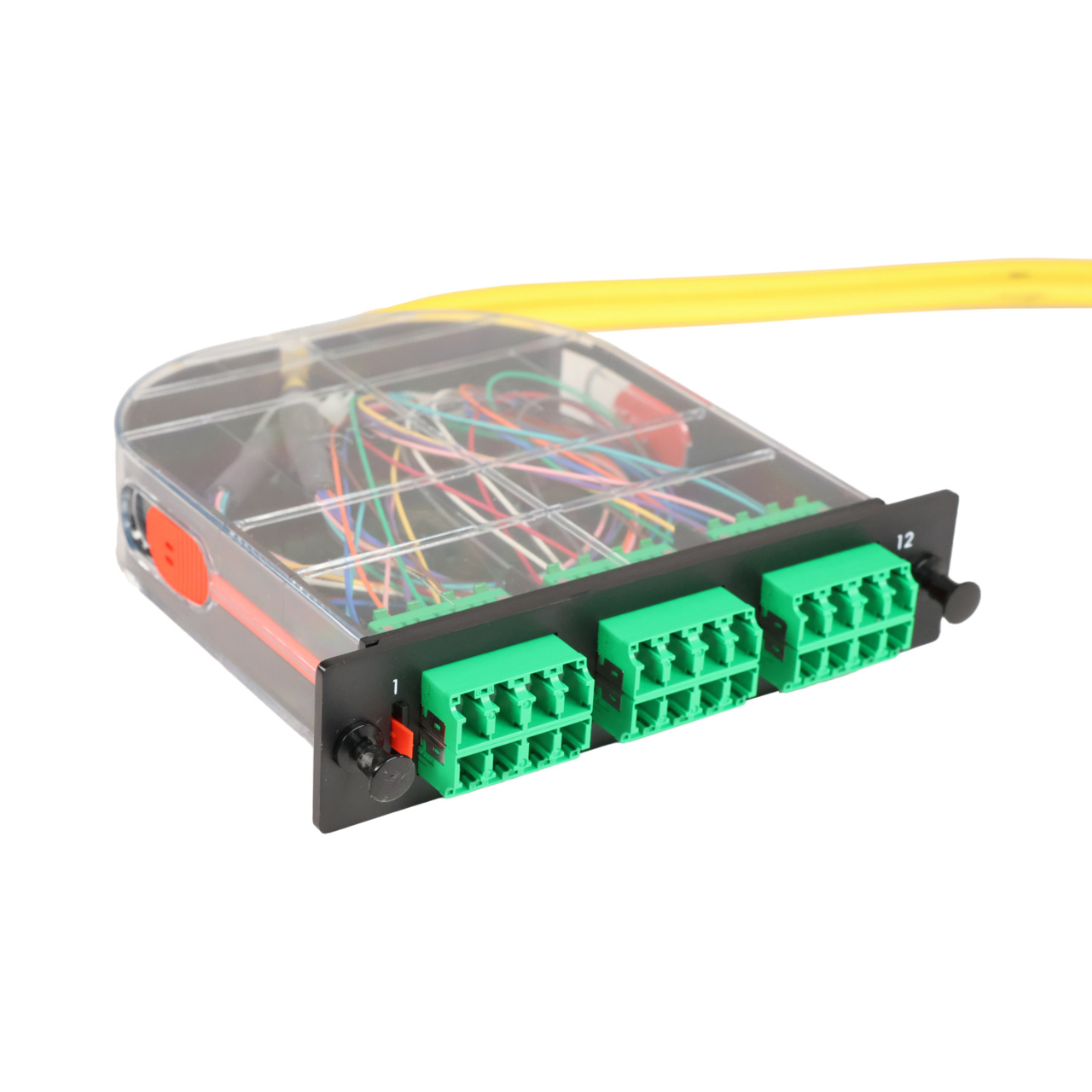

LM2 Cassette, 24 Fiber, LCA Quad (6), Single Mode (OS2) to 1 Meter, 900µm Tight Buffer Pigtail trimetric left

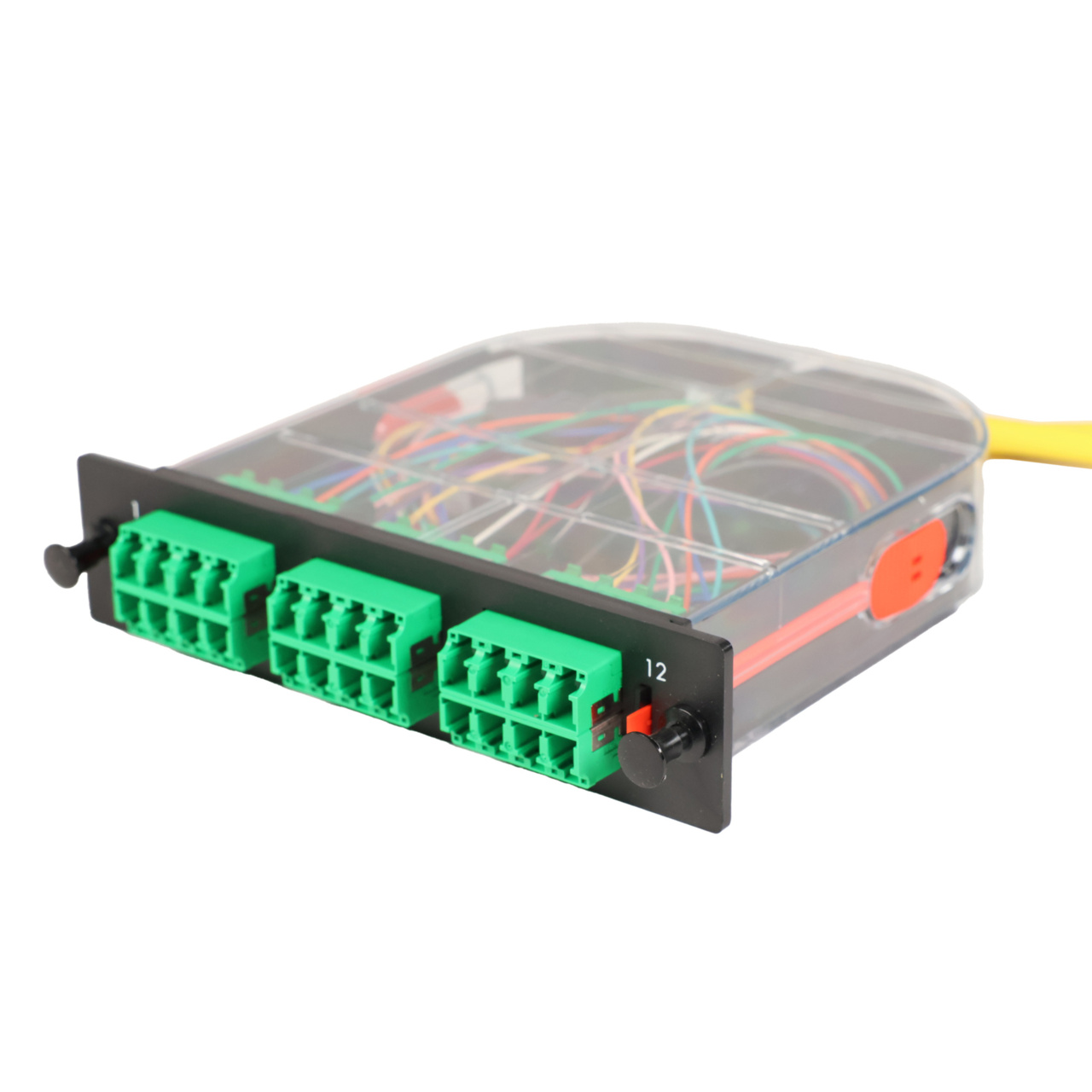

LM2 Cassette, 24 Fiber, LCA Quad (6), Single Mode (OS2) to 1 Meter, 900µm Tight Buffer Pigtail trimetric right

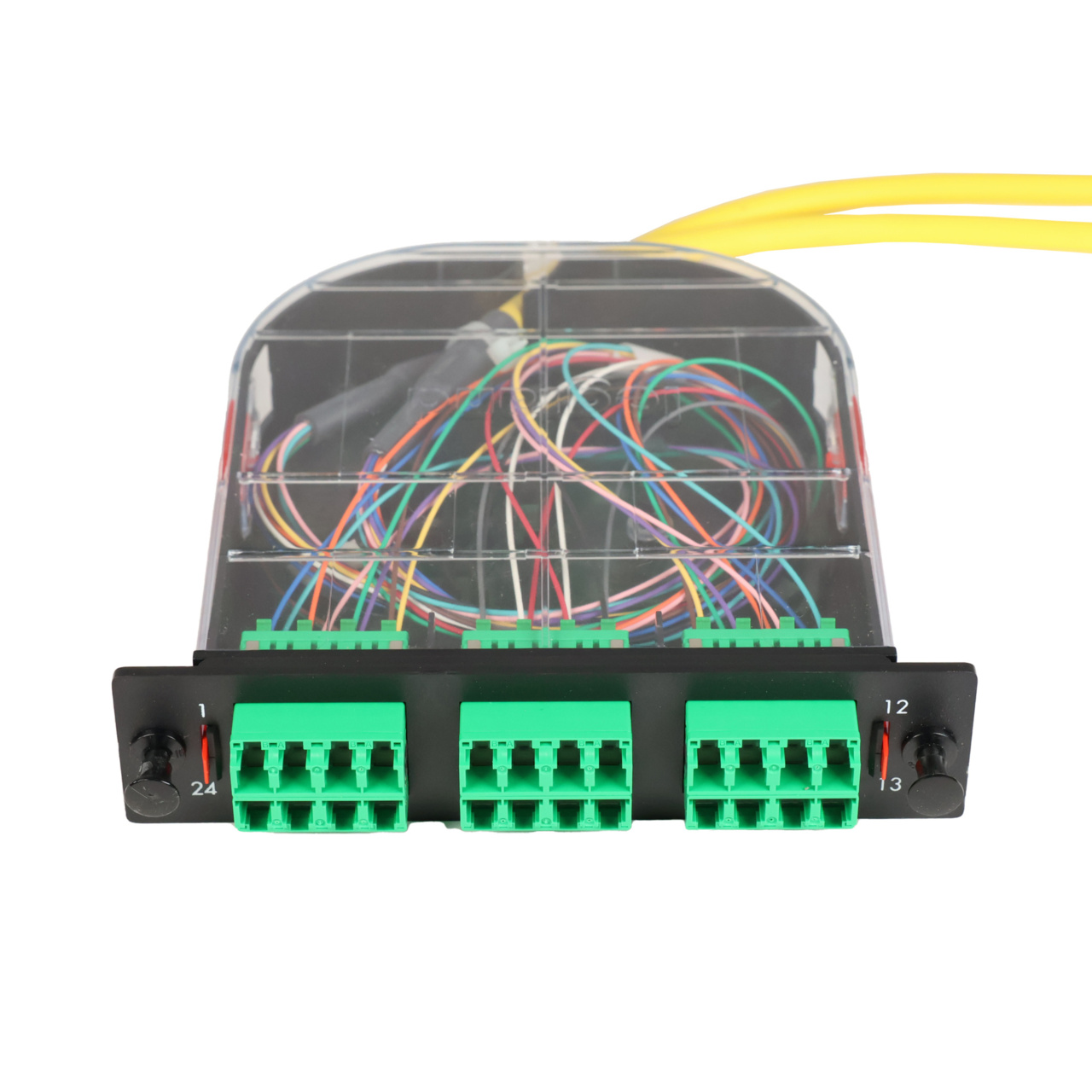

LM2 Cassette, 24 Fiber, LCA Quad (6), Single Mode (OS2) to 1 Meter, 900µm Tight Buffer Pigtail trimetric top

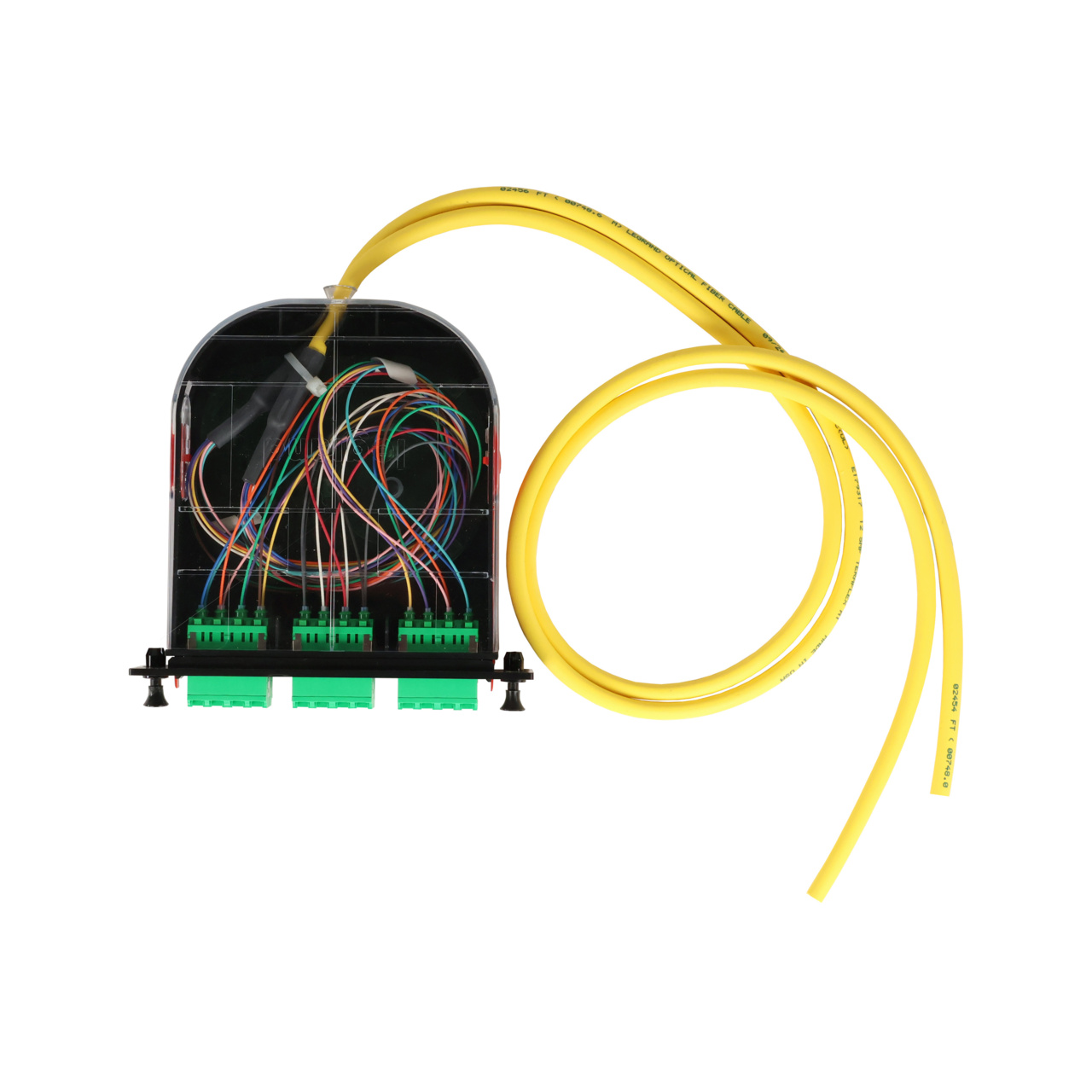

LM2 Cassette, 24 Fiber, LCA Quad (6), Single Mode (OS2) to 1 Meter, 900µm Tight Buffer Pigtail top with cable

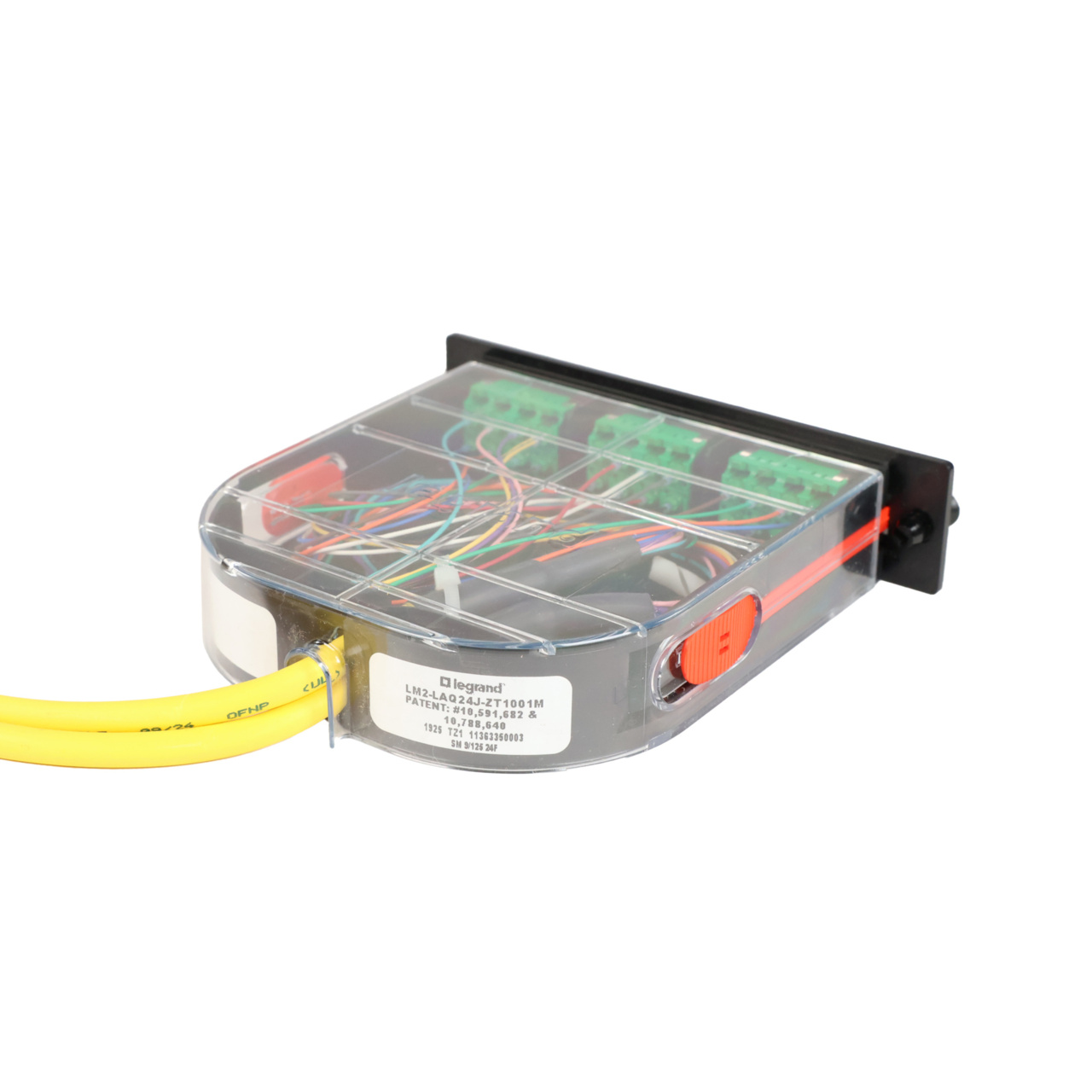

LM2 Cassette, 24 Fiber, LCA Quad (6), Single Mode (OS2) to 1 Meter, 900µm Tight Buffer Pigtail back

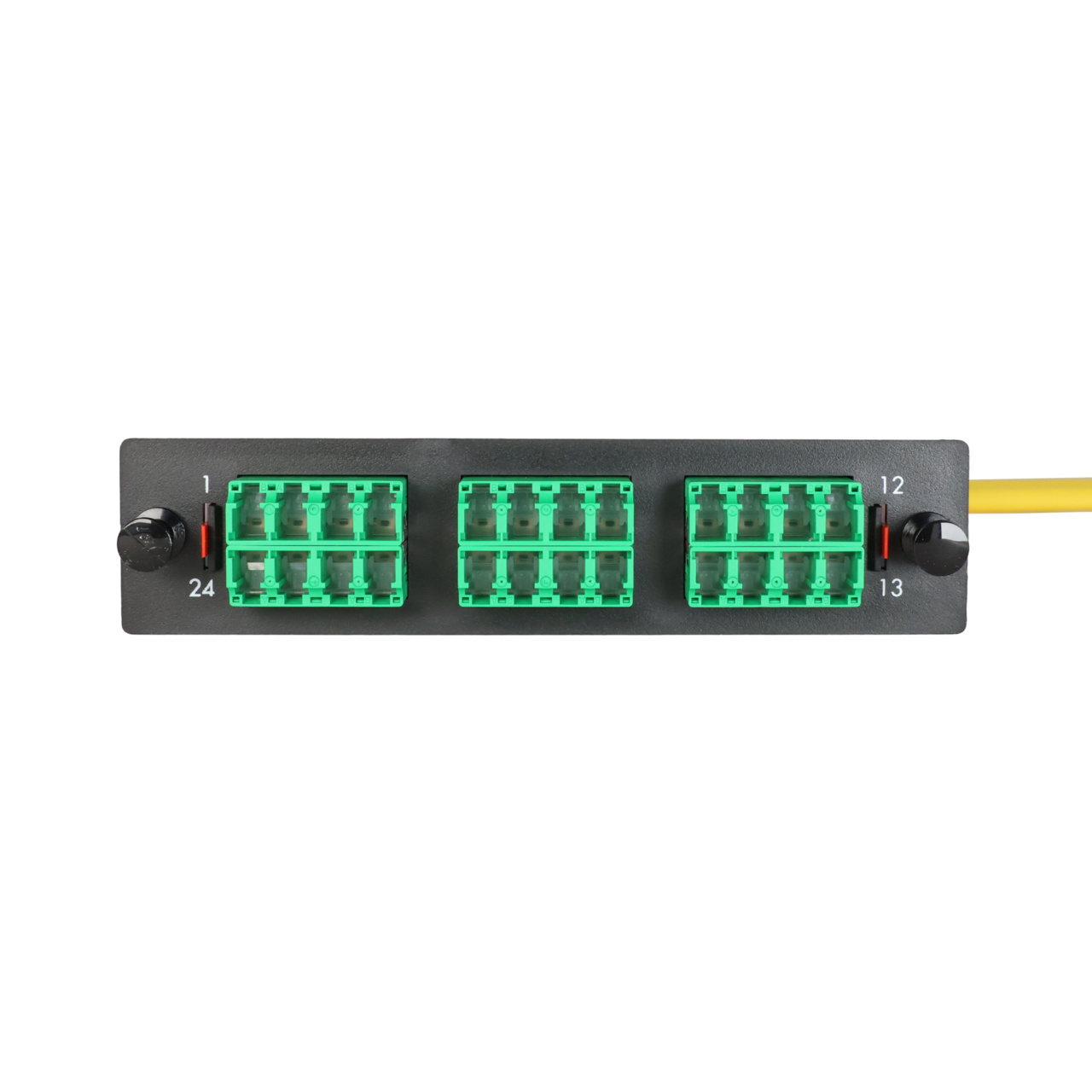

LM2 Cassette, 24 Fiber, LCA Quad (6), Single Mode (OS2) to 1 Meter, 900µm Tight Buffer Pigtail front

LM2 Cassette, 24 Fiber, LCA Quad (6), Single Mode (OS2) to 1 Meter, 900um Tight Buffer Pigtail

LM2-LAQ24J-ZT1001M Ortronics
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 15ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

The 24 Fiber LM2 LC Pigtail Cassette is designed to provide an efficient and organized solution for fiber optic terminations and splicing. With a focus on convenience, flexibility, and minimizing disruption to existing infrastructure, it offers a range of benefits that make it an ideal choice for many fiber optic installations. It can be used in data centers and telecom networks with existing fiber trunks or new multifiber cable. It comes pre-loaded with 24 LC pigtails to be mounted in a fiber patch panel or rack for easy access. This setup allows for reduced splicing errors and faster deployment.
Connector Type LC APC
  • LC APC
Fiber Type OS2
  • OS2
Pigtail Type Tight Buffer Pigtail
  • Tight Buffer Pigtail
Where To Buy
  • Send
  • Save as PDF
  • Add to favorites Remove from favorites
Features

Features

  • Streamlined Installation: Factory-prepared pigtails reduce the need for extensive field termination, simplifying deployment and minimizing installation time.
  • Optimized Performance – Minimal Loss: Fusion splicing at the installation point reduces connection loss by eliminating extra interfaces, preserving optical headroom and maintaining signal integrity across the network.
  • Fusion Splice Ready: The tight-buffered fiber design provides easy handling and precise fiber alignment, enabling consistent and straightforward splicing for individual terminations.
  • Front or Rear Mounting: Simplify installation by mounting from the front or rear of the enclosure panel
  • Maximize fiber capacity: Enable higher fiber density in a compact footprint by reducing the number of cassettes required per panel, optimizing rack space and simplifying large-scale deployments.
  WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov
Specifications

Specifications

General Info
Color Yellow
Type Pigtail Cassette
Material Thermoplastic
Application Sector Commercial, Data Center, Industrial
Product Line Ortronics
Country Of Origin Mexico
Features Pigtail, Shuttered
Warranty Type 5-Year
Standard RoHS;TIA-568.3-E;TIA-526-7
UPC Number 662875109297
Dimensions
Product Depth US 5.44 in
Product Height US 1.03 in
Product Length US 1.0 m
Product Width US 4.22 in
Product Weight US 1.0 lb
Listing Agencies / 3rd Party Agencies
CE Certified Yes
REACH Compliant Yes
Additional Information
Energy Savings No
RoHS Compliant Yes This product meets the material restrictions of Article 4 of the RoHS Directive (2011/65/EU), including Commission Delegated Directive 2015/863.
Technical Information
Alignment Sleeve Material Zircon
Connector 1 LCA Female
Connector 2 Blunt
Fiber Optic Cable Type OS2
Maximum Insertion Loss 0.3 dB
Polarity Type Universal
Typical Insertion Loss 0.1 dB
Number of Ports 24
Operating Temperature 0°-70°C, 32°-158°F
Operating Temperature Max 70 °C
Operating Temperature Min 0 °C
Performance Level/Tier Core
Rack Units 1 U
Return Loss -65 dB
Simplex/Duplex Quad
Single/Multimode Single-Mode
Storage Temperature -20° - 70° C
