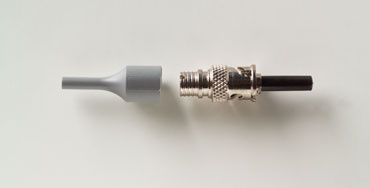

ST Field Terminating Anaerobic Connectors, Multimode, 900 micron buffer, individual pack

Legrand quick-cure, anaerobic epoxy field-installable connectors speed installation time. Strip the fiber, inject the adhesive into the connector, insert and scribe the fiber, then polish the connector end face to perfection for a high performance termination.

Connector Type ST

Fiber Type Multi-Mode OM4

Multi-Mode OM4
Single-Mode

Send
Save as PDF
Added to Favorites Go to favorites

Remove from favorites?

Something went wrong. Please try again later.

Features

Single mode or multimode: Simplistic offering reduces confusion with a one style connector that covers all multimode applications to include 62.5 micron, standard 50 micron, or laser optimized 50 micron for 10 Gigabit transmission, and single mode
Reliable performance: Secure the installation of fiber using an adhesive and primer for a secure, worry-free termination.
Minimal tools: A compact and economical tool kit contains all the common tools necessary to complete the termination.
Pre-radius LC: Minimal polishing and consistent end-face geometry resulting in more consistent optical performance

Specifications

General Info

Color	Metal
Type	Connector
Application Sector	Commercial, Data Center
Product Line	Ortronics
Country Of Origin	Mexico
Boot Color	Gray
Connector Color	Metal
UPC Number	662875607342

Dimensions

Product Height US	0.36 in
Product Width US	1.7 in

Technical Information

Connector Type	ST
Connectivity Footprint	Q-Series
Fiber Optic Cable Type	Multimode
Fiber Size	50/125
Ferrule Diameter	2.5 mm
Maximum Insertion Loss	0.3 dB
Typical Insertion Loss	0.1 dB
Return Loss	35 dB
Service Life	500 matings, < 0.2dB typical change
Splice Type	Anerobic
Temperature Rating	-40° - 75° C
