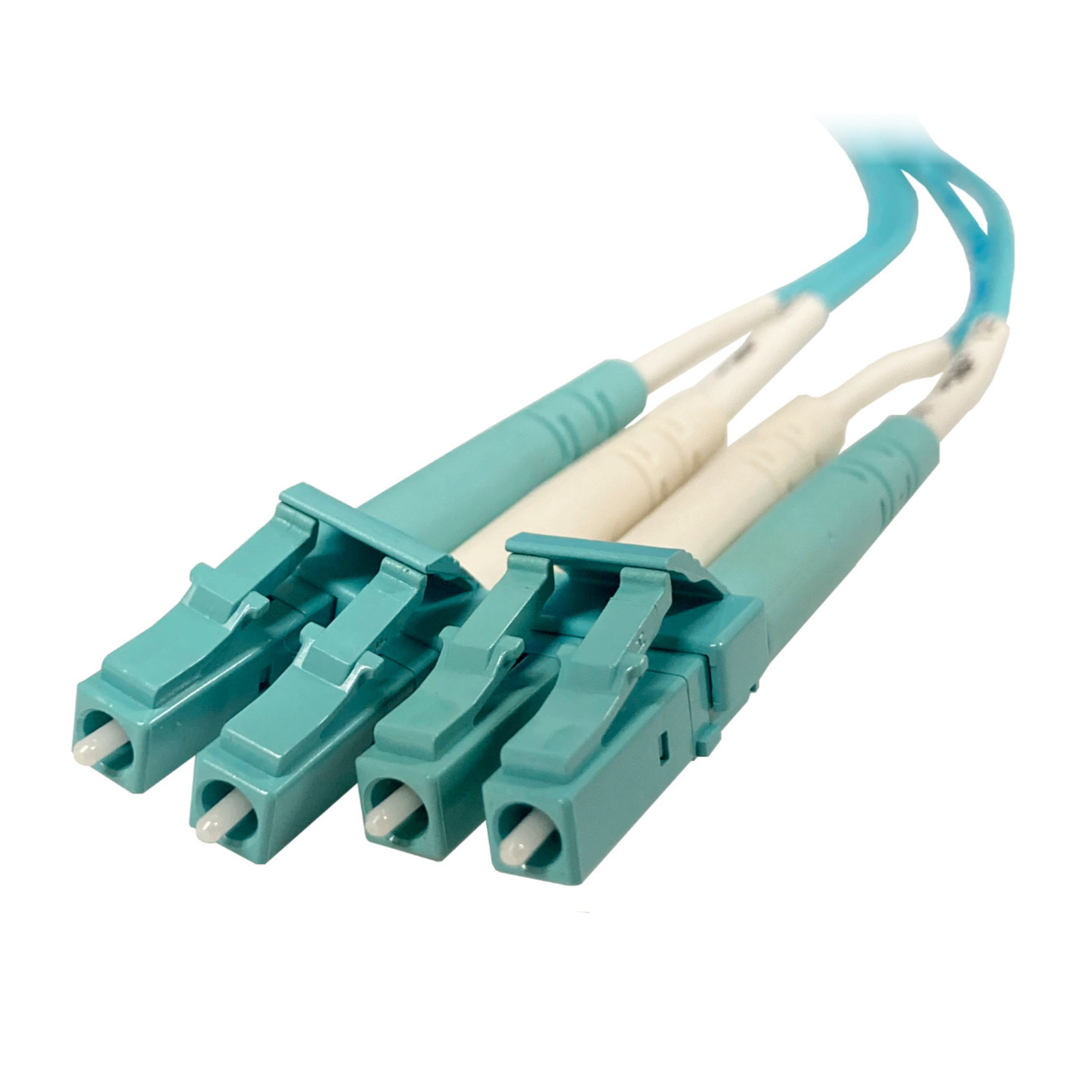

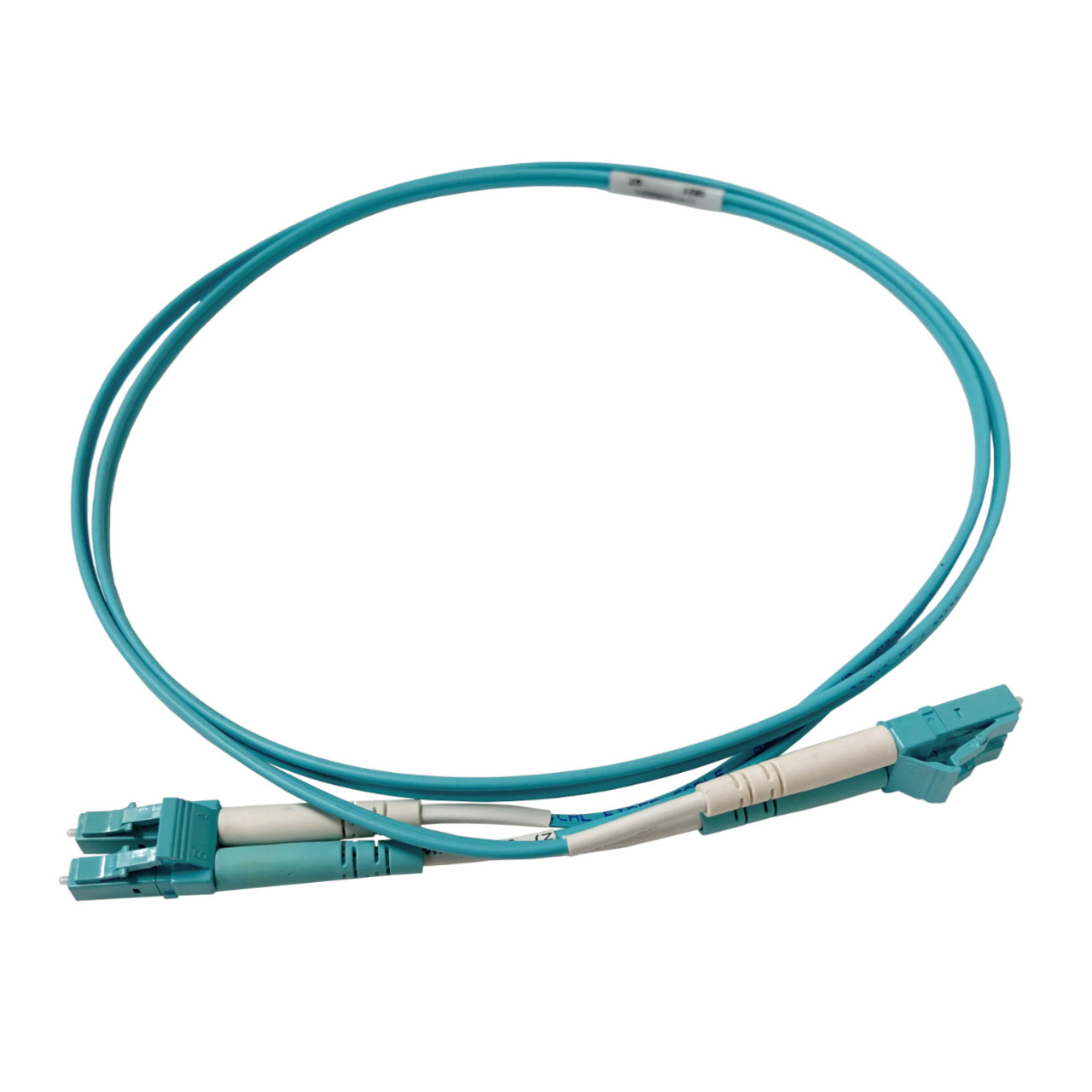

Infinium Quantum LC to LC Duplex Patch Cord, 2mm, OM4, Aqua, Plenum, 3 Meter

Pre-Configured Infinium Fiber Patch Cords are built to exceed industry standards for quality, performance, insertion and return loss. Available in three performance tiers Infinium Quantum, Infinium Ultra, and Infinium Core. Each tier is available in Single-mode and Multimode. The most common configurations are setup for easy selection and purchase

Length 3 m

Send
Save as PDF
Added to Favorites Go to favorites

Remove from favorites?

Something went wrong. Please try again later.

Features

Part of a Quantum – Low Loss System: When combined with Infinium Quantum Trunks and Infinium Quantum Cassettes
Flexible Polarity: A-B and is designed to pair with Infinium Universal Polarity Cassettes - Reconfigurable
Compliance: BAA or TAA Compliant
Dust caps pre-installed
Bend-insensitive fiber for optimal cable management and ease of installation
TIA Channel Compliant

Specifications

General Info

Color	Aqua
Type	Fiber Patch Cord
Application Sector	Commercial, Data Center
Product Line	Ortronics
Country Of Origin	Mexico
Boot Color	Black
Features	Reversible Polarity
Connector Color	Beige
Warranty Type	5-Year
Compliance	RoHS

Dimensions

Cable Length	3 m
Product Length US	3.0 in
Product Weight US	0.018 lb
Outside Diameter	2 mm

Technical Information

Cable Diameter	2 mm
Bend Radius	1.28 in
Cable Type	Fiber Optic
Connector 1	LC Male
Connector 2	LC Male
Fiber Optic Cable Type	OM4
Fiber Size	50/125
Number of Fibers	2
Ferrule Diameter	1.25 mm
Maximum Insertion Loss	0.1 dB
Typical Insertion Loss	0.1 dB
Jacket Material	PVC (Polyvinyl Chloride)
Jacket Rating	FT6 Rated, OFNP Rated
Jacket Application	Plenum Rated
Operating Temperature	-10°-50°C, 14°-122°F
Operating Temperature Max	122 °F
Operating Temperature Min	14 °F
Operating Humidity	0-90% RH (Non-Condensing)
Storage Humidity	15-85% RH (Non-Condensing)
Performance Level/Tier	Quantum
Return Loss	40 dB
Simplex/Duplex	Duplex
Single/Multimode	Multimode
Storage Temperature	5° - 140° F
