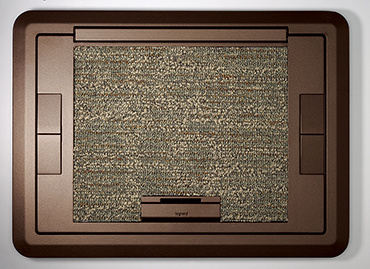

Discontinued - Evolution Series EFB6, EFB8, EFT10 Floor Box Surface Style Cover with Carpet Insert

EFB610CTCBZ Wiremold

Replaced by EFB6810CTCBZ

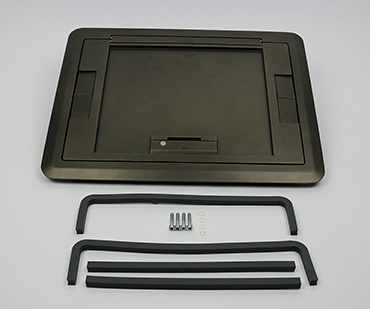

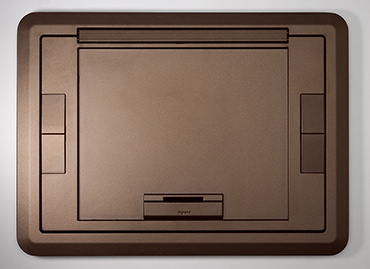

Die cast aluminum cover assembly designed to be used on top of the floor covering. Available in the following powder coated finishes:
black (BK), gray (GY), brass (BS), nickel (NK) and bronze (BZ). For use on Evolution Series 6-, 8- and 10-gang floor boxes (EFB6, EFB8 and EFB10). NOTE: Depth of recess area in plate is 1/4'' (6.35mm).

Send
Save as PDF
Added to Favorites Go to favorites

Remove from favorites?

Something went wrong. Please try again later.

Features

Die cast aluminum cover assembly designed to be used on top of the floor covering. Available in the following powder coated finishes:black (BK), gray (GY), brass (BS), nickel (NK) and bronze (BZ).
For use on Evolution Series 6-, 8- and 10-gang floor boxes (EFB6, EFB8 and EFB10). NOTE: Depth of recess area in plate is 1/4'' (6.35mm).

Specifications

General Info

Type	Floor Box
Application Sector	Commercial
Product Line	Wiremold
Country Of Origin	India
Replaced by Part Number	EFB6810CTCBZ
Construction	Assembled
Standard	cULus Listed Metallic Outlet Boxes: File E2961 Guide QCIT Meets Article 314.27(C) of NEC.
UPC Number	786564077466

Dimensions

Product Weight US

20.9 lb

Listing Agencies / 3rd Party Agencies

cULus ListingNumber	E2961
cULus Listed	Yes

Additional Information

Product Environmental Profile	Yes
RoHS Compliant	Yes		This product meets the material restrictions of Article 4 of the RoHS Directive (2011/65/EU), including Commission Delegated Directive 2015/863.
