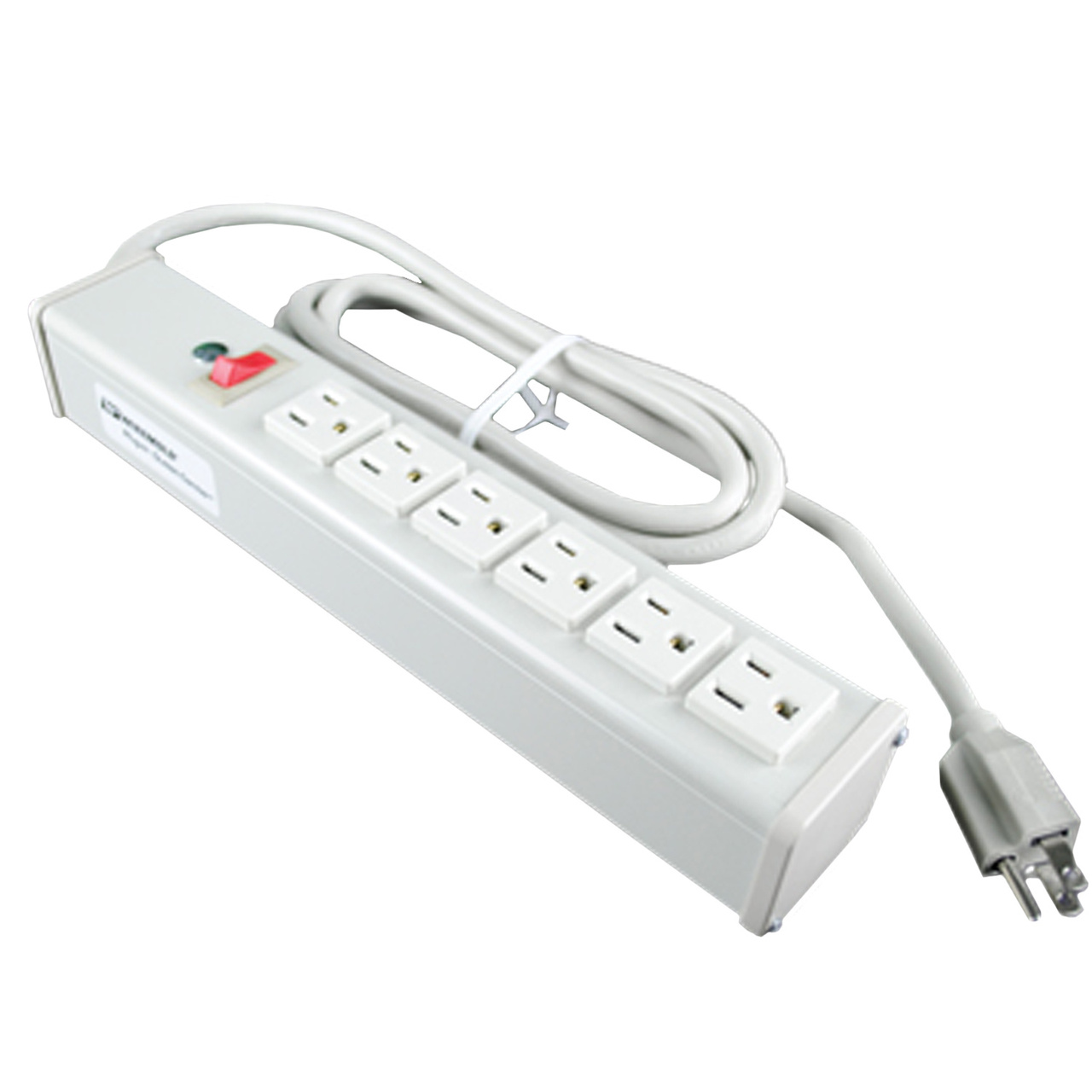

Plug-In Outlet Center Unit / 120V/15A/6 O/L /lighted switch/15' cord

Six outlets, putty white aluminum housing, 15A, lighted switch. 15' (4.6m) 14/3 SJT putty white cord with NEMA5-15 plug. Length 12 1/4'' (311mm). Receptacle center-to-center 1 1/4'' (32mm). Snap-on, slide-off mounting.

Send
Save as PDF
Added to Favorites Go to favorites

Remove from favorites?

Something went wrong. Please try again later.

Features

Six outlets, putty white aluminum housing, 15A, lighted switch. 15' (4.6m) 14/3 SJT putty white cord with NEMA5-15 plug. Length 12 1/4'' (311mm). Receptacle center-to-center 1 1/4'' (32mm). Snap-on, slide-off mounting.

Specifications

General Info

Color	White
Product Series	Plug-In Outlet Center
Type	PIOC
Material	Aluminum
Application Sector	Commercial, Residential
Product Line	Wiremold
Country Of Origin	Mexico
Features	Lighted Switch
Number of Receptacles	6
Warranty Type	1-Year from Installation or 2-Years from Day of Sale
Receptacle Type	Simplex
Standard	cULus Recognized: File E66421 Guide XBYS XUHT VZCA
UPC Number	786776047646

Dimensions

Product Length US	12.0 in
Product Width US	2.0 in
Product Weight US	3.0 lb
Receptacle Spacing	1.25 in

Listing Agencies / 3rd Party Agencies

cULus ListingNumber	E66421
cULus Listed	Yes

Trade Programs

USMCA

Yes

Additional Information

RoHS Compliant

Yes

This product meets the material restrictions of Article 4 of the RoHS Directive (2011/65/EU), including Commission Delegated Directive 2015/863.

Technical Information

Amperage	15 A
Cord Length	10 ft
Enclosure Type	Aluminum
Environmental Conditions	Dry interior locations
Mounting Type	Snap-on, Slide-off
NEMA Configuration Code	5-15P, 5-15R
Phase	Single
Voltage	125.0 V
Wiring Method	Cord-ended
