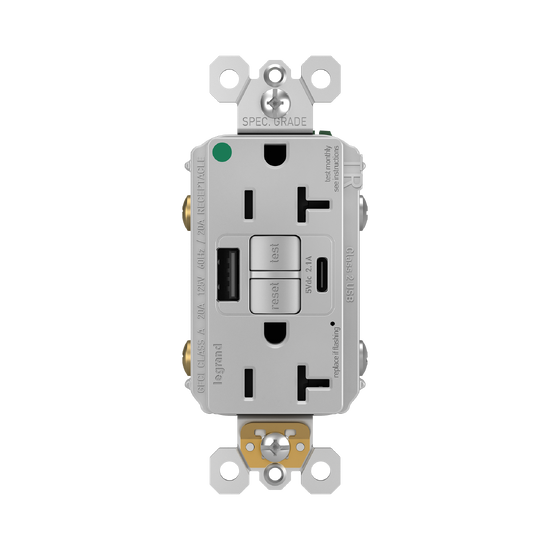

radiant® 20A Hospital-Grade Tamper-Resisant Self-Test GFCI USB Type-A/C Outlet

radiant® Hospital Grade GFCI USB Outlet with SafeLock® Protection, Type A/C, 20A, Tamper-Resistant, Gray

2097HGTRUSBACGRY radiant Collection

Provide superior safety and the convenience of built-in USB charging, with this first-of-its-kind outlet. Perfect for adding modern connectivity anywhere desired, even in the areas of hosptial and healthcare facilities where ground fault protection is required. This outlet makes it easy to see and reset electrical trips right where they happen, while also providing two USB connections for keeping phones or tablets charged, no bulky adapter necessary. Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.

Color Gray

Send
Save as PDF
Added to Favorites Go to favorites

Remove from favorites?

Something went wrong. Please try again later.

Features

First outlet of its kind to add USB connection to a GFCI outlet for easier charging, anywhere
Rated for use in hospitals and healthcare facilities, this outlet offers superior durability and reliable ground fault protection. Includes a trip indicator light and reset button on the outlet for easy, accessible troubleshooting
Includes traditional power outlets, as well as one USB Type-A and one USB Type-C port for convenient charging. Shares 2.0A charging capacity between both ports
Self-tests every three seconds, ensuring continuous ground fault protection for greater safety. Additionally, in case of test failure, the indicator light (red LED) will flash to signal there is an issue and the outlet should be replaced
Equipped with proven SafeLock™ feature which disconnects power to the outlet if any critical components are damaged for added protection
Prevents the insertion of foreign objects while maintaining a discreet, invisible effect with patented, black "invisi-shutter" system. Meets NEC® Tamper-Resistant requirements
Installs quickly thanks to a redesigned side wire cavity for easier access
Can provide ground fault protection to downstream outlets through feed-thru wiring
Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.

Specifications

General Info

Color	Gray
Finish	Matte
Application Sector	Commercial, Healthcare
Product Line	Pass & Seymour
Country Of Origin	China
Features	USB-A Charging, USB-C Charging
Wall Plate Included	No
Number of Receptacles	2
Outlet Type	GFCI, Hospital Grade, Self-Test, Tamper-Resistant, USB-Charging
Warranty Type	1-Year Limited Warranty
UPC Number	785007377620

Dimensions

Product Depth US	1.03 in
Product Height US	4.2 in
Product Width US	1.73 in

Listing Agencies / 3rd Party Agencies

CSA Listed	Yes
CSA File Number	CSA C22.2 No. 223, CSA C22.2 No. 42
cULus ListingNumber	E140596
cULus Listed	Yes

Additional Information

RoHS Compliant

Yes

This product meets the material restrictions of Article 4 of the RoHS Directive (2011/65/EU), including Commission Delegated Directive 2015/863.

Technical Information

Amperage	20 A
Connection Location	Back and Side
Wire Connection Type	Internal Pressure Plates, Screw Terminals
USB Amperage	2 A
Indoor/Outdoor	Indoor
Is Tamper-Resistant	Yes
Is Weather Resistant	No
Mounting Type	Box
NEMA Configuration Code	5-20R
Number of Gangs	1
Number of Poles	Double Pole
Number of USBs	2
Number of Wires	3
Voltage	125.0 V
Wattage	1875 W
